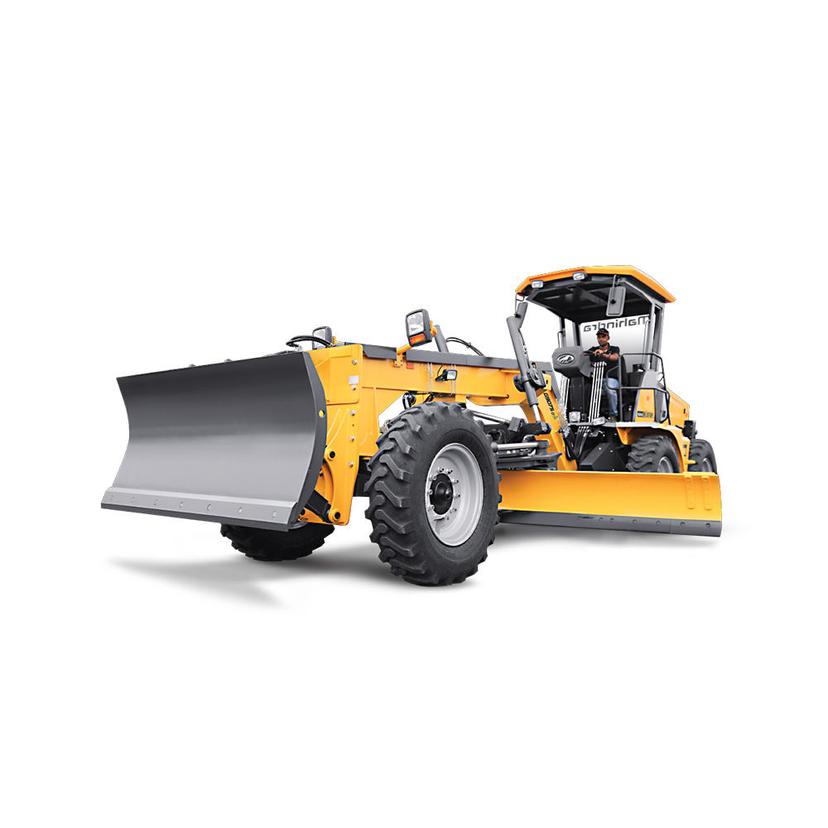

Mahindra G9075 Motor Grader
Mahindra Construction Equipment
The Mahindra G9075 Motor Grader excels in various construction and maintenance applications, delivering reliable performance and efficiency. With a top forward speed of 36.5 Kmph, it is ideal for medium-sized road construction projects, ensuring smooth and quick grading. Its 10000 mm turning radius makes it perfect for urban infrastructure maintenance, allowing precise maneuverability in tight spaces. Equipped with a powerful 74 Hp engine, the G9075 handles diverse soil conditions with ease, making it suitable for agricultural field grading and trenching. Its 37 kmph operating weight enhances stability for land leveling tasks, while the 8594 mm machine length provides comprehensive coverage for access roads and small-scale site preparations. The Mahindra G9075 combines strength and versatility, making it a valuable asset for various heavy-duty tasks.
Mahindra G9075 Motor Grader
Mahindra Construction Equipment
The Mahindra G9075 Motor Grader excels in various construction and maintenance applications, delivering reliable performance and efficiency. With a top forward speed of 36.5 Kmph, it is ideal for medium-sized road construction projects, ensuring smooth and quick grading. Its 10000 mm turning radius makes it perfect for urban infrastructure maintenance, allowing precise maneuverability in tight spaces. Equipped with a powerful 74 Hp engine, the G9075 handles diverse soil conditions with ease, making it suitable for agricultural field grading and trenching. Its 37 kmph operating weight enhances stability for land leveling tasks, while the 8594 mm machine length provides comprehensive coverage for access roads and small-scale site preparations. The Mahindra G9075 combines strength and versatility, making it a valuable asset for various heavy-duty tasks.
Product Description
The Mahindra G9075 Motor Grader excels in various construction and maintenance applications, deliver...
View the full brochure
Mahindra G9075 Motor Grader Comparison with Similar Motor Grader
Mahindra G9075 Motor Grader
Engine Brand
-
Engine Model
Model BS TREM IV CEV
Engine Power
74HP
Max Torque
345Nm
Rated Speed
2200rpm
Displacement
3.532L
Fuel Tank Capacity
100L
Transmission Type
Carraro 4WD Transmission
Number Of Gears (fwd/rev)
4/2
Max Travel Speed
36.5km/h
Service Brake Type
Foot operated hydraulically actuated oil immersed disc in middle axle
Parking Brake Type
Hand operated mechanically actuated Caliper Brakes on middle axle
Steering Type
Power Steering
Steering Angle
45 (inner) / 32 (outer)°
Oscillation Angle
10 Up / 15 Down°
Turning Radius
10m
Operating Weight
8.848Ton
Front Axle Load
2668kg
Rear Axle Load
6180kg
Hydraulic Flow Rate
54L/min
Hydraulic Pressure
200Bar
Overall Length
8.594m
Overall Width
2.021m
Overall Height
3.29m
Ground Clearance
467mm
Blade Length
2.6m
Blade Height
0.516m
Max Lift Above Ground
0.395m
Max Depth Of Cut
0.3m
Blade Tilt Angle
200 (LH) / 150 (RH)°
Blade Pitch Angle
40 Forward / 5 Backward°
Blade Rotation Angle
50°
Liugong CLG 414 BSIII Motor Grader
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Operating Weight
14.3Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°
Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°
FINE 585HD Motor Grader
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Operating Weight
9.495Ton
Front Axle Load
2710kg
Rear Axle Load
6750kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°
CASE 865C VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
