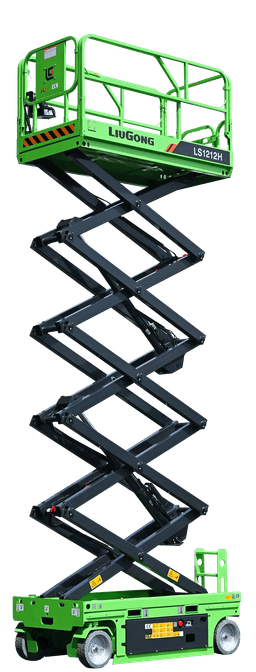

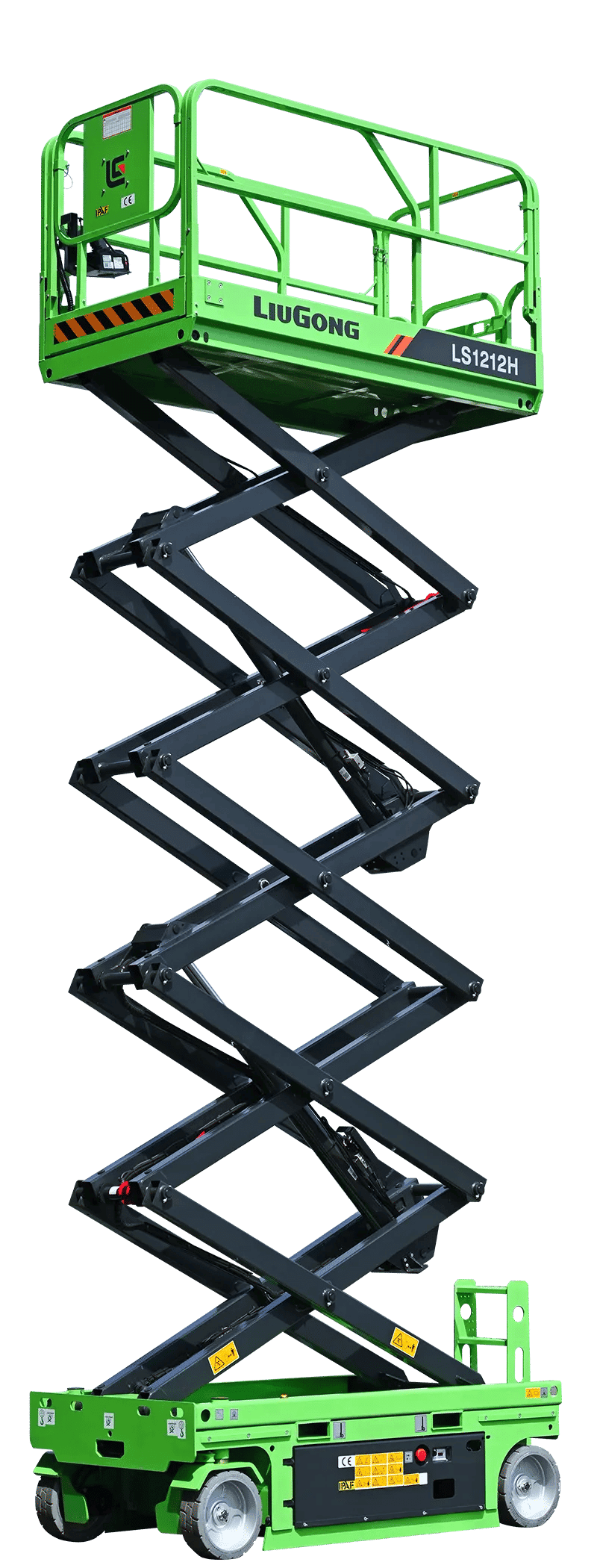

Liugong LS1212H Scissor Lift
The Electric Scissor Lift (12–14 m working height) is a safe, eco-friendly, and highly efficient solution for elevated work. Powered by a 24V battery system, it offers a 320 kg platform capacity, 25% gradeability, and non-marking solid tires for smooth indoor and outdoor operations. With a 14 m maximum working height, a 0.9 m extension deck, and tilt sensor safety system, it is ideal for modern industrial and maintenance applications.
Liugong LS1212H Scissor Lift
The Electric Scissor Lift (12–14 m working height) is a safe, eco-friendly, and highly efficient solution for elevated work. Powered by a 24V battery system, it offers a 320 kg platform capacity, 25% gradeability, and non-marking solid tires for smooth indoor and outdoor operations. With a 14 m maximum working height, a 0.9 m extension deck, and tilt sensor safety system, it is ideal for modern industrial and maintenance applications.
Product Description
The Electric Scissor Lift (12–14 m working height) is a safe, eco-friendly, and highly efficient sol...
Liugong LS1212H Scissor Lift Comparison with Similar Scissor Lift
Liugong LS1212H Scissor Lift
Battery Type
Lead Acid (Lithium Optional)
Battery Voltage / Capacity
24 V / 225 Ah
Charger Input Voltage
24 V
Charger Output / Type
24 V / 30 A
Charge Time (standard)
2 hours
Drive Type
-
Max Travel Speed (stowed)
2km/h
Travel Speed (raised)
0.4km/h
Gradeability
25 %
Lift Time (loaded)
59sec
Lower Time (loaded)
46sec
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.24m
Turning Radius (outside)
2.39m
Max Platform Capacity
320kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2 / 1persons
Operating Weight
3.020Ton
Hydraulic Oil Capacity
25L
Hydraulic Pressure
-
Overall Length (stowed)
2.49m
Overall Width
1.19m
Overall Height (rails Raised)
2.63m
Overall Height (rails Lowered)
2.07m
Wheelbase
1.88m
Ground Clearance (stowed)
0.10m
Max Platform Height
12m
Max Working Height
14m
Platform Size (l×w)
2.28 × 1.15m
Platform Extension Length
0.9m
Platform Railing Height
1.1m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
381 × 127
Tyre Type
Solid Non-Marking
Platform Control System
-
Sany SPS0608DC Scissor Lift
Battery Type
Lead-acid
Battery Voltage / Capacity
24V / 230Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric
Max Travel Speed (stowed)
4.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Max Platform Capacity
230kg
Extension Deck Capacity
113kg
Max Platform Occupants (in/out)
2/0persons
Operating Weight
1.25Ton
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.54m
Overall Width
0.81m
Overall Height (rails Raised)
2.12m
Overall Height (rails Lowered)
1.80m
Wheelbase
1.13m
Ground Clearance (stowed)
0.06m
Max Platform Height
5.60m
Max Working Height
7.60m
Platform Size (l×w)
1.3×0.72m
Platform Extension Length
-
Platform Railing Height
1.21m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø250mm×80mm
Tyre Type
Solid non-marking
Platform Control System
-
Sany SPS0608HD Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
2 × 12V / 155Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Max Platform Capacity
250kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/0persons
Operating Weight
1.36Ton
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.55m
Wheelbase
1.38m
Ground Clearance (stowed)
0.085m
Max Platform Height
5.8m
Max Working Height
7.8m
Platform Size (l×w)
1.71 × 0.74m
Platform Extension Length
0.6m
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-
Sany SPS0608MHA Scissor Lift
Battery Type
-
Battery Voltage / Capacity
4×6V/220Ah
Charger Input Voltage
AC100–240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Max Platform Capacity
230kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/1persons
Operating Weight
1.55Ton
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.83m
Wheelbase
1.38m
Ground Clearance (stowed)
0.07m
Max Platform Height
6.0m
Max Working Height
8.0m
Platform Size (l×w)
1.7×0.74m
Platform Extension Length
-
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-
Sany SPS0808HA Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
4×6V / 220Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
Front Wheel
Turning Radius (inside)
0.6m
Turning Radius (outside)
2.5m
Max Platform Capacity
250kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/0persons
Operating Weight
2.15Ton
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
2.49m
Overall Width
0.83m
Overall Height (rails Raised)
2.38m
Overall Height (rails Lowered)
1.89m
Wheelbase
1.87m
Ground Clearance (stowed)
0.1m
Max Platform Height
8.0m
Max Working Height
10.0m
Platform Size (l×w)
2.27 × 0.75m
Platform Extension Length
0.9m
Platform Railing Height
1.25m
Max Side Slope (lateral)
1.5
Max Slope (fore/aft)
-
Max Wind Speed (outdoor Use)
-
Tilt Sensor
-
Tires
-
Tyre Type
-
Platform Control System
-
