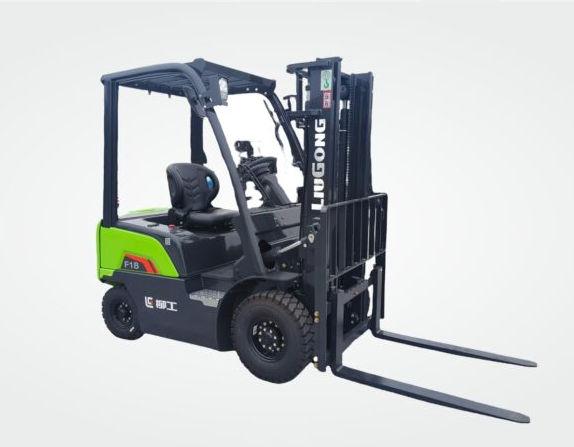

Liugong CPD15 Forklift
liugong
The Liugong CPD15 Electric Forklift is a compact and eco-friendly material handling solution with a 1500 kg lifting capacity and 500 mm load center. Powered by a 48V/150Ah battery and efficient Jiachen controller, it delivers smooth operations with lifting speeds up to 450 mm/s and travel speeds of 18 km/h. With its solid tires, narrow width, and 3000 mm mast height, this forklift is designed for reliable performance in warehouses, workshops, and distribution hubs.
Liugong CPD15 Forklift
liugong
The Liugong CPD15 Electric Forklift is a compact and eco-friendly material handling solution with a 1500 kg lifting capacity and 500 mm load center. Powered by a 48V/150Ah battery and efficient Jiachen controller, it delivers smooth operations with lifting speeds up to 450 mm/s and travel speeds of 18 km/h. With its solid tires, narrow width, and 3000 mm mast height, this forklift is designed for reliable performance in warehouses, workshops, and distribution hubs.
Liugong CPD15 Forklift specs & features
Product Description
The Liugong CPD15 Electric Forklift is a compact and eco-friendly material handling solution with a ...
Liugong CPD15 Forklift Comparison with Similar Forklift
Liugong CPD15 Forklift
Power Type
Electric
Drive Motor/ Engine Power
8kW
Battery Rating (standard)
48 / 150 V / Ah
Heavy Duty Battery
JiachenV / Ah
Electronic Controller / Motor Controller
17 / 18
Lifting Speed (loaded / Unloaded)
360 / 450mm/s
Lowering Speed (loaded / Unloaded)
500 / 490mm/s
Max. Drawbar Pull
6920kN
Max. Gradeability
15 / 20%
Minimum Turning Radius (as Listed)
1990mm

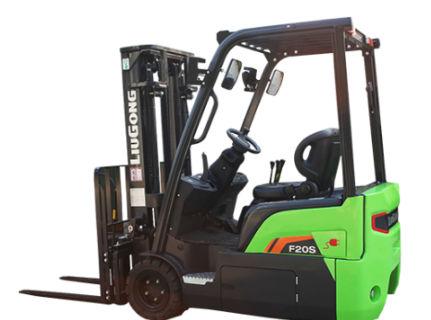

Liugong CPDS20 Forklift
Power Type
Electric
Drive Motor/ Engine Power
5 × 2kW
Battery Rating (standard)
76.8 / 150 V / Ah
Heavy Duty Battery
76.8 / 205–230 V / Ah
Electronic Controller / Motor Controller
AC
Lifting Speed (loaded / Unloaded)
400 / 600mm/s
Lowering Speed (loaded / Unloaded)
500 / 460mm/s
Max. Drawbar Pull
12kN
Max. Gradeability
20 / 25 %
Minimum Turning Radius (as Listed)
1600mm

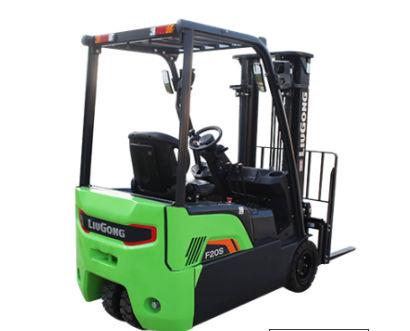

Liugong CPDS18 Forklift
Power Type
Electric
Drive Motor/ Engine Power
5 × 2kW
Battery Rating (standard)
76.8 / 150 V / Ah
Heavy Duty Battery
76.8 / 205–230 V / Ah
Electronic Controller / Motor Controller
AC
Lifting Speed (loaded / Unloaded)
430 / 600mm/s
Lowering Speed (loaded / Unloaded)
500 / 460mm/s
Max. Drawbar Pull
12kN
Max. Gradeability
20 / 25%
Minimum Turning Radius (as Listed)
1600mm
Liugong CPDS16 Forklift
Power Type
Electric
Drive Motor/ Engine Power
5 × 2kW
Battery Rating (standard)
76.8 / 150 V / Ah
Heavy Duty Battery
76.8 / 205–230 V / Ah
Electronic Controller / Motor Controller
AC
Lifting Speed (loaded / Unloaded)
450 / 600mm/s
Lowering Speed (loaded / Unloaded)
500 / 460mm/s
Max. Drawbar Pull
12kN
Max. Gradeability
22 / 30%
Minimum Turning Radius (as Listed)
1600mm

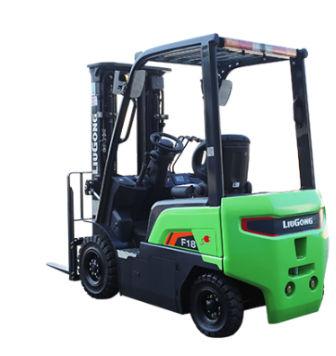

Liugong CPD18 Forklift
Power Type
Electric
Drive Motor/ Engine Power
8kW
Battery Rating (standard)
48 / 150V / Ah
Heavy Duty Battery
-
Electronic Controller / Motor Controller
Permanent magnet synchronization
Lifting Speed (loaded / Unloaded)
360 / 450mm/s
Lowering Speed (loaded / Unloaded)
500 / 490mm/s
Max. Drawbar Pull
15 / 20kN
Max. Gradeability
-
Minimum Turning Radius (as Listed)
1990mm
