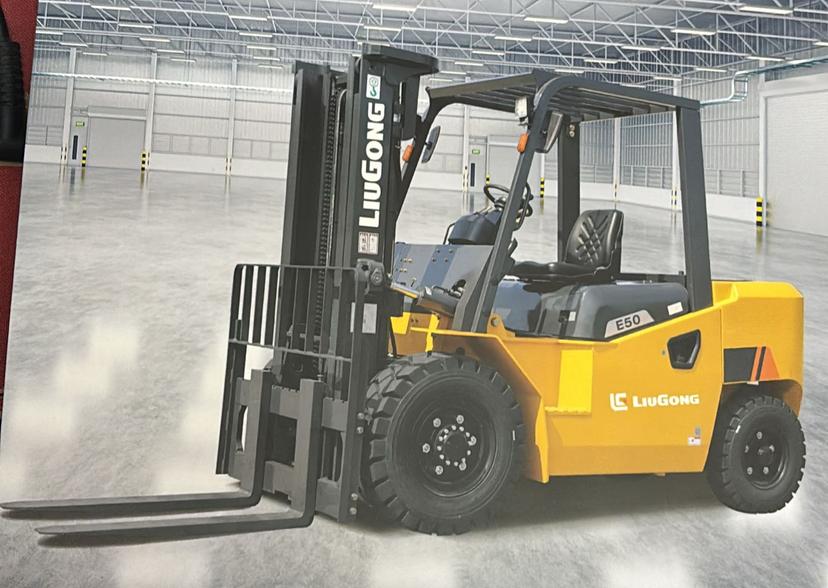

Liugong CPCD50 Forklift
The LiuGong CPCD50 is a 5-ton diesel forklift designed for maximum strength and reliability in heavy-duty material handling. Equipped with a 3.47L Xinchai engine delivering 60 kW at 2200 rpm and 300 Nm torque, it provides powerful lifting with a 4500 mm mast height and a strong 32 kN drawbar pull. With durable solid tires, a service weight of 6880 kg, and excellent 28% gradeability, this forklift is built for tough industrial and outdoor environments.
Liugong CPCD50 Forklift
The LiuGong CPCD50 is a 5-ton diesel forklift designed for maximum strength and reliability in heavy-duty material handling. Equipped with a 3.47L Xinchai engine delivering 60 kW at 2200 rpm and 300 Nm torque, it provides powerful lifting with a 4500 mm mast height and a strong 32 kN drawbar pull. With durable solid tires, a service weight of 6880 kg, and excellent 28% gradeability, this forklift is built for tough industrial and outdoor environments.
Product Description
The LiuGong CPCD50 is a 5-ton diesel forklift designed for maximum strength and reliability in heavy...
Liugong CPCD50 Forklift Comparison with Similar Forklift
Liugong CPCD50 Forklift
Battery Rating (standard)
-
Power Type
Diesel
Drive Motor/ Engine Power
60kW
Rated Power
2200rpm
Displacement
3.47l
Cylinders
4
Emission Compliance
China III
Heavy Duty Battery
-
Electronic Controller / Motor Controller
-
Transmission Type
-
Travel Speed (loaded / Unloaded)
24 / 25km/h
Lifting Speed (loaded / Unloaded)
500 / 530mm/s
Lowering Speed (loaded / Unloaded)
520 / 480mm/s
Max. Drawbar Pull
32kN
Max. Gradeability
20 / 28%
Service Brake
Foot / Hyd
Parking Brake
Hand / Mech
Steering Type
-
Minimum Turning Radius (as Listed)
-
Turning Radius (min. Outside, As Listed)
2930mm
Load Capacity / Rated Load
5000kg
Load Center
500mm
Service Weight / Self Weight
6880kg
Weight Distribution — With Load (front / Rear)
10610 / 1265kg
Weight Distribution — Without Load (front / Rear)
3040 / 3760kg
Hydraulic Motor
-
Operating Pressure (attachments)
-
Fork Dimensions (l × W × T)
1070 × 150 × 50mm
Fork Length
1070mm
Fork Thickness
50mm
Free Lift / Free Fork Height
1339mm
Mast / Lift Height (standard / Options)
4500mm
Height — Overhead Guard
2350mm
Length To Fork Face / Overall Length
3230mm
Overall Width / Chassis Width Front
1493mm
Wheelbase
2100mm
Ground Clearance (min)
165mm
Tire Type
Solid
Tyre Size — Front
300-15-18PR
Tyre Size — Rear
7.00-12-12PR
Tread Width (front / Rear)
1176 / 1190mm
Liugong CPD60-EH Forklift
Battery Rating (standard)
308 / 228 V / Ah
Power Type
Electric
Drive Motor/ Engine Power
58kW
Rated Power
-
Displacement
-
Cylinders
-
Emission Compliance
-
Heavy Duty Battery
-
Electronic Controller / Motor Controller
Electrical control, motor type
Transmission Type
-
Travel Speed (loaded / Unloaded)
25 / 26km/h
Lifting Speed (loaded / Unloaded)
510 / 530mm/s
Lowering Speed (loaded / Unloaded)
450 / 420mm/s
Max. Drawbar Pull
30 / 25kN
Max. Gradeability
-
Service Brake
Foot / Hyd
Parking Brake
Hand / Mech
Steering Type
-
Minimum Turning Radius (as Listed)
-
Turning Radius (min. Outside, As Listed)
3300mm
Load Capacity / Rated Load
6000kg
Load Center
600mm
Service Weight / Self Weight
9280kg
Weight Distribution — With Load (front / Rear)
13634 / 1721kg
Weight Distribution — Without Load (front / Rear)
4486 / 4794kg
Hydraulic Motor
Work pump motor power: 28 + 28 kW
Operating Pressure (attachments)
-
Fork Dimensions (l × W × T)
1220 × 150 × 65mm
Fork Length
1220mm
Fork Thickness
65mm
Free Lift / Free Fork Height
195mm
Mast / Lift Height (standard / Options)
3000mm
Height — Overhead Guard
2428mm
Length To Fork Face / Overall Length
3500mm
Overall Width / Chassis Width Front
2020mm
Wheelbase
2300mm
Ground Clearance (min)
200mm
Tire Type
Pneumatic
Tyre Size — Front
8.25-15-14PR
Tyre Size — Rear
8.25-15-14PR
Tread Width (front / Rear)
1474 / 1730mm
Liugong CPD70-EH Forklift
Battery Rating (standard)
308 / 228 V / Ah
Power Type
Electric
Drive Motor/ Engine Power
58kW
Rated Power
-
Displacement
-
Cylinders
-
Emission Compliance
-
Heavy Duty Battery
-
Electronic Controller / Motor Controller
Permanent magnet synchronization
Transmission Type
-
Travel Speed (loaded / Unloaded)
25 / 26km/h
Lifting Speed (loaded / Unloaded)
510 / 530mm/s
Lowering Speed (loaded / Unloaded)
450 / 400mm/s
Max. Drawbar Pull
28 / 25kN
Max. Gradeability
-
Service Brake
Foot / Hyd
Parking Brake
Hand / Mech
Steering Type
-
Minimum Turning Radius (as Listed)
-
Turning Radius (min. Outside, As Listed)
3300mm
Load Capacity / Rated Load
7000kg
Load Center
600mm
Service Weight / Self Weight
9880kg
Weight Distribution — With Load (front / Rear)
15119 / 1836kg
Weight Distribution — Without Load (front / Rear)
4459 / 5421kg
Hydraulic Motor
Work pump motor power: 28 + 28 kW
Operating Pressure (attachments)
-
Fork Dimensions (l × W × T)
1220 × 150 × 65mm
Fork Length
1220mm
Fork Thickness
65mm
Free Lift / Free Fork Height
195mm
Mast / Lift Height (standard / Options)
3000mm
Height — Overhead Guard
2428mm
Length To Fork Face / Overall Length
3500mm
Overall Width / Chassis Width Front
2020mm
Wheelbase
2300mm
Ground Clearance (min)
200mm
Tire Type
Pneumatic
Tyre Size — Front
8.25-15-14PR
Tyre Size — Rear
8.25-15-14PR
Tread Width (front / Rear)
1474 / 1730mm
Liugong CPD80-EH Forklift
Battery Rating (standard)
308 / 228 V / Ah
Power Type
Electric
Drive Motor/ Engine Power
58kW
Rated Power
-
Displacement
-
Cylinders
-
Emission Compliance
-
Heavy Duty Battery
-
Electronic Controller / Motor Controller
-
Transmission Type
-
Travel Speed (loaded / Unloaded)
25 / 26km/h
Lifting Speed (loaded / Unloaded)
510 / 530mm/s
Lowering Speed (loaded / Unloaded)
450 / 400mm/s
Max. Drawbar Pull
27 / 25kN
Max. Gradeability
-
Service Brake
Foot / Hyd
Parking Brake
Hand / Mech
Steering Type
-
Minimum Turning Radius (as Listed)
-
Turning Radius (min. Outside, As Listed)
3533mm
Load Capacity / Rated Load
8000kg
Load Center
600mm
Service Weight / Self Weight
10860kg
Weight Distribution — With Load (front / Rear)
16582 / 2533kg
Weight Distribution — Without Load (front / Rear)
4932 / 6468kg
Hydraulic Motor
Work pump motor power: 28 + 28 kW
Operating Pressure (attachments)
-
Fork Dimensions (l × W × T)
1220 × 150 × 70mm
Fork Length
1220mm
Fork Thickness
70mm
Free Lift / Free Fork Height
195mm
Mast / Lift Height (standard / Options)
3000mm
Height — Overhead Guard
2428mm
Length To Fork Face / Overall Length
3561mm
Overall Width / Chassis Width Front
2020mm
Wheelbase
2300mm
Ground Clearance (min)
200mm
Tire Type
Pneumatic
Tyre Size — Front
8.25-15-16PR
Tyre Size — Rear
8.25-15-16PR
Tread Width (front / Rear)
1474 / 1730mm
Liugong CPD30-E2JL-M Forklift
Battery Rating (standard)
80 / 280, 405, 450 V / Ah
Power Type
Electric
Drive Motor/ Engine Power
20kW
Rated Power
-
Displacement
-
Cylinders
-
Emission Compliance
-
Heavy Duty Battery
-
Electronic Controller / Motor Controller
AC
Transmission Type
-
Travel Speed (loaded / Unloaded)
15 / 16km/h
Lifting Speed (loaded / Unloaded)
350 / 430mm/s
Lowering Speed (loaded / Unloaded)
500 / 480mm/s
Max. Drawbar Pull
15kN
Max. Gradeability
17 / 20%
Service Brake
-
Parking Brake
-
Steering Type
-
Minimum Turning Radius (as Listed)
-
Turning Radius (min. Outside, As Listed)
2150mm
Load Capacity / Rated Load
3000kg
Load Center
500mm
Service Weight / Self Weight
4371kg
Weight Distribution — With Load (front / Rear)
6662 / 2000kg
Weight Distribution — Without Load (front / Rear)
709 / 2371kg
Hydraulic Motor
Travel / Work Pump: AC
Operating Pressure (attachments)
-
Fork Dimensions (l × W × T)
1070 × 122 × 45mm
Fork Length
1070mm
Fork Thickness
45mm
Free Lift / Free Fork Height
1003mm
Mast / Lift Height (standard / Options)
4500mm
Height — Overhead Guard
2150mm
Length To Fork Face / Overall Length
2720mm
Overall Width / Chassis Width Front
1225mm
Wheelbase
1760mm
Ground Clearance (min)
135mm
Tire Type
Pneumatic tire
Tyre Size — Front
28 × 9-15-14PR
Tyre Size — Rear
6.5-10-10PR
Tread Width (front / Rear)
1005 / 980mm
