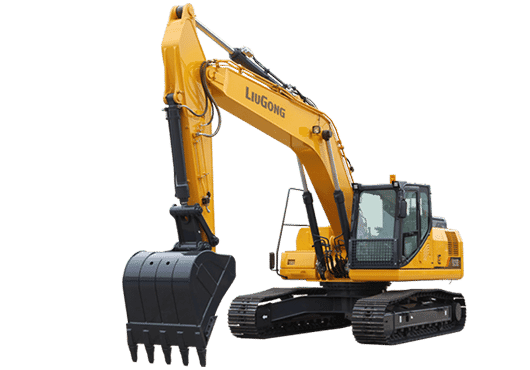

LiuGong 922E α (Alpha) Crawler Excavator
LiuGong India Pvt Ltd
Delhi
The LiuGong 922E α (Alpha) Crawler Excavator is a high-performance machine built for demanding earthmoving and excavation tasks. Powered by a robust 140 HP Cummins 6BT5.9 engine, it delivers exceptional torque of 571 Nm and a powerful digging force, making it ideal for mining, construction, and infrastructure projects. With a bucket capacity of up to 1.0 m³ and an operating weight of 21.7 tons, it handles heavy loads with ease. The advanced hydraulic system offers a total flow of 467.5 LPM, ensuring smooth and responsive operations. Its 70% gradeability and strong drawbar pull of 189 kN provide stability on steep terrains. Designed with operator comfort and fuel efficiency in mind, the 922E α is a reliable and versatile choice for high-productivity applications.
LiuGong 922E α (Alpha) Crawler Excavator
LiuGong India Pvt Ltd
Delhi
The LiuGong 922E α (Alpha) Crawler Excavator is a high-performance machine built for demanding earthmoving and excavation tasks. Powered by a robust 140 HP Cummins 6BT5.9 engine, it delivers exceptional torque of 571 Nm and a powerful digging force, making it ideal for mining, construction, and infrastructure projects. With a bucket capacity of up to 1.0 m³ and an operating weight of 21.7 tons, it handles heavy loads with ease. The advanced hydraulic system offers a total flow of 467.5 LPM, ensuring smooth and responsive operations. Its 70% gradeability and strong drawbar pull of 189 kN provide stability on steep terrains. Designed with operator comfort and fuel efficiency in mind, the 922E α is a reliable and versatile choice for high-productivity applications.
Product Description
The LiuGong 922E α (Alpha) Crawler Excavator is a high-performance machine built for demanding earth...
View the full brochure
LiuGong 922E α (Alpha) Crawler Excavator Comparison with Similar Crawler Excavator

LiuGong 922E α (Alpha) Crawler Excavator
Engine Brand
CUMMINS
Engine Model
6BT5.9
Engine Power
140HP
Max Torque
571Nm
Rated Speed
2000rpm
Displacement
5.9L
Fuel Tank Capacity
420L
Hydraulic Flow Rate
467.5L/min
Hydraulic Pressure (implement Circuit)
365.1kgf/cm²
Hydraulic Pressure (swing Circuit)
290.6kgf/cm²
Hydraulic Pressure (travel Circuit)
349.8kgf/cm²
Hydraulic Pressure (pilot Circuit)
39.8kgf/cm²
Ground Pressure (600mm Track)
0.489kgf/cm²
Operating Weight
21.7Ton
Max Digging Depth
6.198m
Max Reach At Ground
9.322m
Max Dumping Height
7.163m
Bucket Capacity
1.0m³
Bucket Breakout Force
16112kgf
Arm Crowd Force
13664kgf
Overall Length
9.28m
Overall Width
2.99m
Overall Height
-
Ground Clearance
-

Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
38Ton
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-

XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
17.5Ton
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm

Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
62.6Ton
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm

Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
