LiuGong 9035E Mini Excavator
LiuGong India Pvt Ltd
Delhi

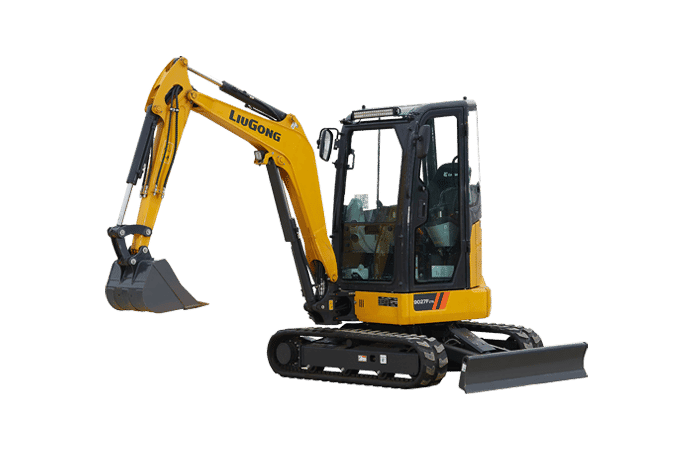

The **LiuGong 9035E Mini Excavator** is a compact yet powerful machine designed to deliver maximum productivity in confined job sites. Powered by a reliable **Yanmar 3TNV88-BPLY engine** generating **28.4 hp**, it offers smooth and efficient operation with minimal fuel consumption. With an **operating weight of up to 3,980 kg**, this mini excavator features a robust hydraulic system with **90 L/min flow rate** and a main relief pressure of **24.5 MPa**, ensuring excellent digging performance. It delivers a **digging depth of 3,080 mm**, **dumping height of 3,470 mm**, and impressive **bucket and arm forces of 30 kN and 22 kN** respectively. The compact design, along with its precise controls and 4.2 km/h travel speed, makes it ideal for construction, landscaping, and urban infrastructure projects.
LiuGong 9035E Mini Excavator
LiuGong India Pvt Ltd
Delhi
The **LiuGong 9035E Mini Excavator** is a compact yet powerful machine designed to deliver maximum productivity in confined job sites. Powered by a reliable **Yanmar 3TNV88-BPLY engine** generating **28.4 hp**, it offers smooth and efficient operation with minimal fuel consumption. With an **operating weight of up to 3,980 kg**, this mini excavator features a robust hydraulic system with **90 L/min flow rate** and a main relief pressure of **24.5 MPa**, ensuring excellent digging performance. It delivers a **digging depth of 3,080 mm**, **dumping height of 3,470 mm**, and impressive **bucket and arm forces of 30 kN and 22 kN** respectively. The compact design, along with its precise controls and 4.2 km/h travel speed, makes it ideal for construction, landscaping, and urban infrastructure projects.
Product Description
The **LiuGong 9035E Mini Excavator** is a compact yet powerful machine designed to deliver maximum p...
View the full brochure
LiuGong 9035E Mini Excavator Comparison with Similar Mini Excavators
LiuGong 9035E Mini Excavator
Max Digging Depth
3.08m
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.98Ton
Max Reach At Ground
5.27m
Max Digging Height
4.71m
Max Dumping Height
3.47m
Bucket Capacity
-
Bucket Breakout Force
3000kgf
Arm Crowd Force
2200kgf
Overall Height
2.5m
Ground Clearance
580mm
Overall Length
4.81m
Engine Brand
Yanmar
Engine Model
3TNV88-BPLY
Engine Power
28.4HP
Max Torque
107Nm
Rated Speed
2400rpm
Displacement
1.6L
Fuel Tank Capacity
40 L
Hydraulic Flow Rate
90L/min
Empower Mini Excavator
Max Digging Depth
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Height
-
Ground Clearance
-
Overall Length
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Tata Hitachi ZAXIS 33U Mini Excavator
Max Digging Depth
3.13m
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
170kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.65Ton
Max Reach At Ground
5.04m
Max Digging Height
-
Max Dumping Height
3.31m
Bucket Capacity
0.09m³
Bucket Breakout Force
-
Arm Crowd Force
1499kgf
Overall Height
2.47m
Ground Clearance
270mm
Overall Length
4.45m
Engine Brand
Yanmar
Engine Model
EDM-3TNV88
Engine Power
28.41HP
Max Torque
105.5Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Hydraulic Flow Rate
2×38.4L/min
Kobelco SK30SR Mini Excavator
Max Digging Depth
-
Hydraulic Pressure (implement Circuit)
234.6 kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.57 / 3.41 Ton
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
0.12m³
Bucket Breakout Force
2,823.4 kgf
Arm Crowd Force
1,947.9 / 1,682.0 kgf
Overall Height
-
Ground Clearance
-
Overall Length
-
Engine Brand
YANMAR
Engine Model
3TNV82A-8
Engine Power
24.27 HP
Max Torque
79.4Nm
Rated Speed
2400rpm
Displacement
-
Fuel Tank Capacity
42L
Hydraulic Flow Rate
96.0L/min
CAT 303.5 CR Mini Excavator
Max Digging Depth
3.1m
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.19Ton
Max Reach At Ground
5.38m
Max Digging Height
5.02m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Height
2.48m
Ground Clearance
310mm
Overall Length
4.85m
Engine Brand
Caterpillar
Engine Model
C1.7
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.7L
Fuel Tank Capacity
45L
Hydraulic Flow Rate
98.4L/min
