Liugong 836N Wheel Loader
LiuGong India Pvt Ltd
Haryana

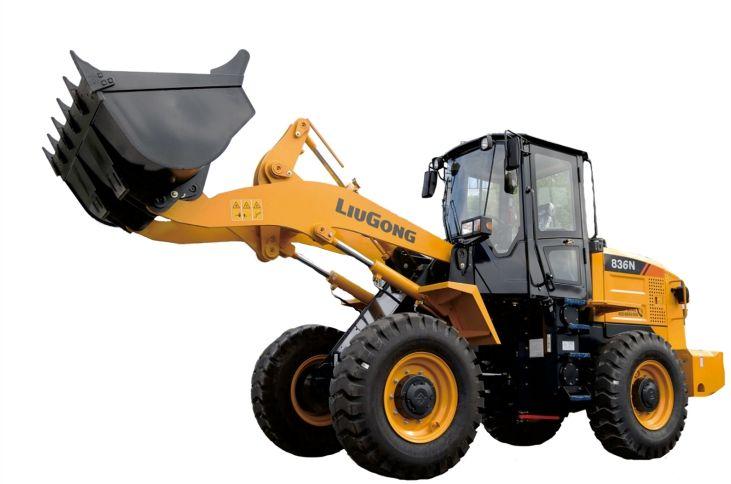

The LiuGong 836N Wheel Loader is designed for high performance and efficiency across various heavy-duty applications. Equipped with a CEV Stage IV compliant Ashok Leyland H6C416022 engine delivering 160 hp, it offers robust power for demanding tasks. The loader features versatile bucket capacities—3.2 m³ for coal, 2.2 m³ for GP, and 1.6 m³ for iron ore—catering to different material handling needs. With a rated load of 3,600 kg and a tipping load of 7,200 kg, it excels in both productivity and stability. The loader’s total cycle time of 9 seconds ensures quick operations. Operator comfort is enhanced with the well-designed AC cab, and ground-level serviceability minimizes downtime with easy access to maintenance points. The LiuGong 836N combines power, efficiency, and comfort for optimal performance.
Liugong 836N Wheel Loader
LiuGong India Pvt Ltd
Haryana
The LiuGong 836N Wheel Loader is designed for high performance and efficiency across various heavy-duty applications. Equipped with a CEV Stage IV compliant Ashok Leyland H6C416022 engine delivering 160 hp, it offers robust power for demanding tasks. The loader features versatile bucket capacities—3.2 m³ for coal, 2.2 m³ for GP, and 1.6 m³ for iron ore—catering to different material handling needs. With a rated load of 3,600 kg and a tipping load of 7,200 kg, it excels in both productivity and stability. The loader’s total cycle time of 9 seconds ensures quick operations. Operator comfort is enhanced with the well-designed AC cab, and ground-level serviceability minimizes downtime with easy access to maintenance points. The LiuGong 836N combines power, efficiency, and comfort for optimal performance.
Product Description
The LiuGong 836N Wheel Loader is designed for high performance and efficiency across various heavy-d...
View the full brochure
Liugong 836N Wheel Loader Comparison with Similar Wheel Loader
Liugong 836N Wheel Loader
Engine Brand
Ashok Leyland
Engine Model
H6C416022
Engine Power
118kW
Max Torque
650Nm
Rated Speed
2200 rpm
Displacement
5.76L
Fuel Tank Capacity
165L
Hydraulic Oil Capacity
103L
Transmission Type
Powershift
Number Of Gears (f/r)
2 / 1
Max Travel Speed (f)
38km/h
Max Travel Speed (r)
17km/h
Service Brake Type
Air over Hydraulic (4 Wheel, Independent Circuit)
Parking Brake Type
Drum Brake, Mechanical Actuation
Steering Type
Articulation
Steering Angle
±38 °
Oscillation Angle
±11 °
Turning Radius
5.75 m
Operating Weight
11.66kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
197 L/min
Hydraulic Pressure
210 Bar
Overall Length
7.4 m
Overall Width
2.5m
Overall Height
3.34m
Ground Clearance
318mm
Max Dump Height
2.95m
Max Load Over Height
3.998m
Max Reach At Full Height
1.06m
Loader Bucket Capacity
2.2 m³
Loader Arm Breakout Force
120kN
Front Axle Oscillation
±11 °
Battery Voltage
24V
Standard Tires (front/rear)
17.5 – 25 – 16PR
Liugong 856HE Max Electric Wheel Loader
Engine Brand
CATL
Engine Model
LFP
Engine Power
160kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
Planetary, power shift
Number Of Gears (f/r)
2/1
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
13km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
Articulated
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
21000kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
100L/min
Hydraulic Pressure
250Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Max Dump Height
-
Max Load Over Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
2.7–5.6m³
Loader Arm Breakout Force
-
Front Axle Oscillation
-
Battery Voltage
618V
Standard Tires (front/rear)
-
Liugong 870H Wheel Loader
Engine Brand
Cummins
Engine Model
QSL9.3
Engine Power
190kW
Max Torque
1187Nm
Rated Speed
2200rpm
Displacement
9.3L
Fuel Tank Capacity
330L
Hydraulic Oil Capacity
295L
Transmission Type
Countershaft, power shift
Number Of Gears (f/r)
4 / 3
Max Travel Speed (f)
36km/h
Max Travel Speed (r)
24.2km/h
Service Brake Type
24.2
Parking Brake Type
Drum
Steering Type
Articulated
Steering Angle
76°
Oscillation Angle
20°
Turning Radius
7.406m
Operating Weight
23.294kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
L/min
Hydraulic Pressure
250Bar
Overall Length
8.849m
Overall Width
3.216m
Overall Height
3.55m
Ground Clearance
460mm
Max Dump Height
3.105m
Max Load Over Height
4.46m
Max Reach At Full Height
1.32m
Loader Bucket Capacity
4.5m³
Loader Arm Breakout Force
200kN
Front Axle Oscillation
20°
Battery Voltage
-
Standard Tires (front/rear)
26.5-25-PR28/TT L-3
Komatsu WA470-6A Wheel Loader
Engine Brand
Komatsu
Engine Model
SAA6D125E-5
Engine Power
203kW
Max Torque
-
Rated Speed
2000rpm
Displacement
11.04L
Fuel Tank Capacity
413L
Hydraulic Oil Capacity
173L
Transmission Type
Full-powershift, countershaft type
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
36.2km/h
Max Travel Speed (r)
36.2km/h
Service Brake Type
Hydraulically actuated, wet disc brakes
Parking Brake Type
Wet disc brake
Steering Type
Articulated, full-hydraulic power steering
Steering Angle
35°
Oscillation Angle
26°
Turning Radius
6.63m
Operating Weight
22.96kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
260L/min
Hydraulic Pressure
34.3Bar
Overall Length
8.825m
Overall Width
3.01m
Overall Height
3.5m
Ground Clearance
525mm
Max Dump Height
3.235m
Max Load Over Height
4.36m
Max Reach At Full Height
1.435m
Loader Bucket Capacity
5.2m³
Loader Arm Breakout Force
220kN
Front Axle Oscillation
26°
Battery Voltage
-
Standard Tires (front/rear)
23.5-25 or 26.5-25 (based on config)
Tata Hitachi ZW 225 CEV 5 Wheel Loader
Engine Brand
CUMMINS
Engine Model
QSB6.7
Engine Power
168kW
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.702L
Fuel Tank Capacity
255L
Hydraulic Oil Capacity
171L
Transmission Type
Torque converter, counter shaft type power shift
Number Of Gears (f/r)
5F/3R
Max Travel Speed (f)
36.9km/h
Max Travel Speed (r)
27.4km/h
Service Brake Type
Hydraulic wet disc
Parking Brake Type
Spring applied, dry disc
Steering Type
Articulated frame steering
Steering Angle
80°
Oscillation Angle
24°
Turning Radius
6.08m
Operating Weight
18220kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
271L/min
Hydraulic Pressure
274Bar
Overall Length
8.525m
Overall Width
2.785m
Overall Height
3.36m
Ground Clearance
450mm
Max Dump Height
2.885m
Max Load Over Height
5.5m
Max Reach At Full Height
1.23m
Loader Bucket Capacity
2.8m³
Loader Arm Breakout Force
182kN
Front Axle Oscillation
24°
Battery Voltage
24V
Standard Tires (front/rear)
23.5-25-20PR
