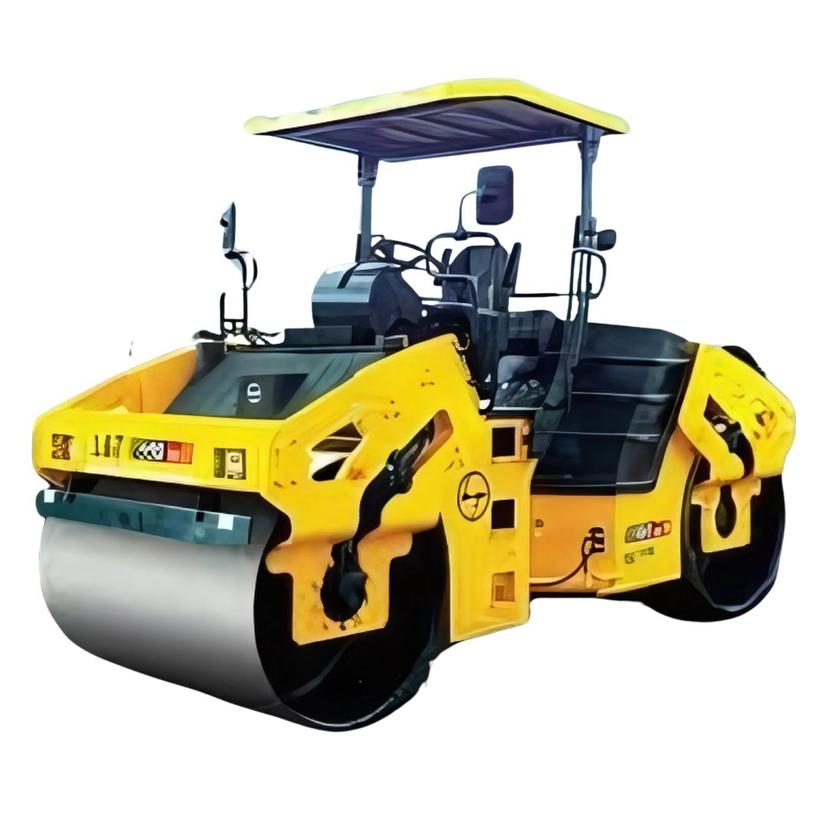

L&T 990HF Tandem Roller
L&T construction & Mining Machinery
Delhi
The L&T 990HF Tandem Roller is a versatile and efficient compaction machine designed for high-performance in a variety of construction applications. With an operating weight of 9200 kg and a powerful 74.8 HP engine, it delivers exceptional results in road construction, soil compaction, and surface finishing. The roller features a high-frequency vibration of 60Hz for superior smoothness and compaction quality. Its 1680mm wide drum ensures even coverage, while the adjustable amplitude provides flexibility for different surface types. The suspended frame design offers better kerb clearance, making it ideal for urban and highway projects. Additional features include a swivelling operator console for enhanced visibility, a foldable canopy, and a water sprinkle system with six nozzles to ensure optimal control and dust suppression. The L&T 990HF is an essential tool for ensuring durability and precision in every compaction task.
L&T 990HF Tandem Roller
L&T construction & Mining Machinery
Delhi
The L&T 990HF Tandem Roller is a versatile and efficient compaction machine designed for high-performance in a variety of construction applications. With an operating weight of 9200 kg and a powerful 74.8 HP engine, it delivers exceptional results in road construction, soil compaction, and surface finishing. The roller features a high-frequency vibration of 60Hz for superior smoothness and compaction quality. Its 1680mm wide drum ensures even coverage, while the adjustable amplitude provides flexibility for different surface types. The suspended frame design offers better kerb clearance, making it ideal for urban and highway projects. Additional features include a swivelling operator console for enhanced visibility, a foldable canopy, and a water sprinkle system with six nozzles to ensure optimal control and dust suppression. The L&T 990HF is an essential tool for ensuring durability and precision in every compaction task.
Product Description
The L&T 990HF Tandem Roller is a versatile and efficient compaction machine designed for high-perfor...
View the full brochure
L&T 990HF Tandem Roller Comparison with Similar Tandem Roller

L&T 990HF Tandem Roller
Parking Brake Type
Spring Applied Hydraulically Released (SAHR)
Service Brake Type
Hydrostatic Brake
Gradeability Without Vibration
-
Transmission Type
-
Max Travel Speed
12km/h
Max Working Speed
6km/h
Gradeability With Vibration
-
Steering Angle
±33°
Oscillation Angle
±10°
Turning Radius
5m
Steering Type
-
Engine Brand
Mahindra & Mahindra
Engine Model
VNEF74
Engine Power
74.8HP
Max Torque
306Nm
Rated Speed
2200rpm
Fuel Tank Capacity
140L
Displacement
3.5L
Operating Weight
9.2Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
65L
Frequency High
60Hz
Frequency Low
42Hz
Amplitude High
0.9mm
Amplitude Low
0.36mm
Overall Length
4.7m
Overall Width
1.8m
Overall Height
3m
Ground Clearance
300mm
Drum Width
1.6m
Water Tank Capacity
750L

Volvo DD90C Tandem Roller
Parking Brake Type
SAHR on both drum drives
Service Brake Type
Dynamic hydrostatic through propulsion system
Gradeability Without Vibration
30%
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7 km/h
Gradeability With Vibration
-
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Steering Type
Articulated frame, center pivot steering
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
180 L
Displacement
-
Operating Weight
8.7Ton
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Hydraulic Tank Capacity
80L
Frequency High
50 Hz
Frequency Low
36 Hz
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Drum Width
1.676m
Water Tank Capacity
700L

Volvo DD90B Tandem Roller
Parking Brake Type
SAHR on both drum drives
Service Brake Type
Dynamic hydrostatic through propulsion system
Gradeability Without Vibration
26%
Transmission Type
closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
13km/h
Max Working Speed
7km/h
Gradeability With Vibration
-
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
6.89m
Steering Type
Articulated frame center pivot steering
Engine Brand
Kirloskar
Engine Model
4R1040TC BS -III (CEV)
Engine Power
75.1HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
145L
Displacement
-
Operating Weight
8.55Ton
Front Axle Load
4400kg
Rear Axle Load
4150kg
Hydraulic Tank Capacity
85L
Frequency High
50Hz
Frequency Low
36Hz
Amplitude High
1.0mm
Amplitude Low
0.36mm
Overall Length
4.7m
Overall Width
1.835m
Overall Height
3.0m
Ground Clearance
305mm
Drum Width
1.675m
Water Tank Capacity
800L

Volvo DD100 Tandem Roller
Parking Brake Type
SAHR on front and rear drum drive motors
Service Brake Type
Dynamic hydrostatic through propulsion system
Gradeability Without Vibration
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability With Vibration
24.5%
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Steering Type
Center pivot (Articulated) steering
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
189L
Displacement
-
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L

Volvo DD100C Tandem Roller
Parking Brake Type
SAHR on both drum drives
Service Brake Type
Dynamic hydrostatic through propulsion system
Gradeability Without Vibration
26%
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7km/h
Gradeability With Vibration
-
Steering Angle
38°
Oscillation Angle
10°
Turning Radius
5.7m
Steering Type
Articulated frame center pivot steering
Engine Brand
VECV
Engine Model
EE494TCI-HPCR
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
185L
Displacement
-
Operating Weight
10.6Ton
Front Axle Load
5160kg
Rear Axle Load
4840kg
Hydraulic Tank Capacity
135L
Frequency High
42Hz
Frequency Low
30Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.25m
Overall Width
2.06m
Overall Height
2.87m
Ground Clearance
370mm
Drum Width
1.676m
Water Tank Capacity
492L
