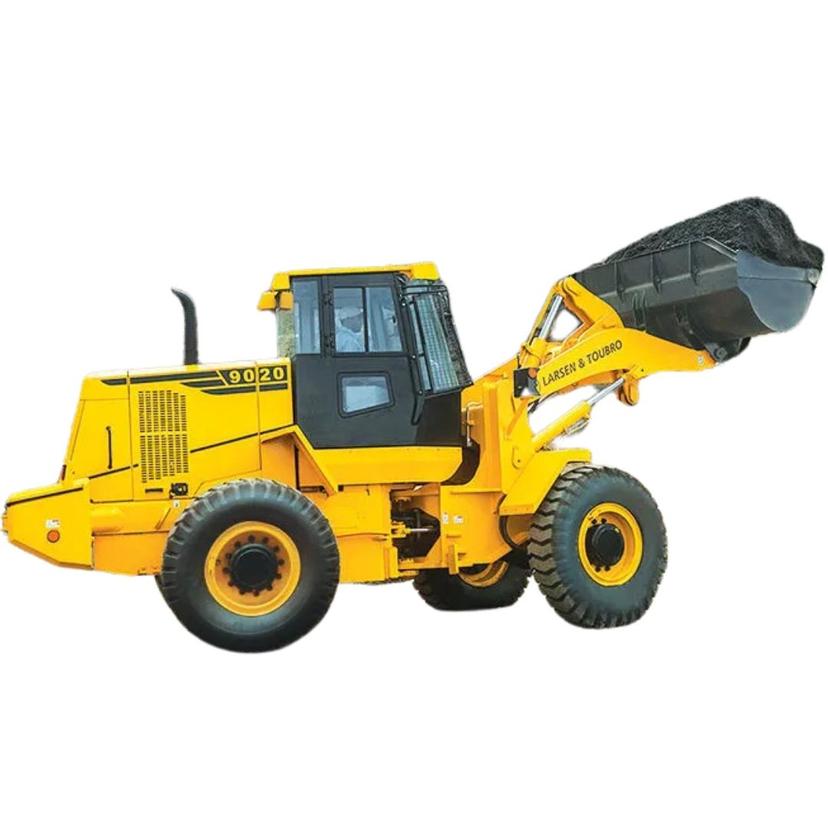

L&T 9020 Wheel Loader

L&T construction & Mining Machinery

Delhi

The L&T 9020 Wheel Loader is a versatile and powerful machine designed to meet the demanding needs of industries such as construction, mining, agriculture, and waste management. With an operating weight of 11,500 kg and a rated payload of 3,500 kg, it features a bucket capacity range of 1.5 to 3.5 m³, ensuring exceptional material handling efficiency. Powered by the Ashok Leyland H6C413323 engine compliant with CEV-IV emission norms, it delivers reliable performance with eco-conscious operation. Advanced features include high-lift arms, automatic fire suppression and centralized lubrication systems, and a rearview camera for enhanced safety. Its ground-engaging tools, such as bolt-on teeth and cutting edges, ensure durability and adaptability in tough environments, making it an ideal choice for productivity-driven applications across multiple sectors.

Product Description

The L&T 9020 Wheel Loader is a versatile and powerful machine designed to meet the demanding needs o...

View the full brochure

L&T 9020 Wheel Loader Comparison with Similar Wheel Loader

L&T 9020 Wheel Loader

L&T 9020 Wheel Loader

Get Latest Price
Rating
4.4

Steering Type

Articulated

Steering Angle

45°

Oscillation Angle

12°

Turning Radius

5.829m

Operating Weight

11.5kg

Front Axle Load

-

Hydraulic Flow Rate

-

Hydraulic Pressure

225Bar

Overall Length

7.48m

Overall Width

2.325m

Overall Height

3.072m

Ground Clearance

410mm

Max Dump Height

2.715m

Battery Voltage

24V

Standard Tires (front/rear)

14.00x25-L3-20PR / 10.00x25

Engine Brand

Ashok Leyland

Engine Model

H6C413323

Engine Power

98kW

Max Torque

475Nm

Rated Speed

2300rpm

Displacement

5.759L

Fuel Tank Capacity

198L

Hydraulic Oil Capacity

90L

Transmission Type

Electric power shift, constant mesh, spur and planetary gears

Number Of Gears (f/r)

2F / 1R

Max Travel Speed (f)

29km/h

Max Travel Speed (r)

12.6km/h

Service Brake Type

4 Wheel oil immersed wet multi disc

Parking Brake Type

Internal expanding shoe

Rear Axle Load

-

Max Lifting Capacity

3.5kg

Max Load Over Height

3.52m

Max Reach At Full Height

1.248m

Loader Bucket Capacity

2.0

Loader Arm Breakout Force

106.4021525kN

Front Axle Oscillation

12°

Currently Viewing
Liugong 856HE Max Electric Wheel Loader

Liugong 856HE Max Electric Wheel Loader

Get Latest Price
Rating
4.4

Steering Type

Articulated

Steering Angle

-

Oscillation Angle

±8°

Turning Radius

4.966m

Operating Weight

21000kg

Front Axle Load

-

Hydraulic Flow Rate

100L/min

Hydraulic Pressure

250Bar

Overall Length

6.3m

Overall Width

2.25m

Overall Height

3.25m

Ground Clearance

350mm

Max Dump Height

3.77m

Battery Voltage

618V

Standard Tires (front/rear)

16/70-20 PR14/TT L-3

Engine Brand

CATL

Engine Model

LFP

Engine Power

160kW

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

Electric – not applicableL

Hydraulic Oil Capacity

100L

Transmission Type

Planetary, power shift

Number Of Gears (f/r)

2/1

Max Travel Speed (f)

40km/h

Max Travel Speed (r)

13km/h

Service Brake Type

Fully Hydraulic

Parking Brake Type

Hydraulic Wet Brake + Manual Handle Control

Rear Axle Load

-

Max Lifting Capacity

-

Max Load Over Height

3.55m

Max Reach At Full Height

1.05m

Loader Bucket Capacity

2.7–5.6

Loader Arm Breakout Force

137kN

Front Axle Oscillation

±8°

liugong 818h wheel loader

liugong 818h wheel loader

Get Latest Price
Rating
4.4

Steering Type

Articulated Hydrostatic Steering

Steering Angle

± 35°°

Oscillation Angle

± 10°°

Turning Radius

R1:5.28 R2:4.63 m

Operating Weight

6400kg

Front Axle Load

-

Hydraulic Flow Rate

-

Hydraulic Pressure

148Bar

Overall Length

5.96m

Overall Width

2.02m

Overall Height

2.96m

Ground Clearance

285mm

Max Dump Height

2.68m

Battery Voltage

12V

Standard Tires (front/rear)

16/70-20 PR14

Engine Brand

Kirloskar

Engine Model

4R1040T-I (T)

Engine Power

54.8kW

Max Torque

400Nm

Rated Speed

2200rpm

Displacement

4.76L

Fuel Tank Capacity

88L

Hydraulic Oil Capacity

65L

Transmission Type

Countershaft Powershift, 3 Element Single Stage

Number Of Gears (f/r)

Forward 2 / Reverse 1

Max Travel Speed (f)

8/25km/h

Max Travel Speed (r)

8/25km/h

Service Brake Type

Air Over Hydraulic Caliper Disc Brake

Parking Brake Type

Mechanical Actuation

Rear Axle Load

-

Max Lifting Capacity

-

Max Load Over Height

2.94m

Max Reach At Full Height

0.92m

Loader Bucket Capacity

1.2

Loader Arm Breakout Force

45kN

Front Axle Oscillation

± 10°°

Liugong 838T MAX WHEEL LOADER

Liugong 838T MAX WHEEL LOADER

Get Latest Price
Rating
4.4

Steering Type

Articulated

Steering Angle

38°

Oscillation Angle

11°

Turning Radius

5.05m

Operating Weight

12324kg

Front Axle Load

-

Hydraulic Flow Rate

-

Hydraulic Pressure

210Bar

Overall Length

7.41m

Overall Width

2.46m

Overall Height

3.32m

Ground Clearance

380mm

Max Dump Height

2.95m

Battery Voltage

24V

Standard Tires (front/rear)

17.5–25 PR16

Engine Brand

Ashok Leyland

Engine Model

H6C516022

Engine Power

118kW

Max Torque

650Nm

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

180L

Hydraulic Oil Capacity

104L

Transmission Type

Powershift

Number Of Gears (f/r)

2 / 1

Max Travel Speed (f)

17/40km/h

Max Travel Speed (r)

17km/h

Service Brake Type

Air Over Hydraulic Drum Brake

Parking Brake Type

Mechanical Actuation

Rear Axle Load

-

Max Lifting Capacity

-

Max Load Over Height

3.39m

Max Reach At Full Height

1.15m

Loader Bucket Capacity

2.4

Loader Arm Breakout Force

102kN

Front Axle Oscillation

11°

LIUGONG 838TE WHEEL LOADERS

LIUGONG 838TE WHEEL LOADERS

Get Latest Price
Rating
4.4

Steering Type

Large displacement steering

Steering Angle

38°

Oscillation Angle

10°

Turning Radius

Bucket Carry: 6218 mm (6.21 m) Outside of Tire: 5840 mm (5.84 m)m

Operating Weight

-

Front Axle Load

-

Hydraulic Flow Rate

13625L/min

Hydraulic Pressure

210Bar

Overall Length

7.50m

Overall Width

3.2m

Overall Height

3.2m

Ground Clearance

328mm

Max Dump Height

2.95m

Battery Voltage

DC 624 VV

Standard Tires (front/rear)

17.5–25 PR16 L-3 TT

Engine Brand

Electric (Battery Powered)

Engine Model

-

Engine Power

Peak Power Drive Motor: 120 kW Peak Power Hydraulic Motor: 95 kWkW

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

-

Hydraulic Oil Capacity

130L

Transmission Type

Planetary electronic control shift

Number Of Gears (f/r)

2/1

Max Travel Speed (f)

40km/h

Max Travel Speed (r)

15km/h

Service Brake Type

Full hydraulic

Parking Brake Type

Drum

Rear Axle Load

-

Max Lifting Capacity

-

Max Load Over Height

3.85m

Max Reach At Full Height

1.14m

Loader Bucket Capacity

2.4

Loader Arm Breakout Force

125kN

Front Axle Oscillation

10°
