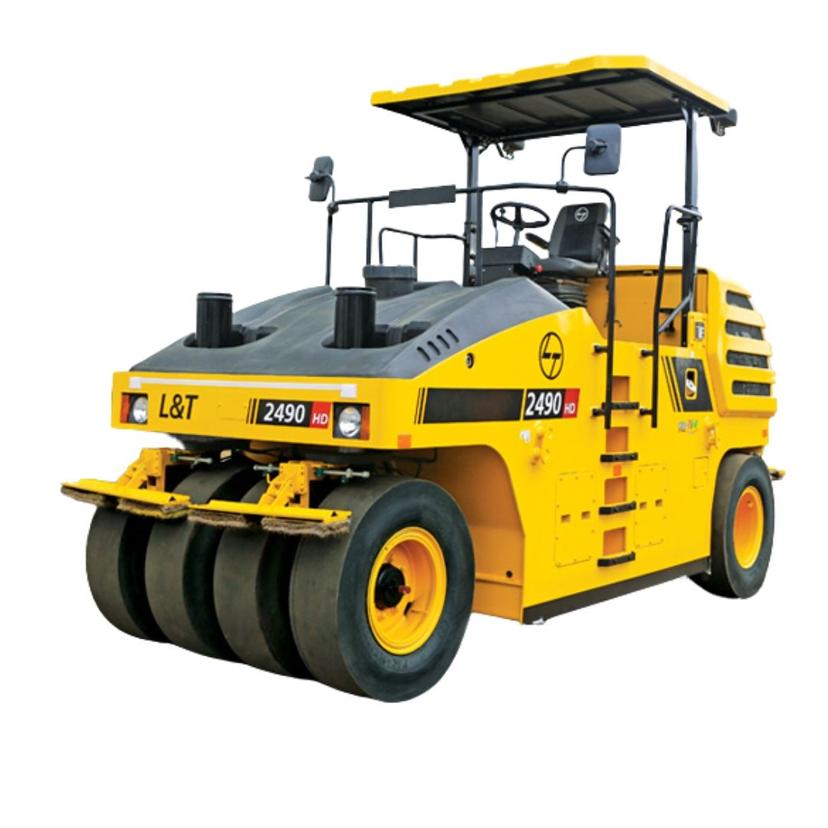

L&T 2490HD Pneumatic Tyred Roller
L&T construction & Mining Machinery
Delhi
The L&T 2490HD Pneumatic Tyred Roller is a high-performance machine engineered for superior compaction in diverse construction projects. With a maximum operating weight of 24,000 kg and a robust 4x4 tyre combination, it ensures even and consistent compaction across surfaces. The roller features a 2042 mm working width and a 42 mm tyre overlap for seamless paving, while the maximum wheel load of 3,000 kg per tyre delivers exceptional pressure for dense and durable results. Powered by a 100 HP M&M VNEF 100-CEV-IV engine, it operates efficiently under demanding conditions. The pressurized water sprinkling system prevents material adhesion, enhancing performance on asphalt surfaces. Designed for reliability, the roller offers easy access to service components, minimizing downtime and making it an ideal choice for large-scale infrastructure projects.
L&T 2490HD Pneumatic Tyred Roller
L&T construction & Mining Machinery
Delhi
The L&T 2490HD Pneumatic Tyred Roller is a high-performance machine engineered for superior compaction in diverse construction projects. With a maximum operating weight of 24,000 kg and a robust 4x4 tyre combination, it ensures even and consistent compaction across surfaces. The roller features a 2042 mm working width and a 42 mm tyre overlap for seamless paving, while the maximum wheel load of 3,000 kg per tyre delivers exceptional pressure for dense and durable results. Powered by a 100 HP M&M VNEF 100-CEV-IV engine, it operates efficiently under demanding conditions. The pressurized water sprinkling system prevents material adhesion, enhancing performance on asphalt surfaces. Designed for reliability, the roller offers easy access to service components, minimizing downtime and making it an ideal choice for large-scale infrastructure projects.
- •Heavy-Duty Construction Sites: The 3,000 kg maximum wheel load per tyre makes it perfect for handling tough materials and subgrade compaction.
- •Versatile Industrial Paving: Its 4x4 tyre combination and 2042 mm working width ensure smooth compaction for industrial and large-scale paving projects.
- •Efficient Compaction for Roads: The L&T 2490HD Pneumatic Tyred Roller delivers high-density compaction with its 24-ton maximum operating weight, ideal for constructing durable highways and runways.
- •User-Friendly Maintenance: Easy access to service components ensures reduced downtime, making it reliable for extended use in infrastructure development.
- •Optimal Asphalt Finishing: Achieve seamless asphalt layers with the 42 mm tyre overlap and pressurized water sprinkling system to prevent material sticking.
Product Description
The L&T 2490HD Pneumatic Tyred Roller is a high-performance machine engineered for superior compacti...
View the full brochure
L&T 2490HD Pneumatic Tyred Roller Comparison with Similar Pneumatic Roller
L&T 2490HD Pneumatic Tyred Roller
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
-
Max Travel Speed (r)
-
Gradeability
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inside)
-
Turning Radius (outside)
-
Operating Weight
-
Max Operating Weight
-
Max Ballast
-
Compaction Width
-
Ground Clearance
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Wheelbase
-
Water Tank Capacity
-
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
-
CAT CW16-9 Wheel Pneumatic Roller
Engine Brand
-
Engine Model
C3.4B
Engine Power
75kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
146L
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
19km/h
Max Travel Speed (r)
-
Gradeability
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inside)
3761 mm
Turning Radius (outside)
6455 mm
Operating Weight
5.2 kg
Max Operating Weight
15.0 kg
Max Ballast
9.8kg
Compaction Width
1728 mm
Ground Clearance
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
4290mm
Overall Width
-
Overall Height
3000mm
Wheelbase
348mm
Water Tank Capacity
-
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
-
Sany SPR160C-8 Pneumatic Roller
Engine Brand
DONGFENG CUMMINS
Engine Model
4BTAA3.9-C125
Engine Power
93kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
14km/h
Max Travel Speed (r)
7.6km/h
Gradeability
25%
Service Brake Type
-
Parking Brake Type
-
Steering Type
30
Steering Angle
-
Oscillation Angle
-
Turning Radius (inside)
17000mm
Turning Radius (outside)
-
Operating Weight
10.0kg
Max Operating Weight
16.0kg
Max Ballast
-
Compaction Width
2085mm
Ground Clearance
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Wheelbase
3750mm
Water Tank Capacity
-
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
200~800kPa/bar
Sany SPR200-5 Pneumatic roller
Engine Brand
Cummins
Engine Model
4BTAA3.9-C125
Engine Power
93kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
160L
Hydraulic Oil Capacity
100L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
14km/h
Max Travel Speed (r)
-
Gradeability
25%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
30°
Oscillation Angle
-
Turning Radius (inside)
16850mm
Turning Radius (outside)
-
Operating Weight
-
Max Operating Weight
20000kg
Max Ballast
-
Compaction Width
-
Ground Clearance
350mm
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
5000mm
Overall Width
2085mm
Overall Height
3275mm
Wheelbase
3750mm
Water Tank Capacity
500L
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
-

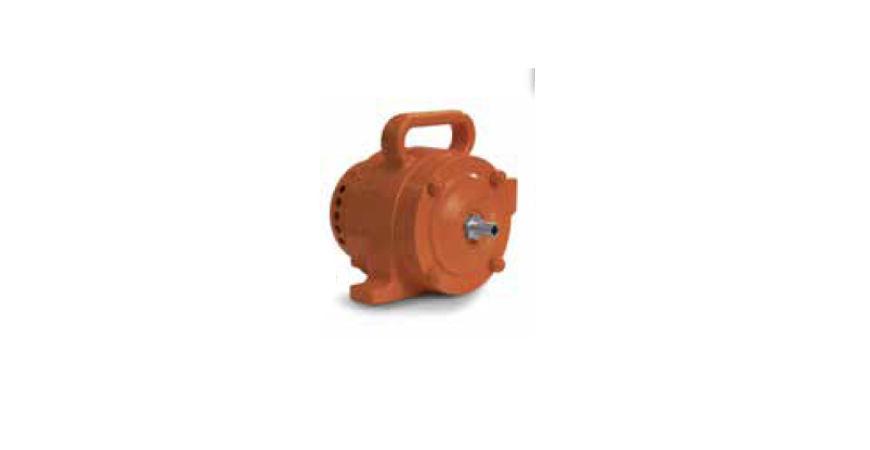

Oli HFP 4500C External Pneumatic Vibrator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
-
Max Travel Speed (r)
-
Gradeability
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inside)
-
Turning Radius (outside)
-
Operating Weight
-
Max Operating Weight
-
Max Ballast
-
Compaction Width
-
Ground Clearance
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Wheelbase
-
Water Tank Capacity
-
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
-
