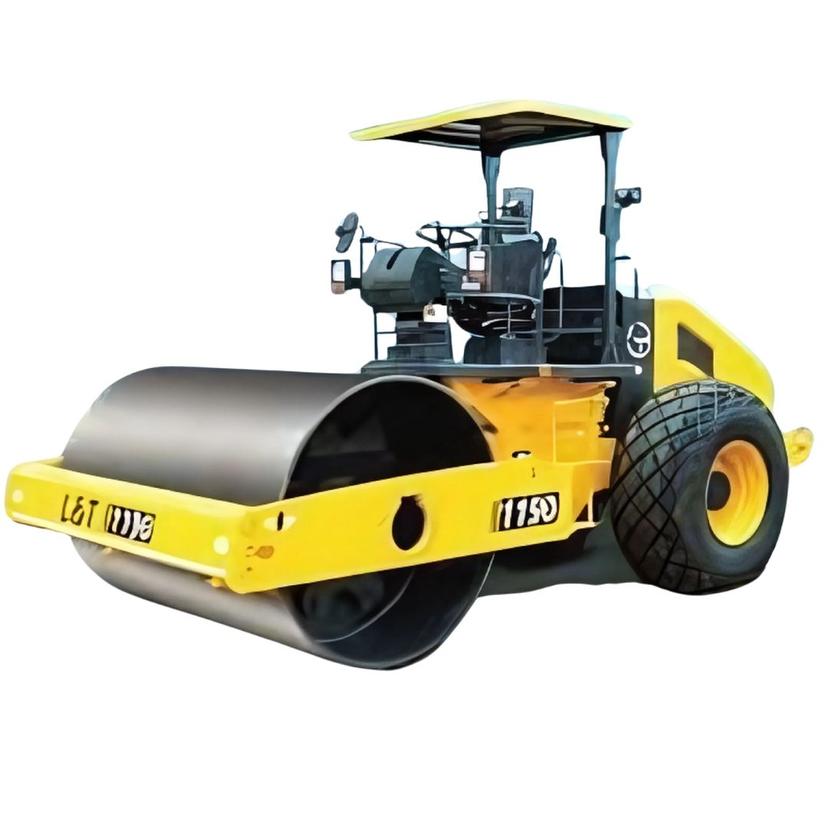

L&T 1190 Single Drum Soil Compactor
L&T construction & Mining Machinery
Delhi
The L&T 1190 Single Drum Soil Compactor is a powerful and versatile machine designed for efficient soil compaction across various construction and infrastructure projects. With an operating weight of 11 tonnes and a high-frequency vibration system, it delivers superior compaction on granular soils, gravel, and sand. The machine features a 2100mm drum width, ensuring optimal coverage and excellent compaction results. Its 31% gradeability allows smooth operation on sloped terrains, making it ideal for both urban and highway construction. The compact design with a low turning radius enhances maneuverability in confined spaces. Built with a 30mm thick front drum shell, the L&T 1190 offers durability and long-lasting performance. Additionally, safety interlocks in the brake and neutral system ensure secure operation, making it a reliable choice for a variety of applications.
L&T 1190 Single Drum Soil Compactor
L&T construction & Mining Machinery
Delhi
The L&T 1190 Single Drum Soil Compactor is a powerful and versatile machine designed for efficient soil compaction across various construction and infrastructure projects. With an operating weight of 11 tonnes and a high-frequency vibration system, it delivers superior compaction on granular soils, gravel, and sand. The machine features a 2100mm drum width, ensuring optimal coverage and excellent compaction results. Its 31% gradeability allows smooth operation on sloped terrains, making it ideal for both urban and highway construction. The compact design with a low turning radius enhances maneuverability in confined spaces. Built with a 30mm thick front drum shell, the L&T 1190 offers durability and long-lasting performance. Additionally, safety interlocks in the brake and neutral system ensure secure operation, making it a reliable choice for a variety of applications.
Product Description
The L&T 1190 Single Drum Soil Compactor is a powerful and versatile machine designed for efficient s...
View the full brochure
L&T 1190 Single Drum Soil Compactor Comparison with Similar Single Drum Soil Compactor
L&T 1190 Single Drum Soil Compactor
Max Applied Force
37400kN
Without Drum Drive
-
With Drum Drive
-
Overall Height
3118 m
Overall Length
5720 m
Overall Width
2100m
Ground Clearance
555mm
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
36°
Front Departure Angle
32°
Tyre Size
23.1/26 8PR Tubeless
Battery Voltage
12V
Battery Capacity
150Ah
Coolant Capacity
-
Hydraulic Oil Capacity
70L
Engine Oil Capacity
13.5L
Front Axle Load
6350kg
Rear Axle Load
4650kg
Static Linear Load
30.2kg/cm
Operating Weight
11Ton
Frequency (low)
31Hz
Frequency (high)
34Hz
Amplitude (low)
1.8mm
Amplitude (high)
0.9mm
Centrifugal Force
26400kN
Engine Brand
Mahindra
Engine Model
VNEF100-CEV4
Engine Power
10HP
Max Torque
420Nm
Rated Speed
2200rpm
Displacement
3532L
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic brake - FNR Lever control
Parking Brake Type
Spring Applied Hydraulically Released (SAHR) - ON/OFF Switch Control
Steering Type
-
Steering Angle
37°
Oscillation Angle
15°
Turning Radius (inner)
3.35m
Turning Radius (outer)
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Volvo SD110CD Soil Compactor
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Height
3.250m
Overall Length
5.875m
Overall Width
2.340m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Coolant Capacity
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
11.2Ton
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-
Dynapac CA405D CEV-V Single drum vibratory rollers
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Overall Height
2.977m
Overall Length
5.600m
Overall Width
2.300m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Coolant Capacity
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Operating Weight
13.960Ton
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann ARS 110 PD Single Drum Roller
Max Applied Force
285kN
Without Drum Drive
54%
With Drum Drive
50%
Overall Height
-
Overall Length
-
Overall Width
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Coolant Capacity
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
12.54Ton
Frequency (low)
25 Hz
Frequency (high)
35 HzHz
Amplitude (low)
1.7mm
Amplitude (high)
0.72mm
Centrifugal Force
186kN
Engine Brand
Deutz
Engine Model
TCD 3.6 L04
Engine Power
134HP
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
345 L
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius (inner)
3.625m
Turning Radius (outer)
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann 130 PD Single Drum Roller
Max Applied Force
230kN
Without Drum Drive
-
With Drum Drive
-
Overall Height
-
Overall Length
-
Overall Width
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Coolant Capacity
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
14Ton
Frequency (low)
30Hz
Frequency (high)
36Hz
Amplitude (low)
1.85mm
Amplitude (high)
1mm
Centrifugal Force
300kN
Engine Brand
Cummins
Engine Model
QSB 4.5-C160
Engine Power
159HP
Max Torque
206 Nm
Rated Speed
1500rpm
Displacement
-
Fuel Tank Capacity
410L
Transmission Type
-
Max Travel Speed
20km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Hydrostatic
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius (inner)
-
Turning Radius (outer)
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
