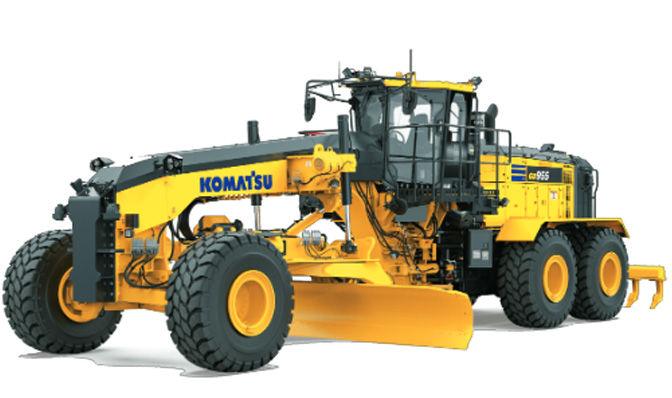

Komatsu GD955-7 Motor Grader

Komatsu India Private Limited

Tamil Nadu

The Komatsu GD955-7 Motor Grader is a high-performance machine engineered for large-scale earthmoving, road building, and mining applications. Powered by a robust 426 HP Tier 4 Final Komatsu SAA6D140E-7 engine, it delivers exceptional torque of 2150 Nm and smooth operation with its full power shift transmission and torque converter. Featuring a massive 15.24 L displacement and advanced hydraulics producing 315.2 L/min flow, the GD955-7 ensures precision grading and outstanding productivity. Its 6.1 m optional moldboard, 32° total oscillation angle, and 130° blade rotation offer unmatched versatility. With a reinforced frame, 48.57-ton operating weight, and cutting-edge operator comfort systems, this grader is built for performance in the most demanding job sites. It’s the ultimate solution for long haul road maintenance, heavy-duty grading, and large-scale infrastructure development.

Product Description

The Komatsu GD955-7 Motor Grader is a high-performance machine engineered for large-scale earthmovin...

View the full brochure

Komatsu GD955-7 Motor Grader Comparison with Similar Motor Grader

Komatsu GD955-7 Motor Grader

Komatsu GD955-7 Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

Komatsu

Engine Model

SAA6D140E-7

Engine Power

426HP

Max Torque

2150Nm

Rated Speed

1900rpm

Displacement

15.24L

Fuel Tank Capacity

717L

Transmission Type

Full power shift with torque converter and lockup

Number Of Gears (fwd/rev)

8F/8R

Max Travel Speed

44.4 km/h

Service Brake Type

Wet multiple-disc, hydraulically actuated

Parking Brake Type

Spring applied, hydraulically released wet disc

Steering Type

Hydraulic power steering

Steering Angle

50°

Oscillation Angle

32°

Turning Radius

9.3m

Operating Weight

48.57Ton

Front Axle Load

14070kg

Rear Axle Load

34500kg

Hydraulic Flow Rate

315.2L/min

Hydraulic Pressure

275.0Bar

Overall Length

13.200m

Overall Width

3.685m

Overall Height

3.990m

Ground Clearance

710mm

Blade Length

5.489m

Blade Height

0.960m

Max Lift Above Ground

0.542m

Max Depth Of Cut

0.498m

Blade Tilt Angle

14°

Blade Pitch Angle

-

Blade Rotation Angle

130°

Currently Viewing
Liugong CLG 414 BSIII Motor Grader

Liugong CLG 414 BSIII Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

CUMMINS INDIA

Engine Model

6BTAA5.9

Engine Power

150HP

Max Torque

655Nm

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

250L

Transmission Type

Power Shift

Number Of Gears (fwd/rev)

6F/3R

Max Travel Speed

41km/h

Service Brake Type

Shoe

Parking Brake Type

Shoe

Steering Type

Full hydraulic steering

Steering Angle

90°

Oscillation Angle

30°

Turning Radius

7.2m

Operating Weight

14.3Ton

Front Axle Load

-

Rear Axle Load

-

Hydraulic Flow Rate

-

Hydraulic Pressure

180Bar

Overall Length

9.21m

Overall Width

3.4m

Overall Height

3.66m

Ground Clearance

575mm

Blade Length

3.66m

Blade Height

0.61m

Max Lift Above Ground

0.485m

Max Depth Of Cut

0.575m

Blade Tilt Angle

70°

Blade Pitch Angle

-

Blade Rotation Angle

90°

Sany STG210C-10 Motor Grader

Sany STG210C-10 Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSB6.7

Engine Power

225HP

Max Torque

1000Nm

Rated Speed

2200rpm

Displacement

6.7L

Fuel Tank Capacity

350L

Transmission Type

-

Number Of Gears (fwd/rev)

6 forward and 3 reverse

Max Travel Speed

42km/h

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Steering Angle

45°

Oscillation Angle

16°

Turning Radius

7.3m

Operating Weight

15.35Ton

Front Axle Load

-

Rear Axle Load

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

11.1m

Overall Width

2.74m

Overall Height

3.31m

Ground Clearance

410mm

Blade Length

3.66m

Blade Height

0.62m

Max Lift Above Ground

0.48m

Max Depth Of Cut

0.63m

Blade Tilt Angle

9°

Blade Pitch Angle

25~75°

Blade Rotation Angle

360°

FINE 585HD Motor Grader

FINE 585HD Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

Ashok Leyland

Engine Model

-

Engine Power

130HP

Max Torque

480Nm

Rated Speed

2200rpm

Displacement

3.84L

Fuel Tank Capacity

140L

Transmission Type

Power - Shift Transmission (AVTECH)

Number Of Gears (fwd/rev)

2 Forward / 2 Reverse

Max Travel Speed

20km/h

Service Brake Type

Foot pedal operated hydraulic brake through master cylinder

Parking Brake Type

Spring Applied Hydraulic Release (SAHR)

Steering Type

Hydraulic Power Steering

Steering Angle

45°

Oscillation Angle

20°

Turning Radius

10.26m

Operating Weight

9.495Ton

Front Axle Load

2710kg

Rear Axle Load

6750kg

Hydraulic Flow Rate

118L/min

Hydraulic Pressure

220Bar

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Blade Length

3.05m

Blade Height

0.494m

Max Lift Above Ground

0.46m

Max Depth Of Cut

-

Blade Tilt Angle

40° Forward / 5° Backward°

Blade Pitch Angle

-

Blade Rotation Angle

360°

CASE 865C VHP Motor Grader

CASE 865C VHP Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

FPT

Engine Model

F4HE613B*W002

Engine Power

220HP

Max Torque

930Nm

Rated Speed

2200rpm

Displacement

6.7L

Fuel Tank Capacity

380L

Transmission Type

-

Number Of Gears (fwd/rev)

-

Max Travel Speed

-

Service Brake Type

Disc, bathed in oil

Parking Brake Type

-

Steering Type

Hydrostatic power steering

Steering Angle

25°

Oscillation Angle

20°

Turning Radius

-

Operating Weight

-

Front Axle Load

-

Rear Axle Load

-

Hydraulic Flow Rate

186L/min

Hydraulic Pressure

175Bar

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

0.58 (front) mm

Blade Length

3.962m

Blade Height

0.622 m

Max Lift Above Ground

0.4445m

Max Depth Of Cut

0.7112m

Blade Tilt Angle

-

Blade Pitch Angle

87°

Blade Rotation Angle

360 °
