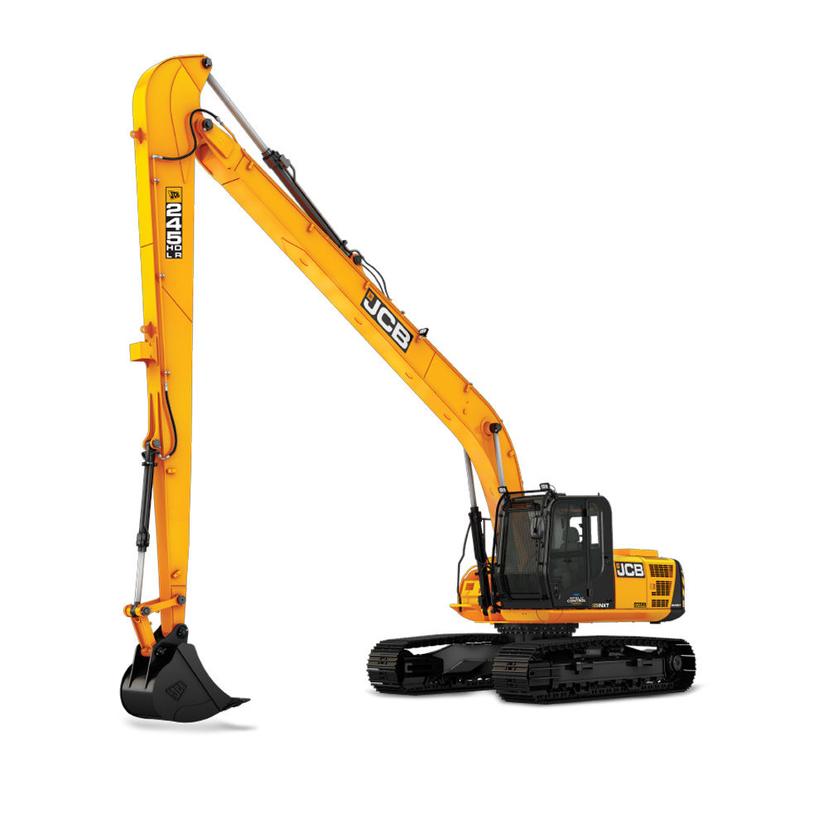

JCB NXT 245HD LR Crawler Excavator
JCB India Limited
Delhi
The JCB NXT 245HDLR Crawler Excavator elevates excavation projects with its superior 15.54-meter reach and 12.19-meter depth, ideal for tasks like digging wells and ponds. Engineered for efficiency, it features a cutting-edge hydraulic system that reduces fuel consumption and accelerates cycle times, ensuring higher output. Maintenance costs are minimized with extended hydraulic oil service intervals of 5,000 hours and advanced filtration systems. The excavator’s IntelliControl system provides eight engine speeds and three power modes for optimal fuel management. Real-time operational data and remote monitoring are seamlessly managed via the Live Link mobile application, enhancing control and productivity. Experience the next level of performance and efficiency with the JCB NXT 245HDLR.
JCB NXT 245HD LR Crawler Excavator
JCB India Limited
Delhi
The JCB NXT 245HDLR Crawler Excavator elevates excavation projects with its superior 15.54-meter reach and 12.19-meter depth, ideal for tasks like digging wells and ponds. Engineered for efficiency, it features a cutting-edge hydraulic system that reduces fuel consumption and accelerates cycle times, ensuring higher output. Maintenance costs are minimized with extended hydraulic oil service intervals of 5,000 hours and advanced filtration systems. The excavator’s IntelliControl system provides eight engine speeds and three power modes for optimal fuel management. Real-time operational data and remote monitoring are seamlessly managed via the Live Link mobile application, enhancing control and productivity. Experience the next level of performance and efficiency with the JCB NXT 245HDLR.
Product Description
The JCB NXT 245HDLR Crawler Excavator elevates excavation projects with its superior 15.54-meter rea...
View the full brochure
JCB NXT 245HD LR Crawler Excavator Comparison with Similar Crawler Excavator
JCB NXT 245HD LR Crawler Excavator
Engine Brand
Cummins
Engine Model
6BT 5.9C
Engine Power
140HP
Max Torque
-
Rated Speed
2000rpm
Displacement
5.88L
Fuel Tank Capacity
343L
Hydraulic Flow Rate
460L/min
Hydraulic Pressure (implement Circuit)
343kgf/cm²
Hydraulic Pressure (swing Circuit)
240kgf/cm²
Hydraulic Pressure (travel Circuit)
343kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
23.3Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
12.04m
Max Reach At Ground
15.51m
Max Dumping Height
10.4m
Bucket Capacity
0.45m³
Bucket Breakout Force
6,681kgf
Arm Crowd Force
4,487kgf
Overall Length
12.6m
Overall Width
2.99m
Overall Height
3.06m
Ground Clearance
456mm
XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm
Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-
Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm
Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
