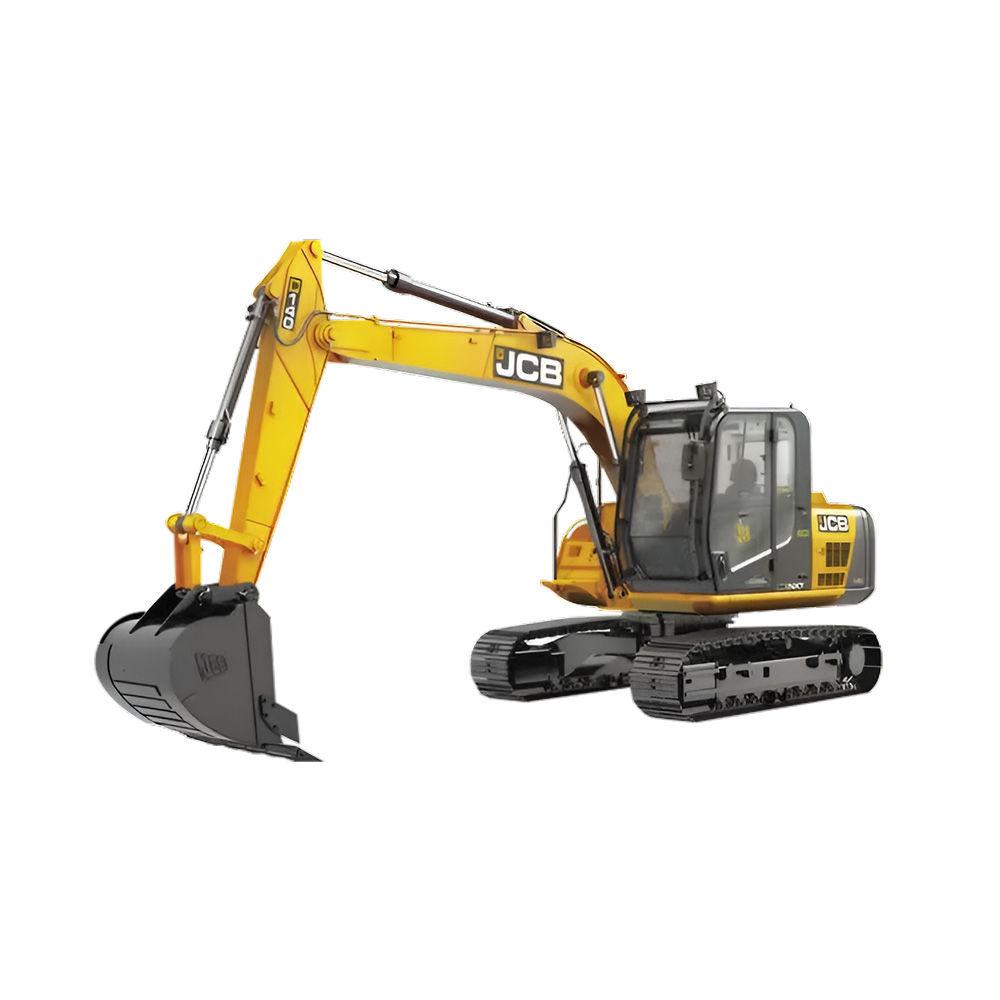

JCB NXT 140 Crawler Excavator
JCB India Limited
Chhattisgarh
The JCB NXT 140 Crawler Excavator is engineered to excel in tough working conditions, making it the ideal choice for demanding excavation tasks. Equipped with a new heavy-duty bucket design and a reinforced structure, it offers superior durability, particularly in quarry operations. The JCB NXT 140 delivers NXT-level performance with its Power Plus mode, providing a 6% higher output, and JCB Dynamic Efficiency ensures class-leading fuel efficiency across three power modes. IntelliControl offers real-time operational insights, enhancing productivity and reducing downtime. Additionally, its advanced telematics technology, through the Live Link mobile app, allows for remote machine monitoring. Designed for reliability, this excavator features a reinforced boom and IP69-rated waterproof connectors, ensuring long-lasting performance in the harshest environments.
JCB NXT 140 Crawler Excavator
JCB India Limited
Chhattisgarh
The JCB NXT 140 Crawler Excavator is engineered to excel in tough working conditions, making it the ideal choice for demanding excavation tasks. Equipped with a new heavy-duty bucket design and a reinforced structure, it offers superior durability, particularly in quarry operations. The JCB NXT 140 delivers NXT-level performance with its Power Plus mode, providing a 6% higher output, and JCB Dynamic Efficiency ensures class-leading fuel efficiency across three power modes. IntelliControl offers real-time operational insights, enhancing productivity and reducing downtime. Additionally, its advanced telematics technology, through the Live Link mobile app, allows for remote machine monitoring. Designed for reliability, this excavator features a reinforced boom and IP69-rated waterproof connectors, ensuring long-lasting performance in the harshest environments.
Product Description
The JCB NXT 140 Crawler Excavator is engineered to excel in tough working conditions, making it the ...
View the full brochure
JCB NXT 140 Crawler Excavator Comparison with Similar Crawler Excavator
JCB NXT 140 Crawler Excavator
Hydraulic Pressure (swing Circuit)
279kgf/cm²
Hydraulic Pressure (travel Circuit)
330kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Hydraulic Flow Rate
260L/min
Hydraulic Pressure (implement Circuit)
330kgf/cm²
Operating Weight
14.32Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
5.21 m
Max Reach At Ground
7.89m
Max Dumping Height
6.37m
Bucket Capacity
0.72m³
Bucket Breakout Force
8974kgf
Arm Crowd Force
7401kgf
Engine Brand
Cummins
Engine Model
4BT 3.9C
Engine Power
100HP
Max Torque
-
Rated Speed
2200rpm
Displacement
3.9L
Fuel Tank Capacity
253L
Overall Length
7.63m
Overall Width
2.49m
Overall Height
3.00m
Ground Clearance
460mm
XCMG XE155U Crawler Excavator
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm
Zoomlion ZE385G Pro Crawler Excavator
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-
Liugong 965E HD Crawler Excavator
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm
Sany SY210 SPARC + Crawler Excavator
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
