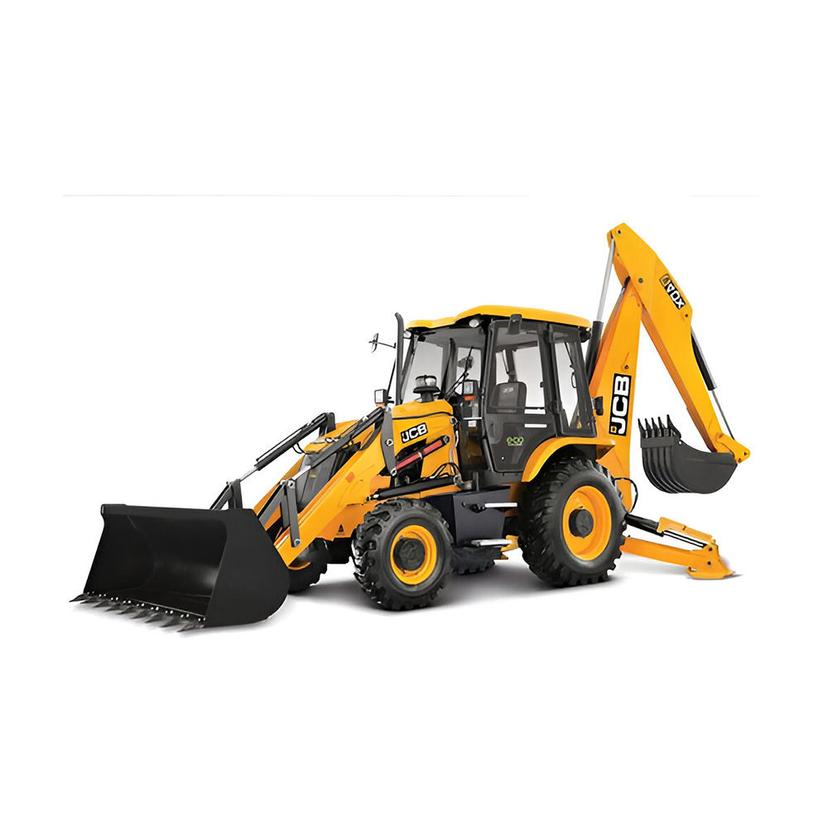

JCB 4DX Backhoe Loader
JCB India Limited
Chhattisgarh
The JCB 4DX Backhoe Loader is a powerhouse designed for superior performance and efficiency in diverse applications. Powered by the advanced JCB ecoMAX engine (CEV Stage IV) and featuring 4WD as standard, the 4DX excels in productivity with a maximum digging depth of 5.36 meters and a loader shovel capacity of 1.2 cu.m. It offers enhanced fuel efficiency and lower maintenance costs, thanks to its CRDI technology and dynamic operational modes. The 4DX’s robust construction, including a heavy-duty boom and high-capacity buckets, ensures durability even in tough conditions. Operator comfort is prioritized with a spacious cabin, reduced noise, and advanced controls. With JCB LiveLink, you get real-time machine diagnostics and support, ensuring optimal performance and reduced downtime.
JCB 4DX Backhoe Loader
JCB India Limited
Chhattisgarh
The JCB 4DX Backhoe Loader is a powerhouse designed for superior performance and efficiency in diverse applications. Powered by the advanced JCB ecoMAX engine (CEV Stage IV) and featuring 4WD as standard, the 4DX excels in productivity with a maximum digging depth of 5.36 meters and a loader shovel capacity of 1.2 cu.m. It offers enhanced fuel efficiency and lower maintenance costs, thanks to its CRDI technology and dynamic operational modes. The 4DX’s robust construction, including a heavy-duty boom and high-capacity buckets, ensures durability even in tough conditions. Operator comfort is prioritized with a spacious cabin, reduced noise, and advanced controls. With JCB LiveLink, you get real-time machine diagnostics and support, ensuring optimal performance and reduced downtime.
Product Description
The JCB 4DX Backhoe Loader is a powerhouse designed for superior performance and efficiency in diver...
View the full brochure
JCB 4DX Backhoe Loader Comparison with Similar Backhoe Loader
JCB 4DX Backhoe Loader
Displacement
3.0 L
Fuel Tank Capacity
128L
Engine Brand
JCB
Engine Model
430
Engine Power
-
Max Torque
440Nm
Rated Speed
-
Transmission Type
Easy Shift JCB synchroshuttle
Number Of Gears (forward/reverse)
4
Torque Converter Stall Ratio
3.01:1
Max Travel Speed
-
Shovel Breakout Force
6264 kgf
Max Dump Height
2.93 m
Max Load Over Height
3.37m
Max Hinge Pin Height
-
Max Reach At Full Height
1.24 m
Loader Bucket Capacity
0.32m³
Loader Arm Breakout Force
5516kgf
Service Brake Type
JCB ‘Q’ brakes, hydraulically actuated, dual line
Parking Brake Type
Hand operated, disc brakes on rear axle input disc
Steering Type
Power track steering rod system provides equal turn steering & quick response with less operating force
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
-
Max Lifting Capacity
-
Hydraulic Flow Rate
148L/min
Hydraulic Pressure
250Bar
Max Digging Depth
250m
Max Reach At Ground
7.57m
Max Loading Height
-
Bucket Capacity
0.32m³
Bucket Breakout Force
6716 kgf
Dipper Breakout Force
4551 kgf
Overall Length
6.35m
Overall Width
-
Overall Height
4.21m
Ground Clearance
0.28 mm
Power Steering
Power track steering rod system provides equal turn steering & quick response with less operating force.
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CAT 424-2 Backhoe Loader
Displacement
-
Fuel Tank Capacity
-
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Shovel Breakout Force
5,370kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CASE 770EX Backhoe Loader
Displacement
3.84L
Fuel Tank Capacity
129L
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422*W
Engine Power
74HP
Max Torque
340Nm
Rated Speed
2200rpm
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Shovel Breakout Force
-
Max Dump Height
2.73m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Max Reach At Full Height
2.15m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Operating Weight
7.78Ton
Max Lifting Capacity
3515kg
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Loading Height
3.8m
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
Bull HD96 4WD Backhoe Loader
Displacement
-
Fuel Tank Capacity
115 / 150L
Engine Brand
KIRLOSKAR
Engine Model
4R 1040 T EU STAGE II (Diesel)
Engine Power
96HP
Max Torque
377Nm
Rated Speed
2200rpm
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Shovel Breakout Force
-
Max Dump Height
2.93 / 2.96m
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Max Reach At Full Height
1.42 / 1.28m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.15Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Max Digging Depth
-
Max Reach At Ground
-
Max Loading Height
-
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m
ESCORTS DIGMAX II Backhoe Loader
Displacement
-
Fuel Tank Capacity
134L
Engine Brand
Kirloskar
Engine Model
4R1190NA
Engine Power
75 HP
Max Torque
300 Nm
Rated Speed
-
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
(4F/ 4R )
Torque Converter Stall Ratio
-
Max Travel Speed
36.6km/h
Shovel Breakout Force
-
Max Dump Height
3.00m
Max Load Over Height
3.51m
Max Hinge Pin Height
3.70m
Max Reach At Full Height
1.22m
Loader Bucket Capacity
1.2 m³
Loader Arm Breakout Force
5777kgf
Service Brake Type
Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type
Parking Brake Type
Hand-operated caliper disc brakes
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.19Ton
Max Lifting Capacity
1980kg
Hydraulic Flow Rate
117.5L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.80m
Max Reach At Ground
6.97m
Max Loading Height
-
Bucket Capacity
0.26m³
Bucket Breakout Force
6425kgf
Dipper Breakout Force
6174kgf
Overall Length
6.28m
Overall Width
-
Overall Height
3.78m
Ground Clearance
0.35mm
Power Steering
yes
Battery Voltage
-
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00 x 16 - 16PR / 16.9 x 28 - 12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
