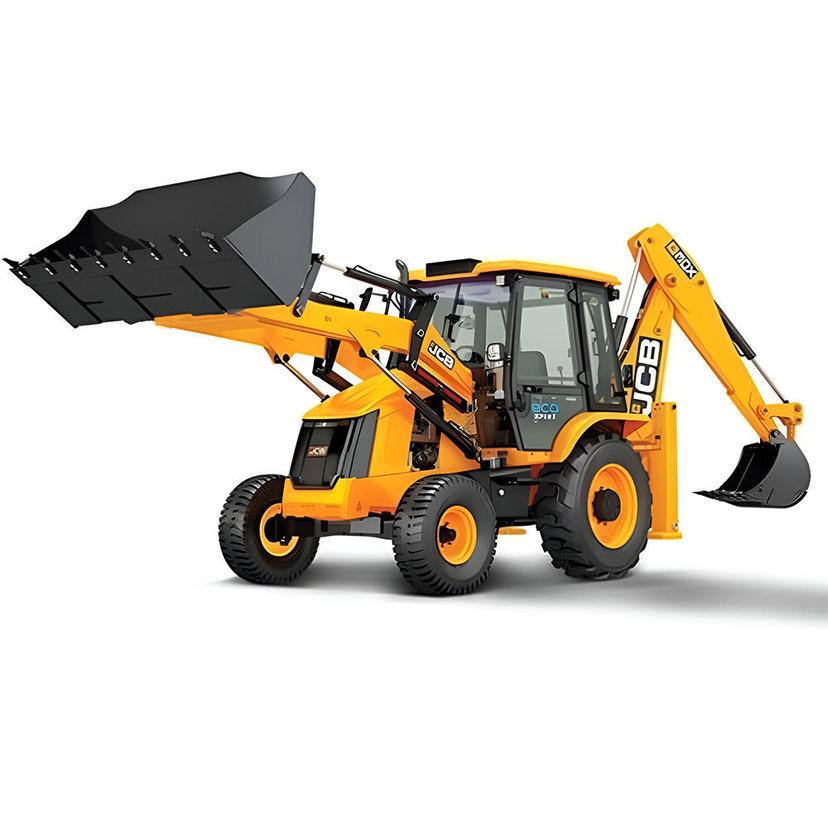

JCB 3DX Backhoe Loader
JCB India Limited
Delhi
The JCB 3DX Backhoe Loader, powered by IntelliPERFORMANCE technology, is designed for exceptional fuel efficiency and performance. With a maximum dig depth of 4.77 meters and a loader shovel capacity of 1.1 cubic meters, it excels in both excavation and material handling tasks. The innovative IntelliPERFORMANCE system optimizes energy management, resulting in a 12% improvement in fuel efficiency compared to previous models. The JCB 3DX also features an auto-stop function to conserve fuel by shutting off the engine after 6 minutes of inactivity. Built for low maintenance, it offers a hydraulic oil change interval of 4,000 hours and reduced maintenance costs by 22%. The spacious cabin includes a comfortable seat, digital display, and operator-friendly features, enhancing overall comfort and productivity.
JCB 3DX Backhoe Loader
JCB India Limited
Delhi
The JCB 3DX Backhoe Loader, powered by IntelliPERFORMANCE technology, is designed for exceptional fuel efficiency and performance. With a maximum dig depth of 4.77 meters and a loader shovel capacity of 1.1 cubic meters, it excels in both excavation and material handling tasks. The innovative IntelliPERFORMANCE system optimizes energy management, resulting in a 12% improvement in fuel efficiency compared to previous models. The JCB 3DX also features an auto-stop function to conserve fuel by shutting off the engine after 6 minutes of inactivity. Built for low maintenance, it offers a hydraulic oil change interval of 4,000 hours and reduced maintenance costs by 22%. The spacious cabin includes a comfortable seat, digital display, and operator-friendly features, enhancing overall comfort and productivity.
Product Description
The JCB 3DX Backhoe Loader, powered by IntelliPERFORMANCE technology, is designed for exceptional fu...
View the full brochure
JCB 3DX Backhoe Loader Comparison with Similar Backhoe Loader
JCB 3DX Backhoe Loader
Engine Brand
JCB
Engine Model
430
Engine Power
49HP
Max Torque
270Nm
Rated Speed
-
Displacement
3.0 L
Fuel Tank Capacity
128 L
Transmission Type
synchroshuttle
Number Of Gears (forward/reverse)
4
Torque Converter Stall Ratio
3.01:1
Max Travel Speed
32km/h
Service Brake Type
Q brakes
Parking Brake Type
Hand operated, disc brakes on rear axle input disc
Steering Type
Power track steering rod system provides equal turn steering & quick response with less operating force
Steering Angle
16°
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7,510Ton
Max Lifting Capacity
1,490 kg
Hydraulic Flow Rate
105L/min
Hydraulic Pressure
160Bar
Max Digging Depth
4.77m
Max Reach At Ground
6.72m
Max Reach At Full Height
0.78m
Max Loading Height
3.37 m
Bucket Capacity
0.26 m³
Bucket Breakout Force
5,700 kgf
Dipper Breakout Force
3,010kgf
Max Dump Height
2.93 m
Max Load Over Height
3.32m
Max Hinge Pin Height
3.54m
Loader Bucket Capacity
1.1 m³
Loader Arm Breakout Force
5,300kgf
Shovel Breakout Force
6,500kgf
Overall Length
5.9m
Overall Width
2.35 m
Overall Height
3.55m
Ground Clearance
360mm
Power Steering
-
Battery Voltage
12 V
Front Axle Oscillation
16°
Standard Tyres (front/rear)
16/12
CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
CAT 424-4 Backhoe Loader
Engine Brand
Cat
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40 km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.045Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.707m
Max Reach At Ground
5.603m
Max Reach At Full Height
-
Max Loading Height
3.934m
Bucket Capacity
1.0m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.766m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.0m³
Loader Arm Breakout Force
5,370kgf
Shovel Breakout Force
6,036kgf
Overall Length
5.681m
Overall Width
2.346m
Overall Height
3.757m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Mahindra Earth Master SX SMART 50 Backhoe Loader
Engine Brand
Mahindra
Engine Model
NEF Engine
Engine Power
49.2HP
Max Torque
235Nm
Rated Speed
2100rpm
Displacement
3.532L
Fuel Tank Capacity
120L
Transmission Type
Four Speed (4 Forward, 4 Reverse), Synchro Shuttle Transmission
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
33.3km/h
Service Brake Type
Hydraulically actuated, oil immersed multi-disc
Parking Brake Type
Hand operated mechanically actuated caliper type brake
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
4.943m
Turning Radius (unbraked)
5.037m
Operating Weight
7.477Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
103L/min
Hydraulic Pressure
21Bar
Max Digging Depth
4.854m
Max Reach At Ground
5.658m
Max Reach At Full Height
3.605m
Max Loading Height
5.793m
Bucket Capacity
0.27m³
Bucket Breakout Force
5146kgf
Dipper Breakout Force
-
Max Dump Height
2.708m
Max Load Over Height
1.350m
Max Hinge Pin Height
-
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4667kgf
Shovel Breakout Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Power Steering
Yes
Battery Voltage
12V 100AhV
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00-16 16 PR / 16.9-28 12 PR
Preet 4R1040Ta2 Backhoe Loader
Engine Brand
Preet
Engine Model
4R1040Ta2
Engine Power
96.7HP
Max Torque
416Nm
Rated Speed
2200rpm
Displacement
4.156L
Fuel Tank Capacity
150L
Transmission Type
4F-2R Manual Power shift
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
36.8km/h
Service Brake Type
Hyd. Actuated, Dual line oil immersed multi disc type wet brakes
Parking Brake Type
Axle Mounted Spring Applied Hydraulic Release (SAHR)
Steering Type
Front wheel power steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
8.5m
Turning Radius (unbraked)
8.8m
Operating Weight
7.845Ton
Max Lifting Capacity
1800kg
Hydraulic Flow Rate
156L/min
Hydraulic Pressure
270Bar
Max Digging Depth
4.07m
Max Reach At Ground
5.4m
Max Reach At Full Height
-
Max Loading Height
4.30m
Bucket Capacity
0.26m³
Bucket Breakout Force
5700kgf
Dipper Breakout Force
3010kgf
Max Dump Height
2.85m
Max Load Over Height
3.33m
Max Hinge Pin Height
3.51m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5300kgf
Shovel Breakout Force
5250kgf
Overall Length
6.0m
Overall Width
2.2m
Overall Height
3.65m
Ground Clearance
440mm
Power Steering
-
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 x 80-18 12 PR / 14.5 x 25 -20 PR
