JCB 155 Skid Steer Loader
JCB India Limited
Haryana
The JCB 155 Skid Steer Loader is a versatile, high-performance machine designed for various construction and material handling tasks. With a 1.68-meter shovel width, it offers excellent maneuverability, allowing operators to work efficiently in tight spaces. The loader boasts a 42 kW engine that ensures reliable power and optimal performance, while the 703 kg operating capacity allows it to handle medium to heavy-duty tasks with ease. Its 0.4 cu.m bucket capacity is perfect for loading and unloading materials, and the 2.26-meter dump height enables easy material disposal at elevated points. Whether you're leveling ground, digging, or moving materials, the JCB 155 Skid Steer Loader offers outstanding productivity and reliability, making it an ideal choice for construction sites and landscaping projects.
JCB 155 Skid Steer Loader
JCB India Limited
Haryana
The JCB 155 Skid Steer Loader is a versatile, high-performance machine designed for various construction and material handling tasks. With a 1.68-meter shovel width, it offers excellent maneuverability, allowing operators to work efficiently in tight spaces. The loader boasts a 42 kW engine that ensures reliable power and optimal performance, while the 703 kg operating capacity allows it to handle medium to heavy-duty tasks with ease. Its 0.4 cu.m bucket capacity is perfect for loading and unloading materials, and the 2.26-meter dump height enables easy material disposal at elevated points. Whether you're leveling ground, digging, or moving materials, the JCB 155 Skid Steer Loader offers outstanding productivity and reliability, making it an ideal choice for construction sites and landscaping projects.
Product Description
The JCB 155 Skid Steer Loader is a versatile, high-performance machine designed for various construc...
View the full brochure
JCB 155 Skid Steer Loader Comparison with Similar Skid Steer Loader
JCB 155 Skid Steer Loader
Engine Brand
Kohle
Engine Model
KDI 1903 TCR
Engine Power
56HP
Max Torque
225Nm
Rated Speed
2600rpm
Fuel Tank Capacity
84L
Emission Standard
STAGE 5
Transmission Type
Hydrostatic
Max Travel Speed
11.9km/h
Operating Weight
3.05Ton
Rated Operating Capacity
703kg
Rated Operating Capacity (optional)
612kg
Max Tipping Load
1406kg
Hydraulic Flow Rate
68.6L/min
Hydraulic Pressure
230Bar
Hydraulic System Capacity
50L
Max Dump Height
2.32m
Max Hinge Pin Height
3.00m
Max Reach At Full Height
0.9m
Reach At Ground Level
0.91m
Bucket Capacity
0.40m³
Loader Arm Breakout Force
-
Dump Angle
40°
Lift Path
Radial
Overall Length
3.49m
Overall Width
1.60m
Overall Height
1.98m
Wheelbase
1.07m
Ground Clearance
230mm
Turning Radius
1.65m
Manitou 1050RT Skid Steer Loader
Engine Brand
Yanmar
Engine Model
3TNV88C-KMSV
Engine Power
34.20HP
Max Torque
109.40Nm
Rated Speed
2800rpm
Fuel Tank Capacity
36L
Emission Standard
-
Transmission Type
-
Max Travel Speed
10.10km/h
Operating Weight
2.14Ton
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
1361kg
Hydraulic Flow Rate
55L/min
Hydraulic Pressure
-
Hydraulic System Capacity
30L
Max Dump Height
2.134m
Max Hinge Pin Height
2.769m
Max Reach At Full Height
-
Reach At Ground Level
-
Bucket Capacity
-
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
2.985m
Overall Width
1.290m
Overall Height
1.816m
Wheelbase
1.283m
Ground Clearance
0.191mm
Turning Radius
-
ACE SS 75 Skid Steer Loader
Engine Brand
ACE / Simpson
Engine Model
A50 / TSJ436
Engine Power
50 / 60 / 75HP
Max Torque
-
Rated Speed
2100 / 2200rpm
Fuel Tank Capacity
55L
Emission Standard
Bharat (TREM) Stage III A / CEV / BSIII / Tier 2 / BS-III
Transmission Type
Infinitely variable hydrostatic drive
Max Travel Speed
10km/h
Operating Weight
2.85Ton
Rated Operating Capacity
750kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1500kg
Hydraulic Flow Rate
82L/min
Hydraulic Pressure
-
Hydraulic System Capacity
65L
Max Dump Height
2.29m
Max Hinge Pin Height
3.15m
Max Reach At Full Height
0.68m
Reach At Ground Level
-
Bucket Capacity
0.4m³
Loader Arm Breakout Force
-
Dump Angle
40°
Lift Path
-
Overall Length
3.62m
Overall Width
1.645m
Overall Height
2.11m
Wheelbase
1.01m
Ground Clearance
185mm
Turning Radius
-

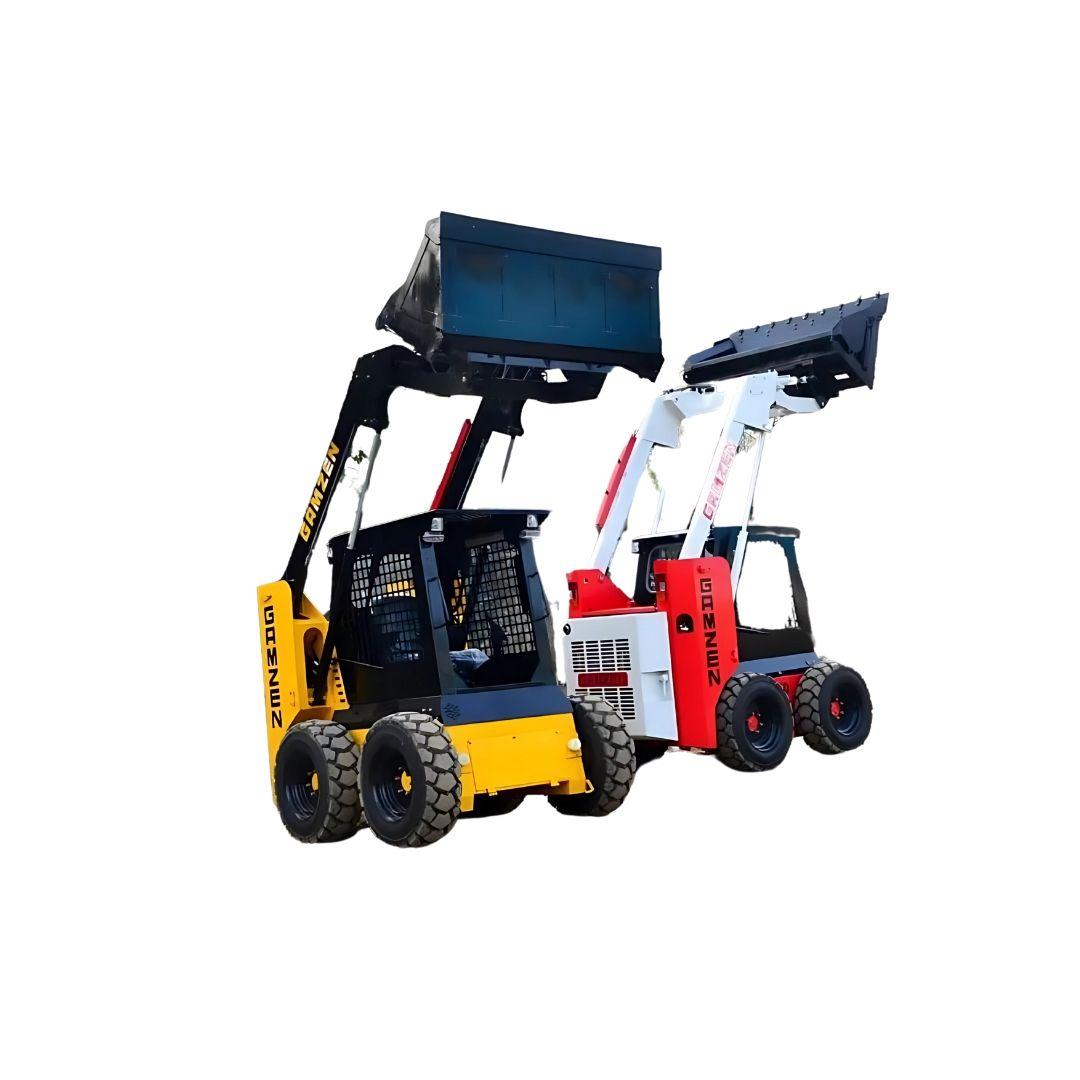

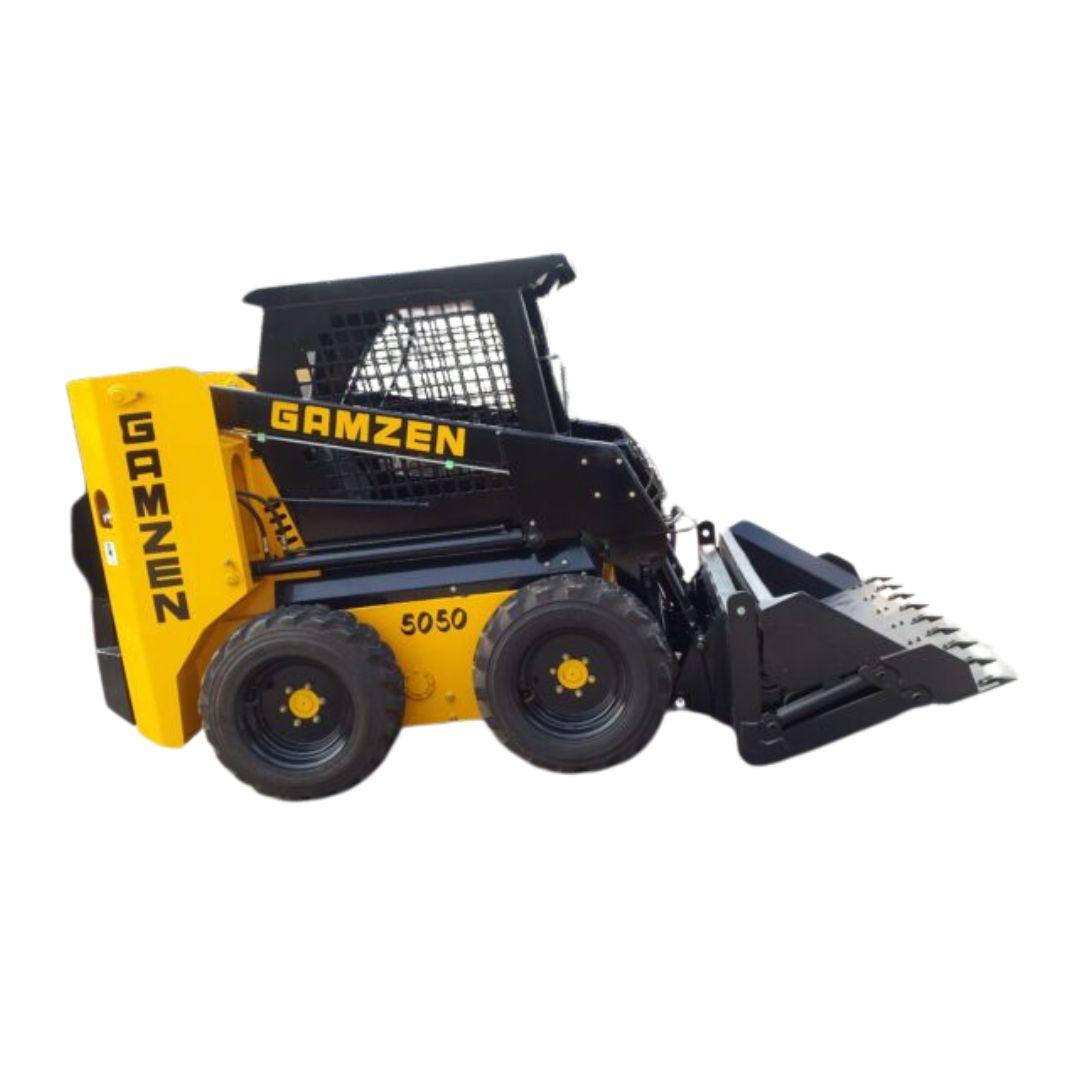

Gamzen 5050 Skid Steer Loader
Engine Brand
Hyundai/Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
11.0km/h
Operating Weight
2.88Ton
Rated Operating Capacity
850kg
Rated Operating Capacity (optional)
-
Max Tipping Load
1680kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
2.236m
Max Hinge Pin Height
2.87m
Max Reach At Full Height
0.686m
Reach At Ground Level
-
Bucket Capacity
0.5m³
Loader Arm Breakout Force
-
Dump Angle
42°
Lift Path
-
Overall Length
3.27m
Overall Width
1.69m
Overall Height
2.025m
Wheelbase
1.045m
Ground Clearance
203mm
Turning Radius
1.858m

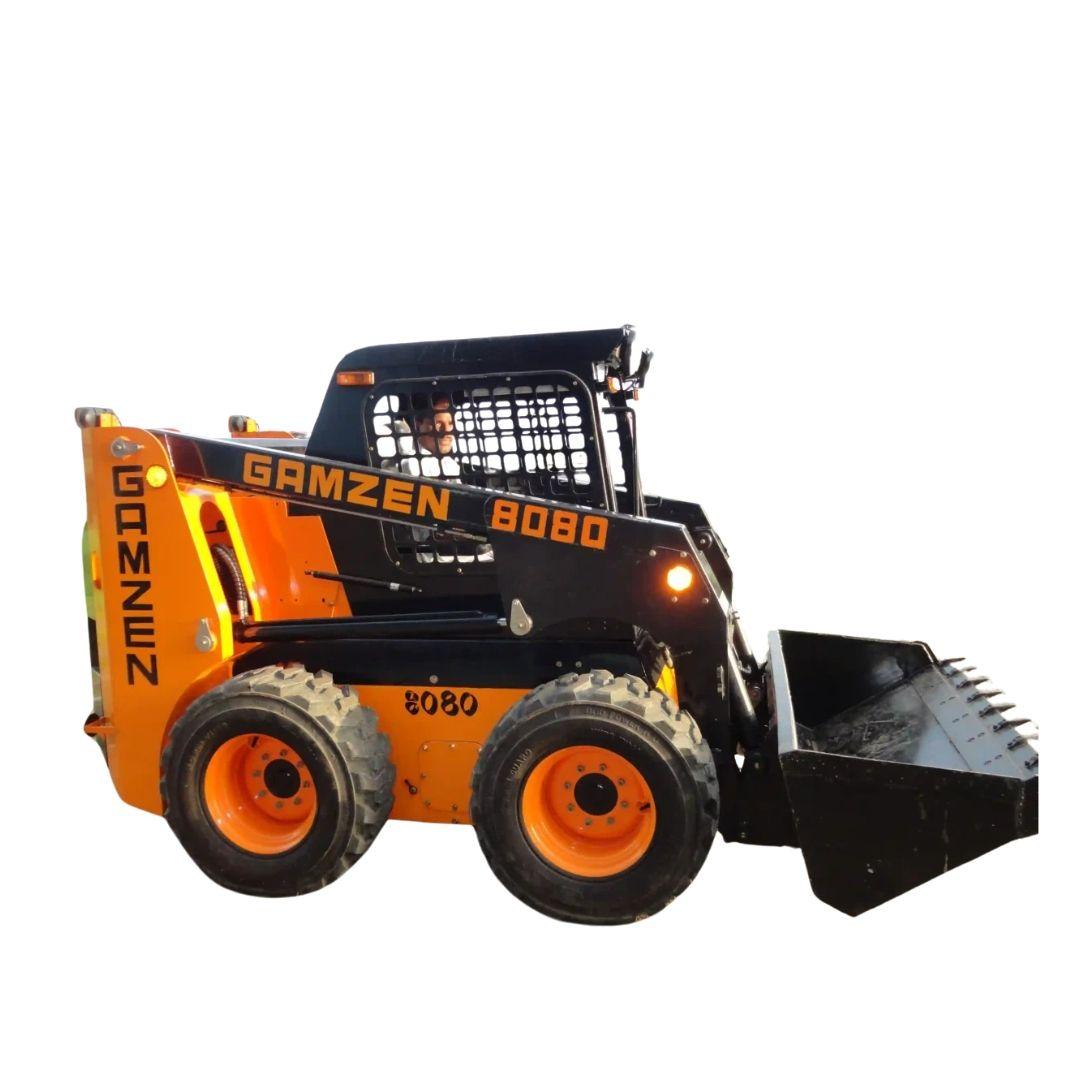

Gamzen 8080 EX Skid Steer Loader
Engine Brand
Cummins
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
-
Emission Standard
-
Transmission Type
-
Max Travel Speed
-
Operating Weight
3.659674Ton
Rated Operating Capacity
1140kg
Rated Operating Capacity (optional)
-
Max Tipping Load
2280kg
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic System Capacity
-
Max Dump Height
3.532m
Max Hinge Pin Height
-
Max Reach At Full Height
1.021m
Reach At Ground Level
-
Bucket Capacity
0.7m³
Loader Arm Breakout Force
-
Dump Angle
38°
Lift Path
-
Overall Length
3509m
Overall Width
1.886m
Overall Height
2.055m
Wheelbase
1.181m
Ground Clearance
195mm
Turning Radius
-
Compare Skid Steer Loader
JCB 155 Skid Steer Loader
Manitou 1050RT Skid Steer Loader
Add any equipment
to compare
Get instant quotation on whatsapp
Connect with "JCB India Limited"
Connect with Seller Instantly
Related Products
More Products from JCB India Limited
About Company
Company Name
JCB India Limited
GST Number
19AAACE0078P1ZA
Since
January 1979
Address
Ballabgarh, Haryana
JCB India Limited is a prominent manufacturer of earthmoving and construction equipment, established in India as a joint venture in 1979. Now a fully owned subsidiary of J.C Bamford Excavators in the UK, JCB operates five advanced factories in India, producing a variety of equipment for both domestic and international markets. Known for introducing Backhoe Loaders to India, JCB now offers 48 models across eight product categories. Its state-of-the-art facilities, including the largest Backhoe Loader factory in Delhi-NCR, and factories in Pune and Jaipur, enable JCB to deliver high-quality equipment globally, supported by a robust dealer network of 650 outlets across India.
