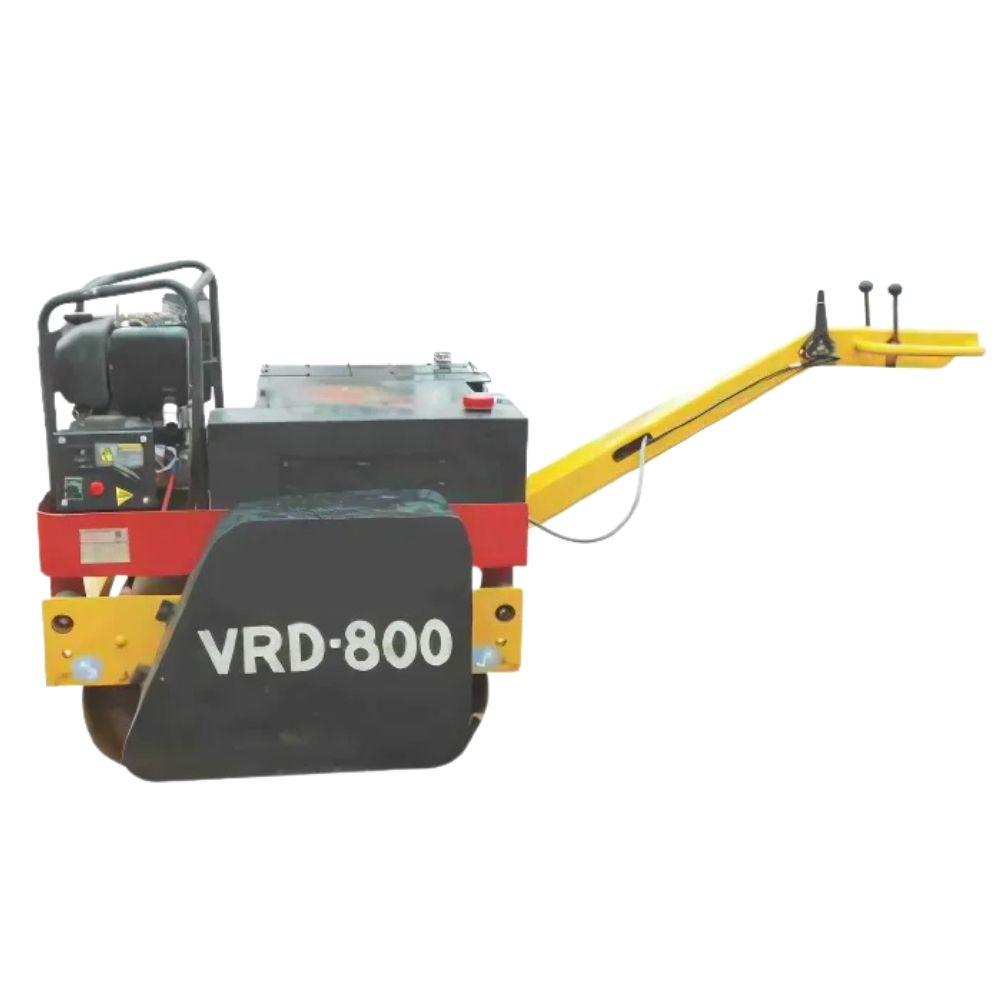

JAYMAC VRD-800 Walk Behind Roller

The JAYMAC VRD-800 Walk Behind Roller is a compact yet powerful solution for small to medium-scale compaction tasks. Featuring a 750 mm drum width and a net mass of 780 kg, this roller is ideal for asphalt compaction, soil leveling, and road patching in confined spaces. Its 18 kN centrifugal force and 65 Hz vibration frequency ensure efficient and uniform compaction, even on challenging surfaces with a gradeability of up to 30%. Powered by a reliable Lombardini/Greaves 15LD441 diesel engine delivering 7 kW at 3600 rpm, the VRD-800 combines fuel efficiency with robust performance. A 30-liter hydraulic system and gravity-fed sprinkler system enhance operational convenience. With forward and reverse speeds of up to 3.20 km/h, it’s perfect for pathways, parking lots, and greenfield maintenance.

Engine Brand
Lombardini / Crompton
Centrifugal Force – Level I
18kN
Drum Width
750mm

Product Description

The JAYMAC VRD-800 Walk Behind Roller is a compact yet powerful solution for small to medium-scale c...

View the full brochure

JAYMAC VRD-800 Walk Behind Roller Comparison with Similar Walk Behind Rollers

JAYMAC VRD-800 Walk Behind Roller

JAYMAC VRD-800 Walk Behind Roller

Get Latest Price
Rating
4.4

Engine Brand

Lombardini / Crompton

Engine Model

-

Engine Power (effective)

-

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

-

Fuel Tank Capacity

-

Fuel Consumption

-

Transmission Type

Hydraulic Controls

Max Travel Speed (fwd)

3.2km/h

Max Travel Speed (rev)

2.2km/h

Gradeability (with Vib)

30%

Gradeability (w/o Vib)

-

Max Weight (with Options)

-

Operating Weight

0.85Ton

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

65Hz

Amplitude

0.45mm

Centrifugal Force – Level I

18kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

78N/mm

Linear Force (dynamic)

-

Overall Length

2.3m

Overall Width

0.85m

Overall Height

1.17m

Drum Width

750mm

Drum Diameter

-

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

30L

Area Compaction Capacity

7–8m²/h

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

-

Exhaust Emissions

-

Currently Viewing
Buildcons RL – 600D Walk Behind Vibratory Roller

Buildcons RL – 600D Walk Behind Vibratory Roller

Get Latest Price
Rating
4.4

Engine Brand

Honda

Engine Model

GX160 5.5HP

Engine Power (effective)

-

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

-

Fuel Tank Capacity

-

Fuel Consumption

-

Transmission Type

Hydraulic

Max Travel Speed (fwd)

0-3km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

30%

Gradeability (w/o Vib)

-

Max Weight (with Options)

-

Operating Weight

-

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

70 Hz

Amplitude

-

Centrifugal Force – Level I

15 kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

-

Overall Width

-

Overall Height

-

Drum Width

-

Drum Diameter

425 X 600mm

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

17 L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

-

Exhaust Emissions

-

Husqvarna LP 6500 Compaction Roller

Husqvarna LP 6500 Compaction Roller

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power (effective)

7.51HP

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

-

Fuel Consumption

-

Transmission Type

-

Max Travel Speed (fwd)

3.33km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

-

Gradeability (w/o Vib)

-

Max Weight (with Options)

0.676Tons

Operating Weight

0.681Ton

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

100dB(A)

Sound Pressure At Operator (lpa)

84dB(A)

Hav (hand Arm Vibration)

-

Vibration Frequency

-

Amplitude

-

Centrifugal Force – Level I

20kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

2.551m

Overall Width

0.714m

Overall Height

1.045m

Drum Width

-

Drum Diameter

-

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

-

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

Electric

Exhaust Emissions

987g/kWh

Redline RW750D Walk-Behind Roller

Redline RW750D Walk-Behind Roller

Get Latest Price
Rating
4.4

Engine Brand

Kohler

Engine Model

KD441

Engine Power (effective)

6.6HP

Engine Power (operating)

8.85HP

Rated Speed

2830rpm

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

5L

Fuel Consumption

-

Transmission Type

Hydrostatic

Max Travel Speed (fwd)

4.5km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

-

Gradeability (w/o Vib)

35%

Max Weight (with Options)

-

Operating Weight

0.745Ton

Hydraulic Oil Capacity

14L

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

60Hz

Amplitude

0.4mm

Centrifugal Force – Level I

22kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

55N/mm

Linear Force (dynamic)

-

Overall Length

1.986 / 2.165m

Overall Width

0.72m

Overall Height

1.35 / 1.725m

Drum Width

650mm

Drum Diameter

400mm

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

Hydrostatic Parking Brake

Water Tank Capacity

58L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

Keyless Electric

Exhaust Emissions

-

JAYMAC VR 3000 Walk Behind Roller

JAYMAC VR 3000 Walk Behind Roller

Get Latest Price
Rating
4.4

Engine Brand

Greaves

Engine Model

5520

Engine Power (effective)

4.96HP

Engine Power (operating)

-

Rated Speed

3600rpm

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

5L

Fuel Consumption

1L/hr

Transmission Type

Hydraulic Controls

Max Travel Speed (fwd)

2.78km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

%

Gradeability (w/o Vib)

20%

Max Weight (with Options)

-

Operating Weight

-

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

32Hz

Amplitude

0.35mm

Centrifugal Force – Level I

14kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

4.41N/mm

Linear Force (dynamic)

-

Overall Length

1.55m

Overall Width

0.76m

Overall Height

1.05m

Drum Width

600mm

Drum Diameter

-

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

15L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

Electric (Keyless)

Exhaust Emissions

-
