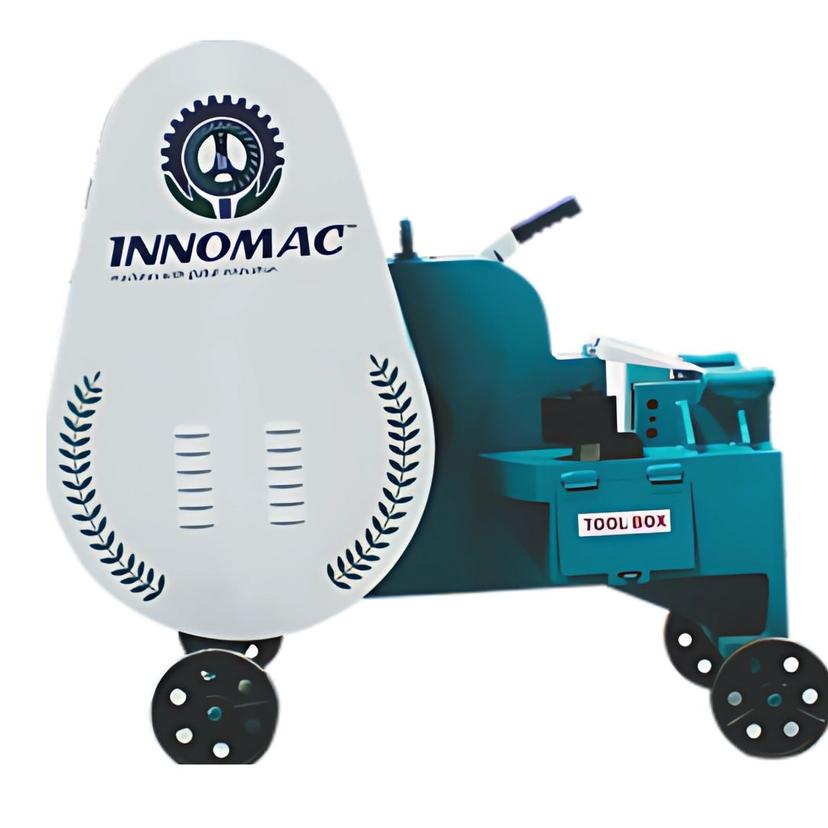

Innomac ICM 55 Rebar Cutting Machine
INNOMAC
Karnataka
The Innomac ICM 55 Rebar Cutting Machine is a high-performance hydraulic cutter engineered for heavy-duty applications in large-scale construction projects. Equipped with a powerful 5.5 kW (7.5 HP) motor operating at 2900 RPM, it delivers a cutting speed of 59 strokes per minute, ensuring efficient and precise cuts. With an overall weight of 810 kg and dimensions of 1215 x 720 x 1130 mm, the ICM 55 offers stability and durability on demanding job sites. Its 7-liter oil volume supports smooth hydraulic operation, reducing maintenance needs and enhancing longevity. Ideal for cutting TMT bars up to 55 mm in diameter, this machine is widely used in infrastructure projects such as bridges, flyovers, and metro rail systems, as well as in precast yards requiring high-capacity, consistent rebar cutting. The ICM 55 is trusted by contractors for its reliability and performance under challenging conditions.
Innomac ICM 55 Rebar Cutting Machine
INNOMAC
Karnataka
The Innomac ICM 55 Rebar Cutting Machine is a high-performance hydraulic cutter engineered for heavy-duty applications in large-scale construction projects. Equipped with a powerful 5.5 kW (7.5 HP) motor operating at 2900 RPM, it delivers a cutting speed of 59 strokes per minute, ensuring efficient and precise cuts. With an overall weight of 810 kg and dimensions of 1215 x 720 x 1130 mm, the ICM 55 offers stability and durability on demanding job sites. Its 7-liter oil volume supports smooth hydraulic operation, reducing maintenance needs and enhancing longevity. Ideal for cutting TMT bars up to 55 mm in diameter, this machine is widely used in infrastructure projects such as bridges, flyovers, and metro rail systems, as well as in precast yards requiring high-capacity, consistent rebar cutting. The ICM 55 is trusted by contractors for its reliability and performance under challenging conditions.
- •Ideal for cutting TMT bars up to 55mm in large-scale infrastructure projects.
- •Trusted by contractors for its durability and low-maintenance performance on-site.
- •Preferred in precast yards for rapid and precise bar cutting operations.
- •Efficient solution for high-volume rebar cutting in bridges, flyovers, and metro systems.
- •Ensures smooth and consistent cuts in demanding construction environments.
Product Description
The Innomac ICM 55 Rebar Cutting Machine is a high-performance hydraulic cutter engineered for heavy...
View the full brochure
Innomac ICM 55 Rebar Cutting Machine Comparison with Similar Bar Cutting Machine
Innomac ICM 55 Rebar Cutting Machine
Rebar Cutting Capacity
-
Cutting Speed
-
Motor Power
-
Motor Speed
-
Voltage
-
Phase
-
Blade Size
-
Oil Volume
-
Power Protection Feature
-
Overall Length
-
Overall Width
-
Overall Height
-
Operating Weight
-
Hourly Production Capacity
-
JAYMAC C-52 Rebar Cutting Machine
Rebar Cutting Capacity
36–52mm
Cutting Speed
47cuts/min
Motor Power
7.5HP
Motor Speed
-
Voltage
-
Phase
-
Blade Size
-
Oil Volume
-
Power Protection Feature
-
Overall Length
1.300m
Overall Width
0.710m
Overall Height
0.940m
Operating Weight
0.77Ton
Hourly Production Capacity
-
Sona GQ50 Rebar Cutting machine
Rebar Cutting Capacity
40mm
Cutting Speed
32cuts/min
Motor Power
5.3HP
Motor Speed
2800rpm
Voltage
415V
Phase
-
Blade Size
90mm
Oil Volume
-
Power Protection Feature
Phase Loss Preventer
Overall Length
1.42m
Overall Width
0.83m
Overall Height
0.487m
Operating Weight
-
Hourly Production Capacity
-
HSN Machinery GQ45A Rebar Cutting Machine
Rebar Cutting Capacity
6–32mm
Cutting Speed
28cuts/min
Motor Power
4.02HP
Motor Speed
2800rpm
Voltage
380/415V
Phase
-
Blade Size
83×83×25mm
Oil Volume
-
Power Protection Feature
Phase Loss Preventer
Overall Length
1.325m
Overall Width
0.440m
Overall Height
0.835m
Operating Weight
0.34Ton
Hourly Production Capacity
-
HSN Machinery GQ40 Rebar Cutting Machine
Rebar Cutting Capacity
6–32mm
Cutting Speed
32cuts/min
Motor Power
4.02HP
Motor Speed
2800rpm
Voltage
380/415V
Phase
-
Blade Size
83×83×25mm
Oil Volume
-
Power Protection Feature
Phase Loss Preventer
Overall Length
1.420m
Overall Width
0.440m
Overall Height
0.835m
Operating Weight
0.380Ton
Hourly Production Capacity
-
