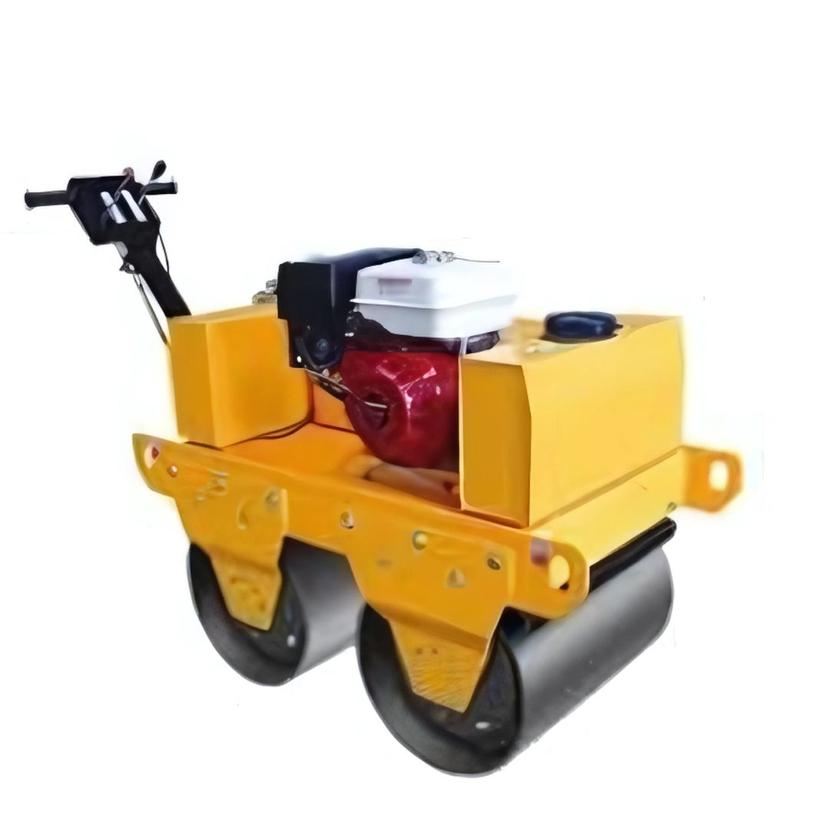

Icon FVR600 Double Drum Walk Behind Roller
ICON Industries
Gujarat
The Icon FVR600 Double Drum Walk Behind Roller is a powerful and compact compaction machine ideal for a wide range of roadwork and surface preparation tasks. Equipped with a hydraulic drive system, this roller delivers smooth operation with minimal downtime and no gearbox failures. Powered by an 8.4 HP petrol engine, it offers a vibration frequency of 60 Hz, centrifugal force of 20 kN, and rolling width of 650 mm — making it perfect for asphalt patching, paver road construction, and trench edge compaction. The 600 mm wide drum and 4 km/h working speed ensure optimal performance in confined spaces. With a 35-liter water tank, rugged steel build, and maintenance-free design, the FVR600 stands out as a reliable choice for efficient and cost-effective earth compaction tasks.
Icon FVR600 Double Drum Walk Behind Roller
ICON Industries
Gujarat
The Icon FVR600 Double Drum Walk Behind Roller is a powerful and compact compaction machine ideal for a wide range of roadwork and surface preparation tasks. Equipped with a hydraulic drive system, this roller delivers smooth operation with minimal downtime and no gearbox failures. Powered by an 8.4 HP petrol engine, it offers a vibration frequency of 60 Hz, centrifugal force of 20 kN, and rolling width of 650 mm — making it perfect for asphalt patching, paver road construction, and trench edge compaction. The 600 mm wide drum and 4 km/h working speed ensure optimal performance in confined spaces. With a 35-liter water tank, rugged steel build, and maintenance-free design, the FVR600 stands out as a reliable choice for efficient and cost-effective earth compaction tasks.
Product Description
The Icon FVR600 Double Drum Walk Behind Roller is a powerful and compact compaction machine ideal fo...
View the full brochure
Icon FVR600 Double Drum Walk Behind Roller Comparison with Similar Walk Behind Rollers
Icon FVR600 Double Drum Walk Behind Roller
Engine Brand
ICON
Engine Model
IVR600 / FVR600
Engine Power (effective)
8.4HP
Engine Power (operating)
-
Rated Speed
3600rpm
Displacement
-
Fuel Type
Petrol
Fuel Tank Capacity
35L
Fuel Consumption
-
Transmission Type
Hydraulic
Max Travel Speed (fwd)
4km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
30%
Gradeability (w/o Vib)
-
Max Weight (with Options)
-
Operating Weight
0.65Ton
Hydraulic Oil Capacity
-
Hydraulic Fluid Type
-
Sound Power Level (lwa)
-
Sound Pressure At Operator (lpa)
-
Hav (hand Arm Vibration)
-
Vibration Frequency
60Hz
Amplitude
Infinitely Variablemm
Centrifugal Force – Level I
30kN
Centrifugal Force – Level Ii
-
Linear Force (static) Front
-
Linear Force (dynamic)
-
Overall Length
2.460m
Overall Width
0.750m
Overall Height
1.800m
Drum Width
600mm
Drum Diameter
-
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
35L
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
-
Exhaust Emissions
-
Buildcons RL – 600D Walk Behind Vibratory Roller
Engine Brand
Honda
Engine Model
GX160 5.5HP
Engine Power (effective)
-
Engine Power (operating)
-
Rated Speed
-
Displacement
-
Fuel Type
-
Fuel Tank Capacity
-
Fuel Consumption
-
Transmission Type
Hydraulic
Max Travel Speed (fwd)
0-3km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
30%
Gradeability (w/o Vib)
-
Max Weight (with Options)
-
Operating Weight
-
Hydraulic Oil Capacity
-
Hydraulic Fluid Type
-
Sound Power Level (lwa)
-
Sound Pressure At Operator (lpa)
-
Hav (hand Arm Vibration)
-
Vibration Frequency
70 Hz
Amplitude
-
Centrifugal Force – Level I
15 kN
Centrifugal Force – Level Ii
-
Linear Force (static) Front
-
Linear Force (dynamic)
-
Overall Length
-
Overall Width
-
Overall Height
-
Drum Width
-
Drum Diameter
425 X 600mm
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
17 L
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
-
Exhaust Emissions
-
Sona YH600 Walk Behind Roller
Engine Brand
Greaves Engine 1510
Engine Model
-
Engine Power (effective)
10HP
Engine Power (operating)
-
Rated Speed
-
Displacement
-
Fuel Type
Diesel
Fuel Tank Capacity
-
Fuel Consumption
0.8L/hr
Transmission Type
-
Max Travel Speed (fwd)
0 – 4km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
30%
Gradeability (w/o Vib)
-
Max Weight (with Options)
-
Operating Weight
0.55Ton
Hydraulic Oil Capacity
6L
Hydraulic Fluid Type
-
Sound Power Level (lwa)
-
Sound Pressure At Operator (lpa)
-
Hav (hand Arm Vibration)
-
Vibration Frequency
75Hz
Amplitude
-
Centrifugal Force – Level I
20kN
Centrifugal Force – Level Ii
20kN
Linear Force (static) Front
-
Linear Force (dynamic)
-
Overall Length
1.35m
Overall Width
0.94m
Overall Height
1.22m
Drum Width
600mm
Drum Diameter
600mm
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
35L
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
-
Exhaust Emissions
-
Sona YH650 Walk Behind Double Drum Roller
Engine Brand
Greaves Engine 1510
Engine Model
-
Engine Power (effective)
10HP
Engine Power (operating)
10HP
Rated Speed
-
Displacement
-
Fuel Type
Diesel
Fuel Tank Capacity
-
Fuel Consumption
1.35L/hr
Transmission Type
Mechanical
Max Travel Speed (fwd)
0–4km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
30%
Gradeability (w/o Vib)
30%
Max Weight (with Options)
-
Operating Weight
0.55Ton
Hydraulic Oil Capacity
6L
Hydraulic Fluid Type
-
Sound Power Level (lwa)
-
Sound Pressure At Operator (lpa)
-
Hav (hand Arm Vibration)
-
Vibration Frequency
75Hz
Amplitude
-
Centrifugal Force – Level I
20kN
Centrifugal Force – Level Ii
-
Linear Force (static) Front
-
Linear Force (dynamic)
-
Overall Length
1.35m
Overall Width
0.94m
Overall Height
1.22m
Drum Width
650mm
Drum Diameter
-
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
-
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
-
Exhaust Emissions
-
Husqvarna LP 6500 Compaction Roller
Engine Brand
-
Engine Model
-
Engine Power (effective)
7.51HP
Engine Power (operating)
-
Rated Speed
-
Displacement
-
Fuel Type
Diesel
Fuel Tank Capacity
-
Fuel Consumption
-
Transmission Type
-
Max Travel Speed (fwd)
3.33km/h
Max Travel Speed (rev)
-
Gradeability (with Vib)
-
Gradeability (w/o Vib)
-
Max Weight (with Options)
0.676Tons
Operating Weight
0.681Ton
Hydraulic Oil Capacity
-
Hydraulic Fluid Type
-
Sound Power Level (lwa)
100dB(A)
Sound Pressure At Operator (lpa)
84dB(A)
Hav (hand Arm Vibration)
-
Vibration Frequency
-
Amplitude
-
Centrifugal Force – Level I
20kN
Centrifugal Force – Level Ii
-
Linear Force (static) Front
-
Linear Force (dynamic)
-
Overall Length
2.551m
Overall Width
0.714m
Overall Height
1.045m
Drum Width
-
Drum Diameter
-
Wheelbase
-
Drum Sheet Thickness
-
Side Clearance (l/r)
-
Curb Clearance (l/r)
-
Brake Type
-
Water Tank Capacity
-
Area Compaction Capacity
-
Exciter Oil Type
-
Grease For Bearings
-
Starter Type
Electric
Exhaust Emissions
987g/kWh
Compare Walk Behind Rollers
Icon FVR600 Double Drum Walk Behind Roller
Buildcons RL – 600D Walk Behind Vibratory Roller
Add any equipment
to compare
