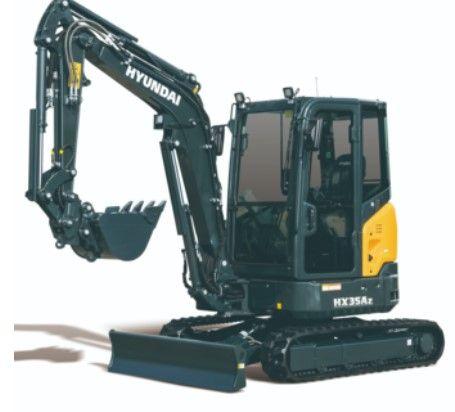

Hyundai HX35AZ Mini Excavator
HD Hyundai Construction Equipment India Private Limited
Maharashtra
The Hyundai HX35AZ Mini Excavator is a versatile and compact machine designed for a variety of applications, making it perfect for both small-scale construction and landscaping projects. With a gross power of 25.2 PS at 2200 rpm and an operating weight ranging from 3790 to 4130 kg, this excavator delivers impressive performance in tight spaces. Its 0.11 m³ bucket capacity allows for efficient digging, grading, and material handling, making it suitable for utility installations like trenching for water, gas, and electrical lines. Additionally, the HX35AZ is ideal for demolition tasks in urban areas, offering the power and precision needed to navigate confined environments. Its lightweight and agile design also make it an excellent choice for agricultural applications, such as digging irrigation ditches and clearing debris, enhancing productivity across various sectors.
Hyundai HX35AZ Mini Excavator
HD Hyundai Construction Equipment India Private Limited
Maharashtra
The Hyundai HX35AZ Mini Excavator is a versatile and compact machine designed for a variety of applications, making it perfect for both small-scale construction and landscaping projects. With a gross power of 25.2 PS at 2200 rpm and an operating weight ranging from 3790 to 4130 kg, this excavator delivers impressive performance in tight spaces. Its 0.11 m³ bucket capacity allows for efficient digging, grading, and material handling, making it suitable for utility installations like trenching for water, gas, and electrical lines. Additionally, the HX35AZ is ideal for demolition tasks in urban areas, offering the power and precision needed to navigate confined environments. Its lightweight and agile design also make it an excellent choice for agricultural applications, such as digging irrigation ditches and clearing debris, enhancing productivity across various sectors.
Product Description
The Hyundai HX35AZ Mini Excavator is a versatile and compact machine designed for a variety of appli...
View the full brochure
Hyundai HX35AZ Mini Excavator Comparison with Similar Mini Excavators

Hyundai HX35AZ Mini Excavator
Engine Brand
Kubota
Bucket Breakout Force
-
Engine Model
D 1703
Engine Power
-
Max Torque
97Nm
Rated Speed
1320 rpm
Displacement
-
Fuel Tank Capacity
46.8L
Hydraulic Flow Rate
2 x 37.4 + 23.1L/min
Hydraulic Pressure (implement Circuit)
230kgf/cm²
Hydraulic Pressure (swing Circuit)
210kgf/cm²
Hydraulic Pressure (travel Circuit)
230kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
4.13Ton
Max Digging Depth
3.28m
Max Reach At Ground
5.46m
Max Digging Height
5.02m
Max Dumping Height
3.61m
Bucket Capacity
0.11m³
Arm Crowd Force
1623kgf
Overall Length
4.7m
Overall Height
-
Ground Clearance
383mm

Empower Mini Excavator
Engine Brand
-
Bucket Breakout Force
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-

Tata Hitachi ZAXIS 33U Mini Excavator
Engine Brand
Yanmar
Bucket Breakout Force
-
Engine Model
EDM-3TNV88
Engine Power
28.41HP
Max Torque
105.5Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Hydraulic Flow Rate
2×38.4L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
170kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.65Ton
Max Digging Depth
3.13m
Max Reach At Ground
5.04m
Max Digging Height
-
Max Dumping Height
3.31m
Bucket Capacity
0.09m³
Arm Crowd Force
1499kgf
Overall Length
4.45m
Overall Height
2.47m
Ground Clearance
270mm

Kobelco SK30SR Mini Excavator
Engine Brand
YANMAR
Bucket Breakout Force
2,823.4 kgf
Engine Model
3TNV82A-8
Engine Power
24.27 HP
Max Torque
79.4Nm
Rated Speed
2400rpm
Displacement
-
Fuel Tank Capacity
42L
Hydraulic Flow Rate
96.0L/min
Hydraulic Pressure (implement Circuit)
234.6 kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.57 / 3.41 Ton
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
0.12m³
Arm Crowd Force
1,947.9 / 1,682.0 kgf
Overall Length
-
Overall Height
-
Ground Clearance
-

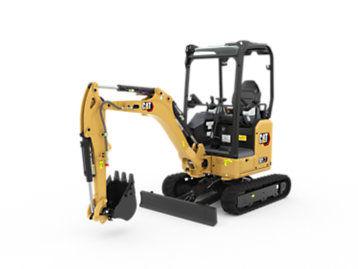

CAT 303.5 CR Mini Excavator
Engine Brand
Caterpillar
Bucket Breakout Force
-
Engine Model
C1.7
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.7L
Fuel Tank Capacity
45L
Hydraulic Flow Rate
98.4L/min
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.19Ton
Max Digging Depth
3.1m
Max Reach At Ground
5.38m
Max Digging Height
5.02m
Max Dumping Height
-
Bucket Capacity
-
Arm Crowd Force
-
Overall Length
4.85m
Overall Height
2.48m
Ground Clearance
310mm
