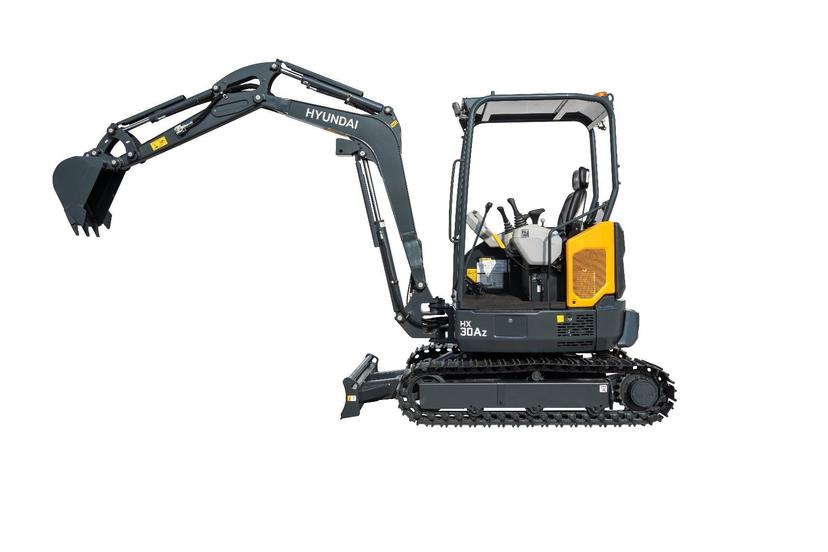

Hyundai HX30AZ Mini Excavator
HD Hyundai Construction Equipment India Private Limited
Maharashtra
The Hyundai HX30AZ Mini Excavator is engineered for high performance in confined spaces, making it ideal for urban construction, landscaping, and utility installation projects. Powered by a Kubota D1305 Tier-4 Final engine delivering 25.2 PS at 2,400 rpm, it ensures fuel efficiency and low emissions. Its zero-tail swing design allows for seamless operation in tight areas, while the advanced hydraulic system provides high digging forces for efficient trenching and grading. The spacious operator canopy offers enhanced visibility and comfort, featuring a 5-inch LCD display for real-time monitoring. Built with durable components and extended maintenance intervals, the HX30AZ minimizes downtime and reduces operating costs. Its compact size and robust capabilities make it a versatile choice for contractors seeking reliability and efficiency in a mini excavator.
Hyundai HX30AZ Mini Excavator
HD Hyundai Construction Equipment India Private Limited
Maharashtra
The Hyundai HX30AZ Mini Excavator is engineered for high performance in confined spaces, making it ideal for urban construction, landscaping, and utility installation projects. Powered by a Kubota D1305 Tier-4 Final engine delivering 25.2 PS at 2,400 rpm, it ensures fuel efficiency and low emissions. Its zero-tail swing design allows for seamless operation in tight areas, while the advanced hydraulic system provides high digging forces for efficient trenching and grading. The spacious operator canopy offers enhanced visibility and comfort, featuring a 5-inch LCD display for real-time monitoring. Built with durable components and extended maintenance intervals, the HX30AZ minimizes downtime and reduces operating costs. Its compact size and robust capabilities make it a versatile choice for contractors seeking reliability and efficiency in a mini excavator.
Product Description
The Hyundai HX30AZ Mini Excavator is engineered for high performance in confined spaces, making it i...
View the full brochure
Hyundai HX30AZ Mini Excavator Comparison with Similar Mini Excavators
Hyundai HX30AZ Mini Excavator
Engine Brand
Kubota
Engine Model
D1305
Engine Power
25.2HP
Max Torque
81.3Nm
Rated Speed
2400rpm
Displacement
1.642L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
99L/min
Hydraulic Pressure (implement Circuit)
185.5884kgf/cm²
Hydraulic Pressure (swing Circuit)
210.0615kgf/cm²
Hydraulic Pressure (travel Circuit)
244.732kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.6901kgf/cm²
Max Digging Depth
2.44 m
Max Reach At Ground
5.85m
Max Digging Height
4.01m
Max Dumping Height
3.44 m
Bucket Capacity
0.12m³
Bucket Breakout Force
3099.9373kgf
Arm Crowd Force
1855.884kgf
Overall Length
4.905m
Overall Height
2.452m
Ground Clearance
0.28mm
Operating Weight
3.739Ton
Empower Mini Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-
Operating Weight
-
Tata Hitachi ZAXIS 33U Mini Excavator
Engine Brand
Yanmar
Engine Model
EDM-3TNV88
Engine Power
28.41HP
Max Torque
105.5Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Hydraulic Flow Rate
2×38.4L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
170kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Max Digging Depth
3.13m
Max Reach At Ground
5.04m
Max Digging Height
-
Max Dumping Height
3.31m
Bucket Capacity
0.09m³
Bucket Breakout Force
-
Arm Crowd Force
1499kgf
Overall Length
4.45m
Overall Height
2.47m
Ground Clearance
270mm
Operating Weight
3.65Ton
Kobelco SK30SR Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV82A-8
Engine Power
24.27 HP
Max Torque
79.4Nm
Rated Speed
2400rpm
Displacement
-
Fuel Tank Capacity
42L
Hydraulic Flow Rate
96.0L/min
Hydraulic Pressure (implement Circuit)
234.6 kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
0.12m³
Bucket Breakout Force
2,823.4 kgf
Arm Crowd Force
1,947.9 / 1,682.0 kgf
Overall Length
-
Overall Height
-
Ground Clearance
-
Operating Weight
3.57 / 3.41 Ton
CAT 303.5 CR Mini Excavator
Engine Brand
Caterpillar
Engine Model
C1.7
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.7L
Fuel Tank Capacity
45L
Hydraulic Flow Rate
98.4L/min
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Max Digging Depth
3.1m
Max Reach At Ground
5.38m
Max Digging Height
5.02m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
4.85m
Overall Height
2.48m
Ground Clearance
310mm
Operating Weight
4.19Ton
