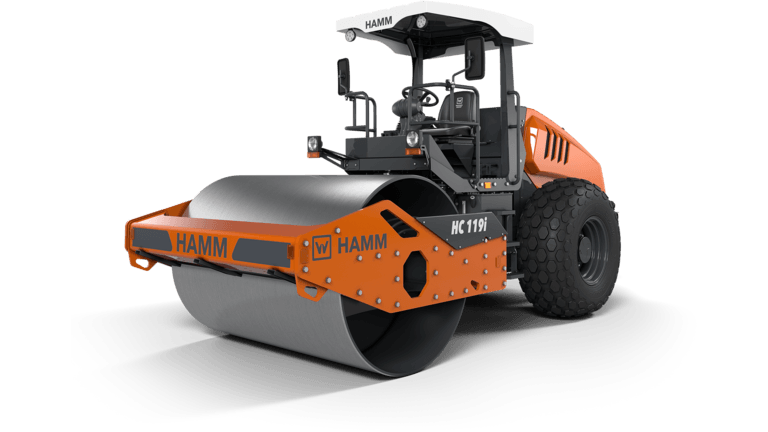

Hamm HC 119i Tandem Roller
Hamm HC 119i Tandem Roller 1

Hamm HC 119i Tandem Roller

(4.8)

Get Latest Price

🔒 Your information is secure and will only be used to contact you about this product.

Product Overview

Model Number

HC 119i

Brand

Hamm

Region

Product Description

The Hamm HC 119i Tandem Roller with Smooth Drum is a versatile and powerful machine designed for a w...

Specifications

SpecificationValue
General Specifications
Series NameHC
Model NameHC 119i
DescriptionCompactor with smooth drum
Exhaust Emissions CategoryCEV IV
Static Linear Load Front28.1 kg/cm
Empty Weight Without Cab Without ROPS10,615 kg
Operating Weight With Sunroof11,190 kg
Axle Load Rear5,175 kg
Axle Load Front6,015 kg
Total Width2,282 mm
Total Length5,926 mm
Maximum Working Width2,140 mm
Centre Distance2,992 mm
Ground Clearance Centre448 mm
Turning Radius Inside3,883 mm
Total Height3,061 mm
Slope Angle Rear27°
Slope Angle Front45°
Drum Diameter Front1,504 mm
Drum Width Front2,140 mm
Drum Type FrontSmooth
Drum Thickness Front25 mm
Number of Tyres Rear2
Tyre Size RearAW 23.1-26 8 PR
Width Over Tyres Rear2,140 mm
ManufacturerCUMMINS
Engine ModelQSB 4.5 CIVD1
Cylinders Quantity4
Exhaust Emission StandardCEV IV
Power ISO 14396 RPM2,200 rpm
Power ISO 14396 HP122 HP
Power ISO 14396 kW90 kW
Power SAE J1349 RPM2,200 rpm
Power SAE J1349 HP121 HP
Power SAE J1349 kW90 kW

Product Applications

  • •The compactor is designed to compact soil in trenches for utility installation, ensuring proper soil settlement.
  • •It effectively smooths surfaces in parking lots and driveways, ensuring excellent load-bearing capacity.
  • •Its smooth drum makes it perfect for achieving a uniform, dense surface on asphalt paving.
