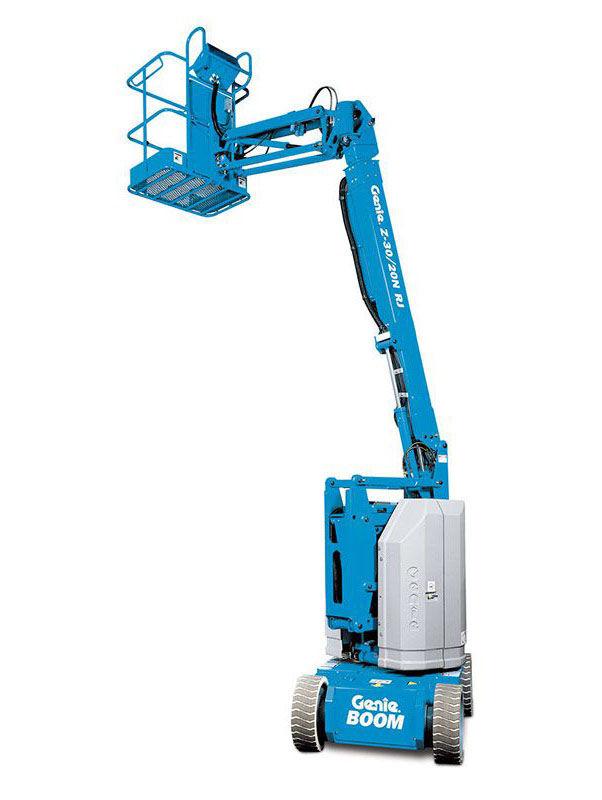

Genie Z™-30/20 N RJ Articulating Boom Lift
The Genie Z™-30/20 N RJ Articulating Boom Lift offers a versatile, emission-free solution for working in sensitive environments, combining powerful performance with quiet operation. Its compact chassis and zero tail swing make it ideal for navigating narrow aisles and confined spaces, allowing you to access hard-to-reach areas effortlessly. The model features a unique rotating jib with 180° of horizontal rotation, providing enhanced flexibility for various tasks. With a maximum working height of 35 ft 2 in (10.89 m) and a horizontal reach of 20 ft 6 in (6.25 m), this lift excels in a range of applications, from indoor maintenance to outdoor projects. It also boasts a 35% gradeability for smooth movement on uneven terrain, ensuring maximum efficiency in demanding environments.
Genie Z™-30/20 N RJ Articulating Boom Lift
The Genie Z™-30/20 N RJ Articulating Boom Lift offers a versatile, emission-free solution for working in sensitive environments, combining powerful performance with quiet operation. Its compact chassis and zero tail swing make it ideal for navigating narrow aisles and confined spaces, allowing you to access hard-to-reach areas effortlessly. The model features a unique rotating jib with 180° of horizontal rotation, providing enhanced flexibility for various tasks. With a maximum working height of 35 ft 2 in (10.89 m) and a horizontal reach of 20 ft 6 in (6.25 m), this lift excels in a range of applications, from indoor maintenance to outdoor projects. It also boasts a 35% gradeability for smooth movement on uneven terrain, ensuring maximum efficiency in demanding environments.
Product Description
The Genie Z™-30/20 N RJ Articulating Boom Lift offers a versatile, emission-free solution for workin...
View the full brochure
Genie Z™-30/20 N RJ Articulating Boom Lift Comparison with Similar Articulating Boom Lift

Genie Z™-30/20 N RJ Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
15.1L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.8km/h
Max Travel Speed (r)
1.1km/h
Gradeability
35%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
6.605kg
Max Platform Capacity
227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
5.18m
Overall Width
1.19m
Overall Height
2.01m
Ground Clearance
90mm
Platform Height
8.89m
Horizontal Outreach
6.25m
Up And Over Clearance
3.86m
Platform Rotation
180°
Battery Voltage / Capacity
48V
Turning Radius (inside)
0.91m

SANY SPA16AC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
2WD
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.0km/h
Max Travel Speed (r)
0.8 km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.10 m
Operating Weight
7.0 kg
Max Platform Capacity
0.248kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
7.15 m
Overall Width
2.00m
Overall Height
2.02m
Ground Clearance
170mm
Platform Height
15.7m
Horizontal Outreach
9.00m
Up And Over Clearance
-
Platform Rotation
180°
Battery Voltage / Capacity
51.2 / 315 V
Turning Radius (inside)
1.55m

Haulotte HA16 RTJ Articulating Boom
Engine Brand
Kubota / Perkins
Engine Model
Stage 5 (EU) / Stage 3A (NRC)
Engine Power
18.5 / 26.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
Hydrostatic
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.2km/h
Max Travel Speed (r)
-
Gradeability
40%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Steering Angle
5°
Oscillation Angle
-
Turning Radius
4.5m
Operating Weight
6095 kg
Max Platform Capacity
230kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
6.75m
Overall Width
2.3m
Overall Height
2.3m
Ground Clearance
370mm
Platform Height
14m
Horizontal Outreach
8.3m
Up And Over Clearance
7.65m
Platform Rotation
165°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-

Haulotte HA20 RTJ PRO Articulating Boom
Engine Brand
KUBOTA
Engine Model
-
Engine Power
18.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
5km/h
Max Travel Speed (r)
-
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
4 wheel drive and 4 wheel steering (PRO model)
Steering Angle
-
Oscillation Angle
4 (option 6°) °
Turning Radius
5.2m
Operating Weight
9.43kg
Max Platform Capacity
250kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
8.60m
Overall Width
2.43m
Overall Height
2.47m
Ground Clearance
360mm
Platform Height
18.5m
Horizontal Outreach
11.9m
Up And Over Clearance
8.5m
Platform Rotation
180°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-

JLG 340AJ Boom Lift
Engine Brand
PSI/GM / Kubota
Engine Model
L4 EFI / D1105
Engine Power
21.4 / 18.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
49.21L
Hydraulic Oil Capacity
77.9L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.98km/h
Max Travel Speed (r)
-
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
1.52m
Operating Weight
4615kg
Max Platform Capacity
227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Platform Height
10.33m
Horizontal Outreach
6.06m
Up And Over Clearance
5.17m
Platform Rotation
180°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-
