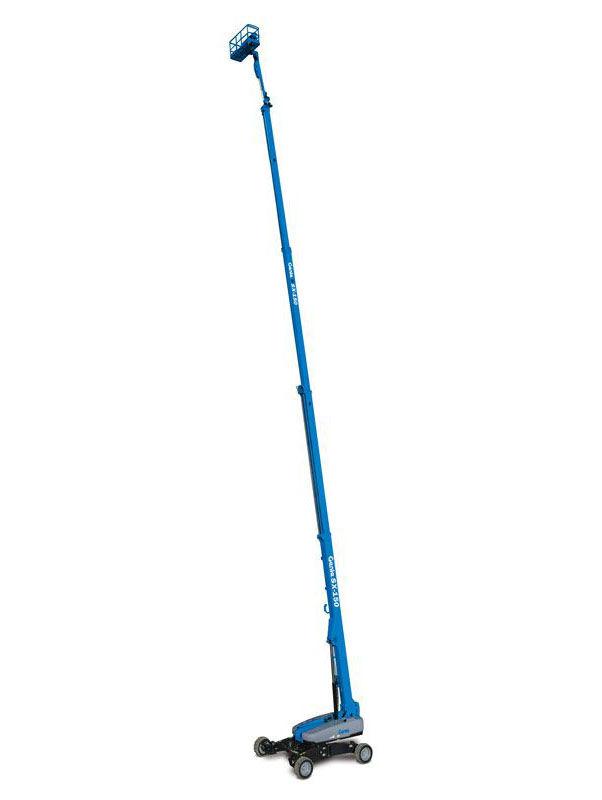

Genie SX-150 Telescopic Boom Lift

The Genie SX-150 Telescopic Boom Lift is designed to provide exceptional vertical reach and superior performance for a variety of demanding applications. With a maximum platform height of 46.33 meters and a horizontal outreach of 24.38 meters, this powerful lift is ideal for high-rise construction projects, maintenance tasks, and outdoor industrial operations. Its 360° turntable rotation offers maximum flexibility and precise positioning in tight spaces. The Genie SX-150 is equipped with a 74 HP diesel engine, ensuring reliable power for heavy-duty work environments. Whether you're accessing hard-to-reach areas on tall structures or working on complex outdoor projects, this machine delivers unmatched stability, efficiency, and safety. With a 35% gradeability and advanced safety features, the SX-150 is perfect for both construction and maintenance applications, ensuring productivity and ease of operation at great heights.

Product Description

The Genie SX-150 Telescopic Boom Lift is designed to provide exceptional vertical reach and superior...

View the full brochure

Genie SX-150 Telescopic Boom Lift Comparison with Similar Telescopic Boom Lift

Genie SX-150 Telescopic Boom Lift

Genie SX-150 Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

Deutz

Engine Model

TD2011

Engine Power

74HP

Fuel Tank Capacity

189L

Battery Voltage/cap.

-

Transmission Type

-

Drive Type

4WD

Max Travel Speed

3.7km/h

Travel Speed (raised)

0.65km/h

Gradeability

35%

Service Brake Type

-

Parking Brake Type

-

Steering Type

Dual axis joystick/Thumb rocker

Turning Radius (inside)

6.28m

Turning Radius (outside)

8.56m

Max Lifting Capacity (unrestricted)

340kg

Max Lifting Capacity (restricted)

-

Operating Weight

0.023Ton

Hydraulic Oil Capacity

416L

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

16.18m

Overall Width

2.49m

Overall Height

-

Ground Clearance

0.38m

Wheelbase

5.03m

Turntable Tail Swing

1.14m

Max Platform Height

46.33m

Max Working Height

48.33m

Max Horizontal Outreach

24.38m

Platform Rotation

160°

Turntable Rotation

360°

Jib Articulation

135°

Platform Size (l×w)

2.44×0.91 m

Max Platform Occupants

2Persons

Tilt Alarm / Sensor

-

Platform Entry Type

-

Tyres

445D50/710

Power Steering

Dual axis joystick/Thumb rocker

Drive Enable / Alarms

Drive enable system, Descent, tilt, and motion alarm

Currently Viewing
SANY SPT22 Telescopic Boom Lift

SANY SPT22 Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

DEUTZ / KUBOTA

Engine Model

D2.9 / V2607-DI-T

Engine Power

48.8 / 49.0 HP

Fuel Tank Capacity

160L

Battery Voltage/cap.

-

Transmission Type

-

Drive Type

4WD

Max Travel Speed

5.5km/h

Travel Speed (raised)

1.1km/h

Gradeability

45 %

Service Brake Type

-

Parking Brake Type

-

Steering Type

2WS

Turning Radius (inside)

2.40m

Turning Radius (outside)

5.50m

Max Lifting Capacity (unrestricted)

300kg

Max Lifting Capacity (restricted)

480kg

Operating Weight

12.7Ton

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

11.0 m

Overall Width

2.45m

Overall Height

2.70m

Ground Clearance

0.31m

Wheelbase

2.50m

Turntable Tail Swing

1.50m

Max Platform Height

22.4m

Max Working Height

24.4m

Max Horizontal Outreach

16.5m

Platform Rotation

180°

Turntable Rotation

360 (Continuous) °

Jib Articulation

+70 / -65 °

Platform Size (l×w)

2.44 × 0.91 m

Max Platform Occupants

3Persons

Tilt Alarm / Sensor

X-5° / Y-5°

Platform Entry Type

-

Tyres

-

Power Steering

-

Drive Enable / Alarms

-

SANY SPT26 Telescopic Boom Lift

SANY SPT26 Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

DEUTZ / KUBOTA

Engine Model

TD2.9 / V3307-TE5B

Engine Power

74.29HP

Fuel Tank Capacity

2600L

Battery Voltage/cap.

160

Transmission Type

-

Drive Type

4WD

Max Travel Speed

6.0km/h

Travel Speed (raised)

0.8km/h

Gradeability

45%

Service Brake Type

-

Parking Brake Type

-

Steering Type

2WS

Turning Radius (inside)

3.66m

Turning Radius (outside)

6.86m

Max Lifting Capacity (unrestricted)

300kg

Max Lifting Capacity (restricted)

400kg

Operating Weight

15.7Ton

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

12.3m

Overall Width

2.49m

Overall Height

3.05m

Ground Clearance

0.41m

Wheelbase

3.05m

Turntable Tail Swing

1.5m

Max Platform Height

26.7m

Max Working Height

28.7m

Max Horizontal Outreach

20.3m

Platform Rotation

180°

Turntable Rotation

360 Continuous°

Jib Articulation

+70° / -65°°

Platform Size (l×w)

2.44×0.91m

Max Platform Occupants

3Persons

Tilt Alarm / Sensor

X-5° / Y-5°

Platform Entry Type

-

Tyres

-

Power Steering

-

Drive Enable / Alarms

-

Genie S-45 Trax Telescopic Boom Lift

Genie S-45 Trax Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

Deutz

Engine Model

D2011

Engine Power

48 HP

Fuel Tank Capacity

132L

Battery Voltage/cap.

-

Transmission Type

-

Drive Type

4WD

Max Travel Speed

6.40km/h

Travel Speed (raised)

1.1km/h

Gradeability

45 %

Service Brake Type

-

Parking Brake Type

-

Steering Type

Dual axis joystick steering

Turning Radius (inside)

2.08m

Turning Radius (outside)

5.23m

Max Lifting Capacity (unrestricted)

300kg

Max Lifting Capacity (restricted)

454kg

Operating Weight

8.623Ton

Hydraulic Oil Capacity

144L

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

9.47m

Overall Width

2.49m

Overall Height

2.51m

Ground Clearance

0.32m

Wheelbase

2.46m

Turntable Tail Swing

0.97m

Max Platform Height

13.56m

Max Working Height

15.56m

Max Horizontal Outreach

11.02m

Platform Rotation

160°

Turntable Rotation

360°

Jib Articulation

133°

Platform Size (l×w)

2.44×1.83 m

Max Platform Occupants

2Persons

Tilt Alarm / Sensor

7° / 5°

Platform Entry Type

Side swing gate

Tyres

315/55D20

Power Steering

Yes

Drive Enable / Alarms

Yes

JLG 1850SJ Telescopic Boom Lift

JLG 1850SJ Telescopic Boom Lift

Get Latest Price
Rating
4.4

Engine Brand

Deutz

Engine Model

TCD 3.6L Tier IV F

Engine Power

99.8HP

Fuel Tank Capacity

170L

Battery Voltage/cap.

-

Transmission Type

-

Drive Type

-

Max Travel Speed

4.5km/h

Travel Speed (raised)

-

Gradeability

40%

Service Brake Type

-

Parking Brake Type

-

Steering Type

Axle-based

Turning Radius (inside)

2.3 / 7.12m

Turning Radius (outside)

6.6 / 9.52m

Max Lifting Capacity (unrestricted)

227kg

Max Lifting Capacity (restricted)

454kg

Operating Weight

27.17Ton

Hydraulic Oil Capacity

284.2L

Hydraulic Flow Rate

-

Hydraulic Pressure

8.25Bar

Overall Length

19.45m

Overall Width

2.49 / 5.0m

Overall Height

3.05m

Ground Clearance

0.34 (Axle) / 0.41 (Chassis)m

Wheelbase

5.22m

Turntable Tail Swing

2.32m

Max Platform Height

56.56m

Max Working Height

58.56m

Max Horizontal Outreach

24.38m

Platform Rotation

173°

Turntable Rotation

360°

Jib Articulation

120°

Platform Size (l×w)

2.44 × 0.91m

Max Platform Occupants

-

Tilt Alarm / Sensor

Yes (5° Tilt Cut Out)

Platform Entry Type

-

Tyres

445/50D710 Foam-filled

Power Steering

yes

Drive Enable / Alarms

-
