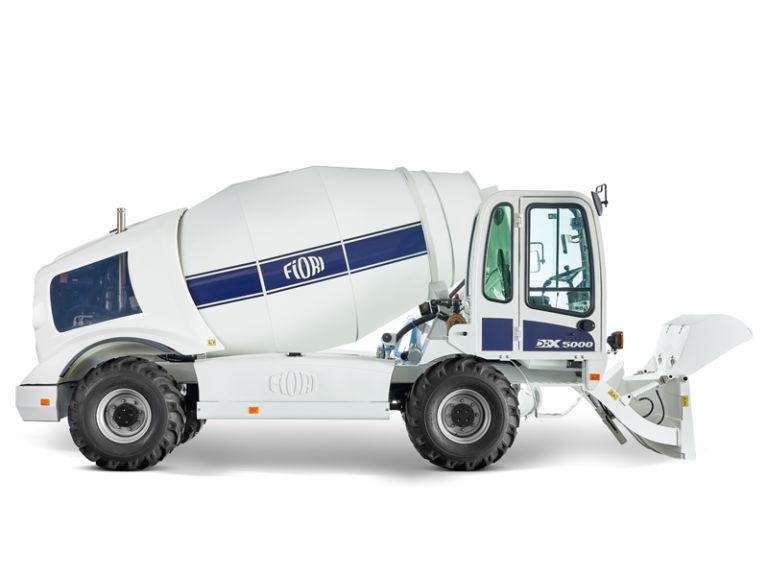

Fiori DBX 5000 Front Loading Mixer
The Fiori DBX 5000 Front Loading Mixer is a powerful solution for on-site concrete production, especially in areas where access to ready-mix supply is limited. Designed for maximum efficiency and mobility, this self-loading mixer ensures consistent, certified concrete output with minimal manpower. It is perfectly suited for remote construction projects, rural infrastructure development, irrigation works, and small to mid-sized dam projects. The DBX 5000 features a front-loading design, allowing easy handling of aggregates and reducing loading time. With its large drum capacity and advanced mixing technology, it delivers high-quality concrete even in the toughest job site conditions. Whether for urban building projects or remote precast operations, the DBX 5000 guarantees flexibility, reduced downtime, and exceptional performance in concrete production.
Fiori DBX 5000 Front Loading Mixer
The Fiori DBX 5000 Front Loading Mixer is a powerful solution for on-site concrete production, especially in areas where access to ready-mix supply is limited. Designed for maximum efficiency and mobility, this self-loading mixer ensures consistent, certified concrete output with minimal manpower. It is perfectly suited for remote construction projects, rural infrastructure development, irrigation works, and small to mid-sized dam projects. The DBX 5000 features a front-loading design, allowing easy handling of aggregates and reducing loading time. With its large drum capacity and advanced mixing technology, it delivers high-quality concrete even in the toughest job site conditions. Whether for urban building projects or remote precast operations, the DBX 5000 guarantees flexibility, reduced downtime, and exceptional performance in concrete production.
Product Description
The Fiori DBX 5000 Front Loading Mixer is a powerful solution for on-site concrete production, espec...
Fiori DBX 5000 Front Loading Mixer Comparison with Similar Self Loading Concrete Mixer

Fiori DBX 5000 Front Loading Mixer
Parking Brake Type
Negative type, oil-bath disc, electro-hydraulic release
Steering Type
Load-sensing power steering with double displacement
Steering Modes
2WS, 4WS, Crab
Turning Radius
-
Drum Output Per Batch
5Cu.M
Engine Brand
Mahindra
Engine Model
CEV Stage IV Turbocharged Intercool, 4 Cylinder CRDI
Engine Power
110HP
Rated Speed
-
Cooling System
-
Emission Compliance
CEV Stage IV
Fuel Tank Capacity
90L
Max Travel Speed
28km/h
Working Speed
-
Gradeability
23° / %
Drive Type
4x4 Hydrostatic
Service Brake Type
Internal oil-bath disc on 4 wheels, dual circuit
Drum Volume
-
Drum Rotation
-
Concrete Output Efficiency
-
Loader Bucket Capacity
680L
Loading Shovel System
Grab bucket with hydraulic lifting arms
Hydraulic Oil Capacity
125L
Hydraulic Flow Rate
40L/min
Hydraulic Pressure
230Bar
Wheelbase
-
Operating Weight
7.28kg
Laden Weight
19.28kg
Tyre Size
18-19.5 18PR
Tyre Type
-
Water Tank Capacity
1200L
Water Pump Capacity
-
Water System Features
Self-priming pump, flow meter, dual polyethylene tanks
Battery Voltage
12V
Battery Capacity
150Ah
Additional Features
Fiori CBV 2.0 Controller, ROPS/FOPS Cabin, Rear Camera (optional)

Macons MST-4 Self Loading Transit Mixer
Parking Brake Type
Electrical
Steering Type
Power Assisted
Steering Modes
-
Turning Radius
-
Drum Output Per Batch
4Cu.M
Engine Brand
Kirloskar -
Engine Model
-
Engine Power
110HP
Rated Speed
2200RPM
Cooling System
-
Emission Compliance
-
Fuel Tank Capacity
130L
Max Travel Speed
24km/h
Working Speed
-
Gradeability
35° / %
Drive Type
4 Wheel Drive
Service Brake Type
Oil-bath disc brakes
Drum Volume
5.3L
Drum Rotation
22RPM
Concrete Output Efficiency
-
Loader Bucket Capacity
800L
Loading Shovel System
-
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Wheelbase
-
Operating Weight
7.98kg
Laden Weight
17.58kg
Tyre Size
405/70-20 16 PR
Tyre Type
-
Water Tank Capacity
900L
Water Pump Capacity
230L/min
Water System Features
-
Battery Voltage
12V
Battery Capacity
-
Additional Features
Rotating seat, Protection cabin

Macons MST-4.5 Self Loading Transit Mixer
Parking Brake Type
Electrical
Steering Type
Power Assisted
Steering Modes
4 Wheel Steering
Turning Radius
-
Drum Output Per Batch
4.5Cu.M
Engine Brand
-
Engine Model
-
Engine Power
110HP
Rated Speed
2200RPM
Cooling System
-
Emission Compliance
-
Fuel Tank Capacity
130L
Max Travel Speed
24km/h
Working Speed
-
Gradeability
35° / %
Drive Type
4 Wheel Drive
Service Brake Type
Electric 12V
Drum Volume
6200L
Drum Rotation
22RPM
Concrete Output Efficiency
-
Loader Bucket Capacity
800L
Loading Shovel System
-
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Wheelbase
-
Operating Weight
8.97kg
Laden Weight
19.77kg
Tyre Size
-
Tyre Type
16 PR
Water Tank Capacity
900L
Water Pump Capacity
230L/min
Water System Features
-
Battery Voltage
12V
Battery Capacity
-
Additional Features
-

Macons M6TM Transit Mixer
Parking Brake Type
-
Steering Type
-
Steering Modes
-
Turning Radius
-
Drum Output Per Batch
6.0Cu.M
Engine Brand
Kirloskar
Engine Model
494
Engine Power
-
Rated Speed
-
Cooling System
Air Cooled
Emission Compliance
-
Fuel Tank Capacity
-
Max Travel Speed
-
Working Speed
-
Gradeability
-
Drive Type
Hydrostatic
Service Brake Type
-
Drum Volume
11900L
Drum Rotation
0–14RPM
Concrete Output Efficiency
50.4%
Loader Bucket Capacity
-
Loading Shovel System
-
Hydraulic Oil Capacity
400L
Hydraulic Flow Rate
3.5L/min
Hydraulic Pressure
-
Wheelbase
-
Operating Weight
3.95kg
Laden Weight
-
Tyre Size
-
Tyre Type
-
Water Tank Capacity
600L
Water Pump Capacity
400L/min
Water System Features
-
Battery Voltage
-
Battery Capacity
-
Additional Features
Mounted on Ashok Leyland Taurus / Tata 2516 chassis

Schwing SLM 2100 Self Loading Concrete Mixer
Parking Brake Type
-
Steering Type
-
Steering Modes
-
Turning Radius
-
Drum Output Per Batch
2.3Cu.M
Engine Brand
-
Engine Model
-
Engine Power
49.5HP
Rated Speed
-
Cooling System
-
Emission Compliance
-
Fuel Tank Capacity
-
Max Travel Speed
22 km/h
Working Speed
-
Gradeability
280 (54%)° / %
Drive Type
-
Service Brake Type
Master cylinder actuated disc brakes
Drum Volume
-
Drum Rotation
0 to 20RPM
Concrete Output Efficiency
-
Loader Bucket Capacity
-
Loading Shovel System
-
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Wheelbase
-
Operating Weight
-
Laden Weight
6290kg
Tyre Size
-
Tyre Type
-
Water Tank Capacity
380L
Water Pump Capacity
-
Water System Features
-
Battery Voltage
-
Battery Capacity
-
Additional Features
-
