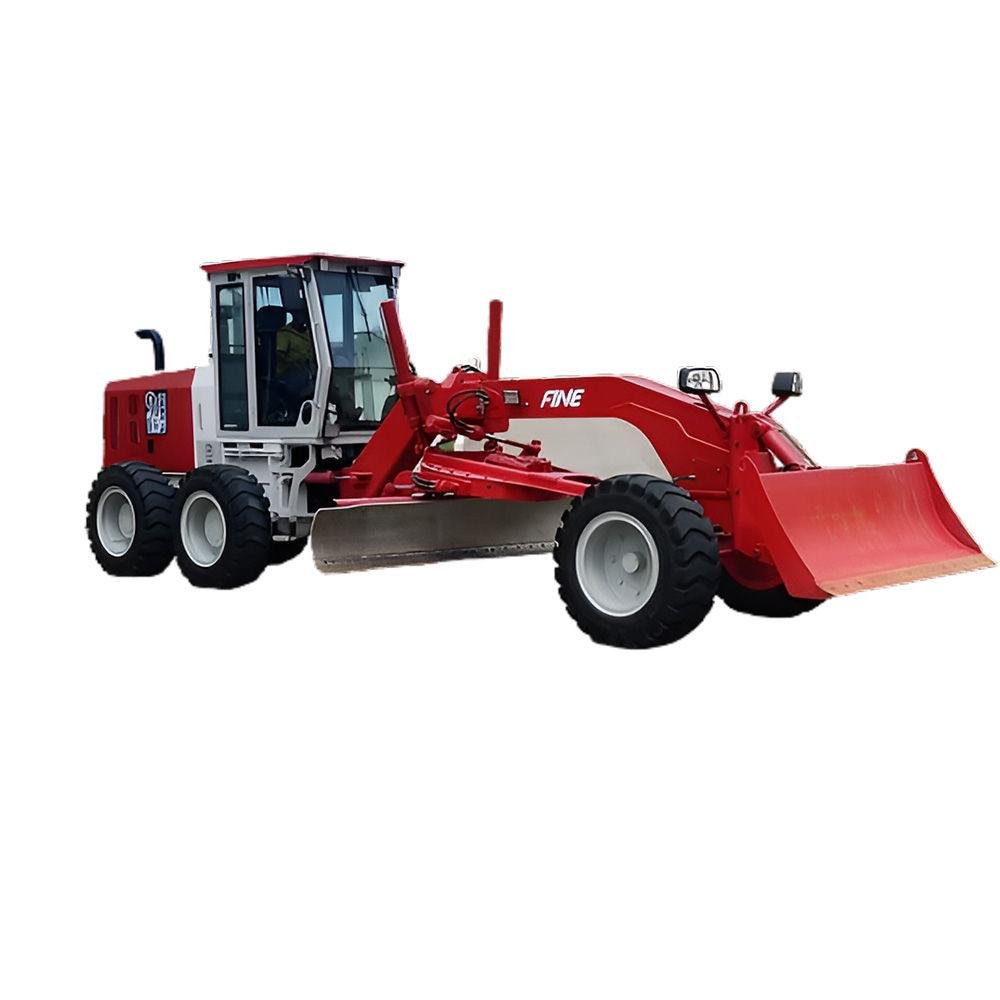

FINE FMG130 Motor Grader
Fine Equipments India Pvt. Ltd.
₹7,500,000 - ₹9,000,000
The FINE FMG130 Motor Grader is a powerful and reliable machine built for heavy-duty grading applications. Powered by a robust Ashok Leyland 130 HP BSIV engine and a Belian transmission, it delivers smooth performance even on the toughest terrains. With a maximum forward speed of 40 km/hr and a 360° rotating moldboard, this grader ensures precision in every pass. The moldboard length of 3360 mm and cutting depth of 350 mm make it ideal for road construction, land leveling, and haul road maintenance. It features power steering, hydraulic disc brakes, and an ergonomically designed AC cabin for operator comfort. With a 9100 kg operating weight and high ground stability, the FMG130 is engineered to maximize productivity and control on every job site.
FINE FMG130 Motor Grader
Fine Equipments India Pvt. Ltd.
₹7,500,000 - ₹9,000,000
The FINE FMG130 Motor Grader is a powerful and reliable machine built for heavy-duty grading applications. Powered by a robust Ashok Leyland 130 HP BSIV engine and a Belian transmission, it delivers smooth performance even on the toughest terrains. With a maximum forward speed of 40 km/hr and a 360° rotating moldboard, this grader ensures precision in every pass. The moldboard length of 3360 mm and cutting depth of 350 mm make it ideal for road construction, land leveling, and haul road maintenance. It features power steering, hydraulic disc brakes, and an ergonomically designed AC cabin for operator comfort. With a 9100 kg operating weight and high ground stability, the FMG130 is engineered to maximize productivity and control on every job site.
Product Description
The FINE FMG130 Motor Grader is a powerful and reliable machine built for heavy-duty grading applica...
View the full brochure
FINE FMG130 Motor Grader Comparison with Similar Motor Grader

FINE FMG130 Motor Grader
Engine Brand
Ashok Leyland
Engine Model
H4C413022 - BSIV
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
200L
Transmission Type
Belian
Number Of Gears (fwd/rev)
2 + Power Mode / 2
Max Travel Speed
40 (F), 30 (R) km/h
Service Brake Type
Disc (Foot Operated)
Parking Brake Type
Disc Brake (Transmission Shaft Mounted), Mechanically Operated
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
±5 °
Turning Radius
-
Operating Weight
9.1Ton
Front Axle Load
2500kg
Rear Axle Load
6600 kg
Hydraulic Flow Rate
60 L/min
Hydraulic Pressure
200 Bar
Overall Length
8.7m
Overall Width
2.066 m
Overall Height
2.94m
Ground Clearance
-
Blade Length
3.36 m
Blade Height
0.51m
Max Lift Above Ground
0.4 m
Max Depth Of Cut
0.35 m
Blade Tilt Angle
35 °
Blade Pitch Angle
Forward 35 / Backward 5 °
Blade Rotation Angle
360°

Liugong CLG 414 BSIII Motor Grader
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Operating Weight
14.3Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°

Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°

FINE 585HD Motor Grader
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Operating Weight
9.495Ton
Front Axle Load
2710kg
Rear Axle Load
6750kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°

CASE 865C VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
