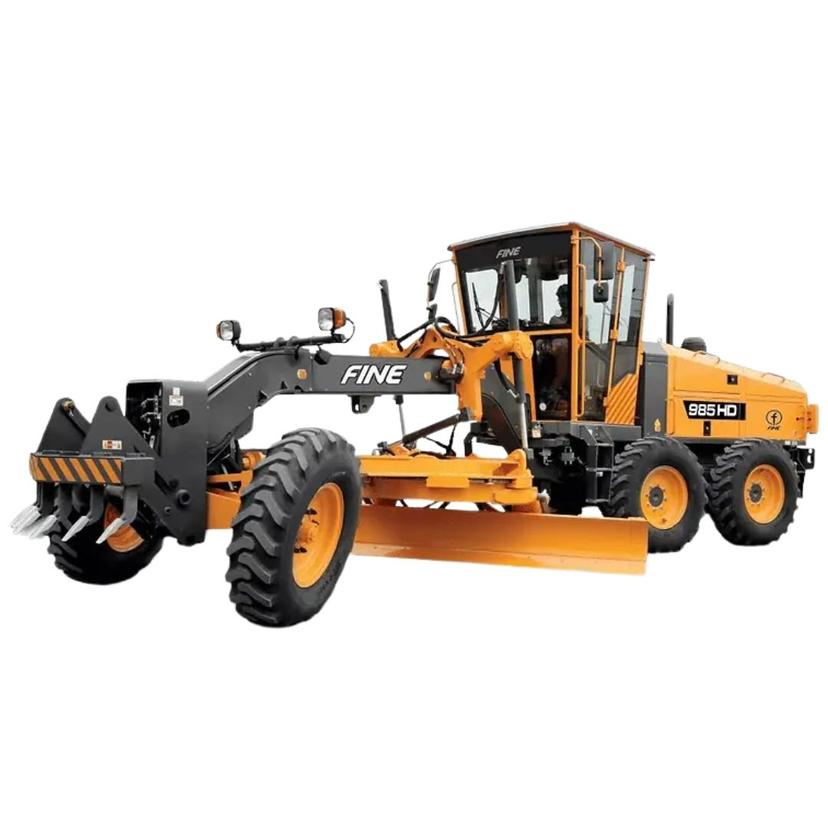

FINE 985HD Motor Grader

The FINE 985HD Motor Grader is a powerful and versatile machine designed for precision and performance in demanding grading applications. Engineered for road construction, infrastructure development, and mining operations, this grader ensures accurate leveling, fine grading, and slope cutting. Its robust structure and advanced hydraulics make it ideal for preparing haul roads, maintaining rural paths, and shaping embankments. With the ability to attach different blades, it also performs efficiently in snow removal tasks. Built to handle harsh terrains and heavy workloads, the FINE 985HD enhances productivity while reducing maintenance costs. Whether it’s clearing, cutting, or leveling, this motor grader delivers exceptional results, making it a trusted choice for contractors, government agencies, and mining companies seeking durability, precision, and performance in one machine.

Product Description

The FINE 985HD Motor Grader is a powerful and versatile machine designed for precision and performan...

View the full brochure

FINE 985HD Motor Grader Comparison with Similar Motor Grader

FINE 985HD Motor Grader

FINE 985HD Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSB6.7 CEV BSIV

Engine Power

173HP

Max Torque

881Nm

Front Axle Load

3890kg

Rear Axle Load

11910kg

Hydraulic Flow Rate

160L/min

Hydraulic Pressure

220Bar

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Blade Length

3.66m

Blade Height

0.494m

Max Lift Above Ground

0.46m

Max Depth Of Cut

0.35m

Blade Tilt Angle

40 Forward / 5 Backward°

Blade Pitch Angle

-

Blade Rotation Angle

360°

Rated Speed

2200rpm

Displacement

6.7L

Fuel Tank Capacity

300L

Transmission Type

Automatic Power-Shift (ZF) with ECU

Number Of Gears (fwd/rev)

6 Forward / 3 Reverse

Max Travel Speed

44.5km/h

Service Brake Type

Hydraulically actuated, oil-immersed disc brakes

Parking Brake Type

Spring Applied Hydraulic Release (SAHR)

Steering Type

Hydraulic Power Steering

Steering Angle

45°

Oscillation Angle

20°

Turning Radius

14.4m

Operating Weight

15.8Ton

Currently Viewing
Liugong CLG 414 BSIII Motor Grader

Liugong CLG 414 BSIII Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

CUMMINS INDIA

Engine Model

6BTAA5.9

Engine Power

150HP

Max Torque

655Nm

Front Axle Load

-

Rear Axle Load

-

Hydraulic Flow Rate

-

Hydraulic Pressure

180Bar

Overall Length

9.21m

Overall Width

3.4m

Overall Height

3.66m

Ground Clearance

575mm

Blade Length

3.66m

Blade Height

0.61m

Max Lift Above Ground

0.485m

Max Depth Of Cut

0.575m

Blade Tilt Angle

70°

Blade Pitch Angle

-

Blade Rotation Angle

90°

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

250L

Transmission Type

Power Shift

Number Of Gears (fwd/rev)

6F/3R

Max Travel Speed

41km/h

Service Brake Type

Shoe

Parking Brake Type

Shoe

Steering Type

Full hydraulic steering

Steering Angle

90°

Oscillation Angle

30°

Turning Radius

7.2m

Operating Weight

14.3Ton

Sany STG210C-10 Motor Grader

Sany STG210C-10 Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSB6.7

Engine Power

225HP

Max Torque

1000Nm

Front Axle Load

-

Rear Axle Load

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Overall Length

11.1m

Overall Width

2.74m

Overall Height

3.31m

Ground Clearance

410mm

Blade Length

3.66m

Blade Height

0.62m

Max Lift Above Ground

0.48m

Max Depth Of Cut

0.63m

Blade Tilt Angle

9°

Blade Pitch Angle

25~75°

Blade Rotation Angle

360°

Rated Speed

2200rpm

Displacement

6.7L

Fuel Tank Capacity

350L

Transmission Type

-

Number Of Gears (fwd/rev)

6 forward and 3 reverse

Max Travel Speed

42km/h

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Steering Angle

45°

Oscillation Angle

16°

Turning Radius

7.3m

Operating Weight

15.35Ton

FINE 585HD Motor Grader

FINE 585HD Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

Ashok Leyland

Engine Model

-

Engine Power

130HP

Max Torque

480Nm

Front Axle Load

2710kg

Rear Axle Load

6750kg

Hydraulic Flow Rate

118L/min

Hydraulic Pressure

220Bar

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Blade Length

3.05m

Blade Height

0.494m

Max Lift Above Ground

0.46m

Max Depth Of Cut

-

Blade Tilt Angle

40° Forward / 5° Backward°

Blade Pitch Angle

-

Blade Rotation Angle

360°

Rated Speed

2200rpm

Displacement

3.84L

Fuel Tank Capacity

140L

Transmission Type

Power - Shift Transmission (AVTECH)

Number Of Gears (fwd/rev)

2 Forward / 2 Reverse

Max Travel Speed

20km/h

Service Brake Type

Foot pedal operated hydraulic brake through master cylinder

Parking Brake Type

Spring Applied Hydraulic Release (SAHR)

Steering Type

Hydraulic Power Steering

Steering Angle

45°

Oscillation Angle

20°

Turning Radius

10.26m

Operating Weight

9.495Ton

CASE 865C VHP Motor Grader

CASE 865C VHP Motor Grader

Get Latest Price
Rating
4.4

Engine Brand

FPT

Engine Model

F4HE613B*W002

Engine Power

220HP

Max Torque

930Nm

Front Axle Load

-

Rear Axle Load

-

Hydraulic Flow Rate

186L/min

Hydraulic Pressure

175Bar

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

0.58 (front) mm

Blade Length

3.962m

Blade Height

0.622 m

Max Lift Above Ground

0.4445m

Max Depth Of Cut

0.7112m

Blade Tilt Angle

-

Blade Pitch Angle

87°

Blade Rotation Angle

360 °

Rated Speed

2200rpm

Displacement

6.7L

Fuel Tank Capacity

380L

Transmission Type

-

Number Of Gears (fwd/rev)

-

Max Travel Speed

-

Service Brake Type

Disc, bathed in oil

Parking Brake Type

-

Steering Type

Hydrostatic power steering

Steering Angle

25°

Oscillation Angle

20°

Turning Radius

-

Operating Weight

-
