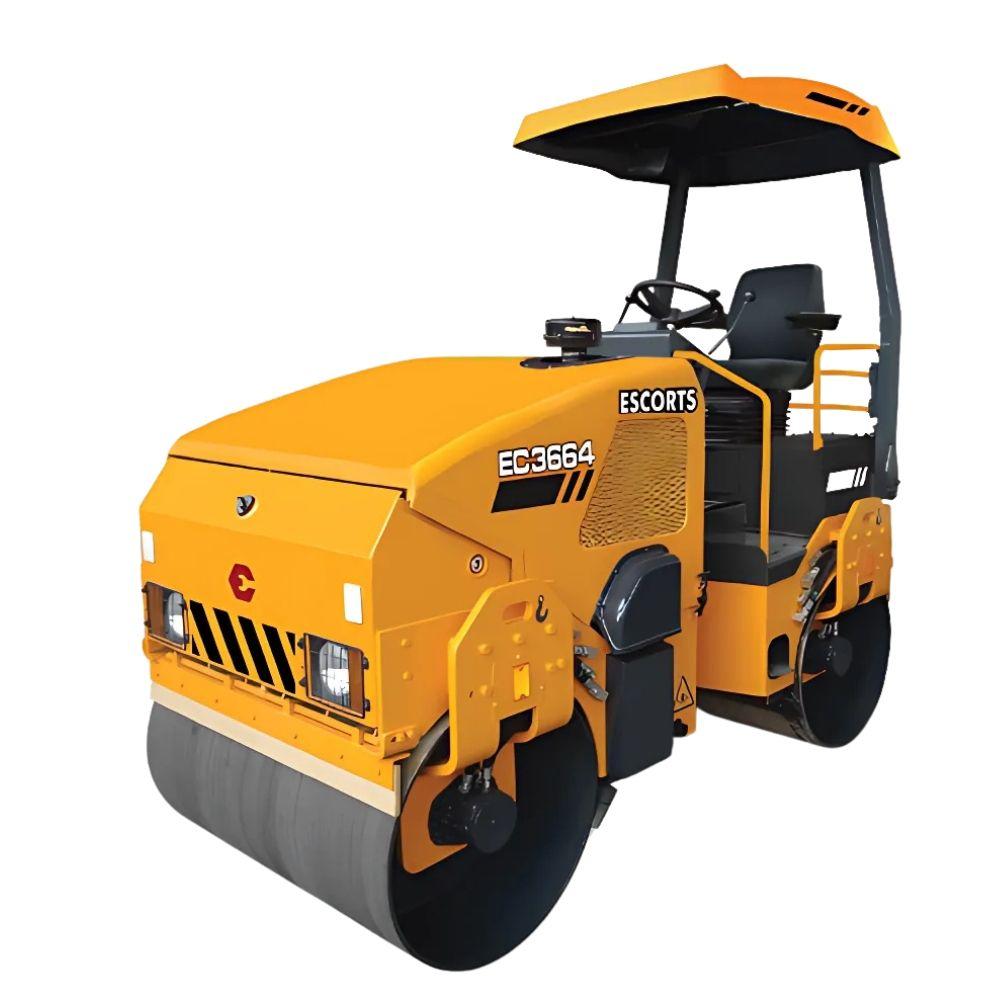

ESCORTS EC 3664 Tandem Roller
The ESCORTS EC 3664 Tandem Roller is a high-performance compaction machine designed for a wide range of construction and roadwork applications. Powered by a 47 HP engine, it delivers efficient and consistent results for compacting asphalt, soil, and concrete surfaces. With a drum width of 1200 mm and a drum diameter of 740 mm, this roller is ideal for compacting large areas with precision. Its articulated steering, offering a turning radius of 4142 mm (outer) and 2942 mm (inner), ensures maneuverability even in tight spaces. The roller’s 35% gradeability with vibration and 40% without vibration makes it suitable for steep terrains. With a fuel tank capacity of 50 L and a ground clearance of 320 mm, the ESCORTS EC 3664 guarantees long operational hours and superior efficiency across various road construction, paving, and landscaping tasks.
ESCORTS EC 3664 Tandem Roller
The ESCORTS EC 3664 Tandem Roller is a high-performance compaction machine designed for a wide range of construction and roadwork applications. Powered by a 47 HP engine, it delivers efficient and consistent results for compacting asphalt, soil, and concrete surfaces. With a drum width of 1200 mm and a drum diameter of 740 mm, this roller is ideal for compacting large areas with precision. Its articulated steering, offering a turning radius of 4142 mm (outer) and 2942 mm (inner), ensures maneuverability even in tight spaces. The roller’s 35% gradeability with vibration and 40% without vibration makes it suitable for steep terrains. With a fuel tank capacity of 50 L and a ground clearance of 320 mm, the ESCORTS EC 3664 guarantees long operational hours and superior efficiency across various road construction, paving, and landscaping tasks.
Product Description
The ESCORTS EC 3664 Tandem Roller is a high-performance compaction machine designed for a wide range...
View the full brochure
ESCORTS EC 3664 Tandem Roller Comparison with Similar Tandem Roller

ESCORTS EC 3664 Tandem Roller
Transmission Type
-
Rear Axle Load
1600kg
Hydraulic Tank Capacity
40L
Frequency High
64Hz
Frequency Low
55Hz
Amplitude High
-
Amplitude Low
-
Overall Length
2.826m
Overall Width
1.36m
Overall Height
2.595m
Turning Radius
-
Operating Weight
3.3Ton
Front Axle Load
1700kg
Engine Brand
Escorts
Engine Model
E3.249NA
Engine Power
47HP
Max Torque
-
Rated Speed
2300rpm
Fuel Tank Capacity
50L
Displacement
-
Max Travel Speed
12km/h
Max Working Speed
4km/h
Gradeability Without Vibration
40%
Gradeability With Vibration
35%
Service Brake Type
Hydrostatic
Parking Brake Type
Spring Loaded
Steering Type
-
Steering Angle
± 30°
Oscillation Angle
± 10°
Ground Clearance
320mm
Drum Width
1.2m
Water Tank Capacity
200L

Volvo DD100 Tandem Roller
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
189L
Displacement
-
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L

Hamm HC 119iD Tandem Roller
Transmission Type
-
Rear Axle Load
4960kg
Hydraulic Tank Capacity
-
Frequency High
35Hz
Frequency Low
30Hz
Amplitude High
1.93mm
Amplitude Low
0.85mm
Overall Length
5.989m
Overall Width
2.280m
Overall Height
3.067m
Turning Radius
4.260m
Operating Weight
11.18Ton
Front Axle Load
6220kg
Engine Brand
ASHOK LEYLAND
Engine Model
H4C510122
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
270L
Displacement
-
Max Travel Speed
12.0km/h
Max Working Speed
7.0km/h
Gradeability Without Vibration
53%
Gradeability With Vibration
48%
Service Brake Type
-
Parking Brake Type
-
Steering Type
Articulated steering
Steering Angle
33°
Oscillation Angle
10°
Ground Clearance
470mm
Drum Width
2.140m
Water Tank Capacity
-

CASE 952 EX Tandem Roller
Transmission Type
-
Rear Axle Load
4640kg
Hydraulic Tank Capacity
70L
Frequency High
50Hz
Frequency Low
33Hz
Amplitude High
1.0mm
Amplitude Low
0.2mm
Overall Length
4.130m
Overall Width
1.905m
Overall Height
3.100m
Turning Radius
5.1m
Operating Weight
9050Ton
Front Axle Load
4410kg
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422
Engine Power
73.0HP
Max Torque
54.4Nm
Rated Speed
340rpm
Fuel Tank Capacity
140L
Displacement
3.83L
Max Travel Speed
11.5km/h
Max Working Speed
5.5km/h
Gradeability Without Vibration
-
Gradeability With Vibration
36%
Service Brake Type
Hydrostatic
Parking Brake Type
SAHR (Spring Applied Hydraulically Released)
Steering Type
-
Steering Angle
-
Oscillation Angle
± 10˚°
Ground Clearance
244mm
Drum Width
-
Water Tank Capacity
-

Wacker Neuson RD24 Tandem Roller
Transmission Type
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Frequency High
65.0Hz
Frequency Low
51.0Hz
Amplitude High
0.44mm
Amplitude Low
0.44mm
Overall Length
2.52m
Overall Width
1.10m
Overall Height
2.37m
Turning Radius
-
Operating Weight
2.47Ton
Front Axle Load
-
Engine Brand
Kubota
Engine Model
D1703
Engine Power
24.8HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
42.01L
Displacement
-
Max Travel Speed
10.1km/h
Max Working Speed
-
Gradeability Without Vibration
40.0%
Gradeability With Vibration
30.0%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
+/-8.0°
Ground Clearance
-
Drum Width
1.00m
Water Tank Capacity
180.18L
