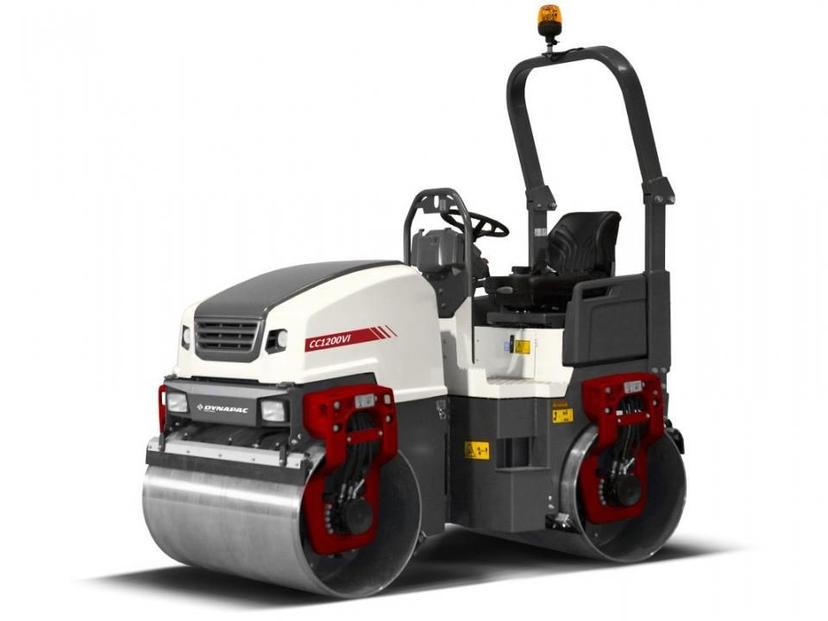

Dynapac CC125 CEV-V Double Drum Vibratory Roller

Dynapac Road Construction Equipment India Pvt Ltd

Maharashtra

The Dynapac CC125 CEV-V is a compact, high-performance double drum vibratory roller designed for efficient compaction in tight urban and residential environments. With an operating weight of 2,800 kg and dual 1200 mm wide drums, it delivers excellent balance and compaction force for asphalt and granular materials. Powered by a reliable 24.8 HP Mahindra diesel engine, it offers a top speed of 11 km/h and a vibration frequency of 58 Hz, ensuring productivity without compromising quality. Its hydrostatic braking system, ±10° oscillation, and 34% gradeability make it ideal for maneuvering on varying terrains. Equipped with a 160-liter water tank, double amplitudes, and essential safety features like ROPS and backup alarm, the CC125 is a dependable solution for road maintenance, landscaping, and path construction projects.

Product Description

The Dynapac CC125 CEV-V is a compact, high-performance double drum vibratory roller designed for eff...

View the full brochure

Dynapac CC125 CEV-V Double Drum Vibratory Roller Comparison with Similar Tandem Roller

Dynapac CC125 CEV-V Double Drum Vibratory Roller

Dynapac CC125 CEV-V Double Drum Vibratory Roller

Get Latest Price
Rating
4.4

Engine Brand

Mahindra

Engine Model

-

Engine Power

24.8HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

50L

Displacement

-

Transmission Type

Axial piston (drive), Gear pump (vibration/steering)

Max Travel Speed

11km/h

Max Working Speed

11 km/h

Gradeability Without Vibration

34%

Gradeability With Vibration

-

Service Brake Type

Hydrostatic (forward/reverse lever)

Parking Brake Type

Failsafe multidisc (both drums)

Steering Type

Gear pump with constant displacement

Steering Angle

29°

Oscillation Angle

10°

Turning Radius

4.1m

Operating Weight

2.8 Ton

Front Axle Load

1400 kg

Rear Axle Load

1400kg

Hydraulic Tank Capacity

-

Frequency High

58Hz

Frequency Low

-

Amplitude High

0.50mm

Amplitude Low

-

Overall Length

2.588 m

Overall Width

1.447 m

Overall Height

2.739m

Ground Clearance

180mm

Drum Width

1.2m

Water Tank Capacity

160L

Currently Viewing
Volvo DD90C Tandem Roller

Volvo DD90C Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

VECV

Engine Model

EE483TCI StageIV CEV

Engine Power

73.8 HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

180 L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

12km/h

Max Working Speed

7 km/h

Gradeability Without Vibration

30%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame, center pivot steering

Steering Angle

30°

Oscillation Angle

10°

Turning Radius

7.285 m

Operating Weight

8.7Ton

Front Axle Load

4.22kg

Rear Axle Load

4.48kg

Hydraulic Tank Capacity

80L

Frequency High

50 Hz

Frequency Low

36 Hz

Amplitude High

1.0 mm

Amplitude Low

0.36mm

Overall Length

4.970 m

Overall Width

1.835 m

Overall Height

3.050m

Ground Clearance

305mm

Drum Width

1.676m

Water Tank Capacity

700L

Volvo DD100 Tandem Roller

Volvo DD100 Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSB 4.5

Engine Power

129.9HP

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

189L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

11.4 km/h

Max Working Speed

-

Gradeability Without Vibration

-

Gradeability With Vibration

24.5%

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on front and rear drum drive motors

Steering Type

Center pivot (Articulated) steering

Steering Angle

40°

Oscillation Angle

10°

Turning Radius

3.558m

Operating Weight

10.025 Ton

Front Axle Load

5,200kg

Rear Axle Load

4,825kg

Hydraulic Tank Capacity

133 L

Frequency High

41.7Hz

Frequency Low

30.8 Hz

Amplitude High

1.01mm

Amplitude Low

0.41mm

Overall Length

5.086 m

Overall Width

2.845m

Overall Height

2.845m

Ground Clearance

0.430 mm

Drum Width

1.676m

Water Tank Capacity

984L

Hamm HC 119iD Tandem Roller

Hamm HC 119iD Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

ASHOK LEYLAND

Engine Model

H4C510122

Engine Power

99.2HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

270L

Displacement

-

Transmission Type

-

Max Travel Speed

12.0km/h

Max Working Speed

7.0km/h

Gradeability Without Vibration

53%

Gradeability With Vibration

48%

Service Brake Type

-

Parking Brake Type

-

Steering Type

Articulated steering

Steering Angle

33°

Oscillation Angle

10°

Turning Radius

4.260m

Operating Weight

11.18Ton

Front Axle Load

6220kg

Rear Axle Load

4960kg

Hydraulic Tank Capacity

-

Frequency High

35Hz

Frequency Low

30Hz

Amplitude High

1.93mm

Amplitude Low

0.85mm

Overall Length

5.989m

Overall Width

2.280m

Overall Height

3.067m

Ground Clearance

470mm

Drum Width

2.140m

Water Tank Capacity

-

CASE 952 EX Tandem Roller

CASE 952 EX Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

Ashok Leyland

Engine Model

H4C4E7422

Engine Power

73.0HP

Max Torque

54.4Nm

Rated Speed

340rpm

Fuel Tank Capacity

140L

Displacement

3.83L

Transmission Type

-

Max Travel Speed

11.5km/h

Max Working Speed

5.5km/h

Gradeability Without Vibration

-

Gradeability With Vibration

36%

Service Brake Type

Hydrostatic

Parking Brake Type

SAHR (Spring Applied Hydraulically Released)

Steering Type

-

Steering Angle

-

Oscillation Angle

± 10˚°

Turning Radius

5.1m

Operating Weight

9050Ton

Front Axle Load

4410kg

Rear Axle Load

4640kg

Hydraulic Tank Capacity

70L

Frequency High

50Hz

Frequency Low

33Hz

Amplitude High

1.0mm

Amplitude Low

0.2mm

Overall Length

4.130m

Overall Width

1.905m

Overall Height

3.100m

Ground Clearance

244mm

Drum Width

-

Water Tank Capacity

-

Compare Tandem Roller

Dynapac CC125 CEV-V Double Drum Vibratory Roller

Dynapac CC125 CEV-V Double Drum Vibratory Roller

Volvo DD90C Tandem Roller

Volvo DD90C Tandem Roller

Add any equipment
to compare

Product

Get instant quotation on whatsapp

Connect with "Dynapac Road Construction Equipment India Pvt Ltd"

Connect with Seller Instantly

About Company

Company Name

Dynapac Road Construction Equipment India Pvt Ltd

GST Number

27AAGCD1573N2Z9

Since

April 2017

Address

Plot No 1, Gat No. 163 – 168 Alandi Markal Road, Fulgaon, Taluka-Haveli, District-Pune, Maharashtra 412216

Dynapac Road Construction Equipment India Pvt Ltd is dedicated to supporting customers in achieving higher profitability, safety, and environmental goals in the road construction sector. As a reliable partner, Dynapac provides tailored solutions through application consultancy and personalized training, ensuring guidance and support across diverse regions and around the clock. Backed by the stability and expertise of the FAYAT Group, Dynapac leverages its long-standing experience to help customers adapt to emerging trends and navigate industry challenges. With Dynapac, clients gain a dependable partner committed to being their navigator, offering innovative solutions for every step of their road construction projects.
