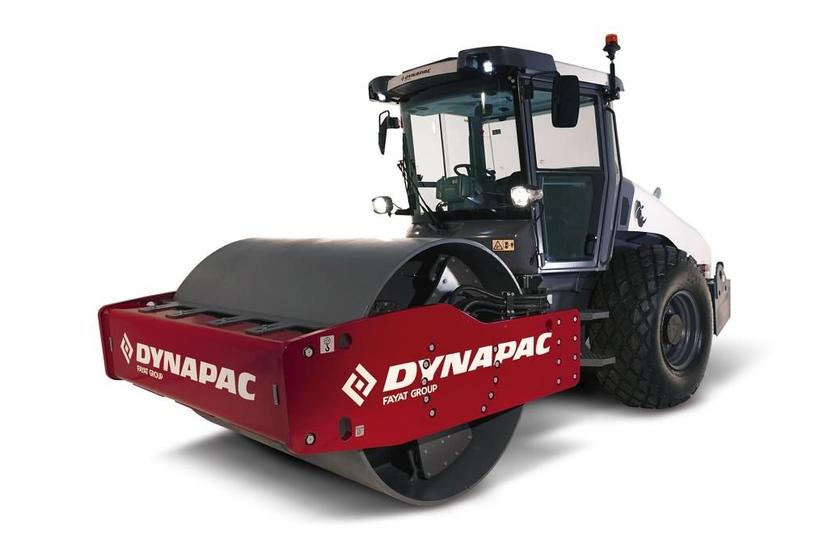

Dynapac CA405PS CEV-V Single Drum Vibratory Roller
Dynapac Road Construction Equipment India Pvt Ltd
Madhya Pradesh
The Dynapac CA405PS CEV-V Single Drum Vibratory Roller is built for superior performance in demanding soil compaction projects. With an operating weight of up to 14,760 kg and powered by a reliable Cummins engine delivering 121 HP, it ensures optimal productivity across varied terrains. This model features dual amplitude settings (1.2/0.6 mm) and a high centrifugal force of up to 300 kN, making it highly effective for compacting both granular and cohesive soils. Its hydrostatic drive, vibration, and steering system offer smooth, responsive control, while the ±38° steering angle and ±9° vertical oscillation provide excellent maneuverability. With a wide 2,130 mm drum, robust safety features, and a CEV-V compliant design, the CA405PS is ideal for roadworks, airports, dams, and large-scale infrastructure projects.
Dynapac CA405PS CEV-V Single Drum Vibratory Roller
Dynapac Road Construction Equipment India Pvt Ltd
Madhya Pradesh
The Dynapac CA405PS CEV-V Single Drum Vibratory Roller is built for superior performance in demanding soil compaction projects. With an operating weight of up to 14,760 kg and powered by a reliable Cummins engine delivering 121 HP, it ensures optimal productivity across varied terrains. This model features dual amplitude settings (1.2/0.6 mm) and a high centrifugal force of up to 300 kN, making it highly effective for compacting both granular and cohesive soils. Its hydrostatic drive, vibration, and steering system offer smooth, responsive control, while the ±38° steering angle and ±9° vertical oscillation provide excellent maneuverability. With a wide 2,130 mm drum, robust safety features, and a CEV-V compliant design, the CA405PS is ideal for roadworks, airports, dams, and large-scale infrastructure projects.
Product Description
The Dynapac CA405PS CEV-V Single Drum Vibratory Roller is built for superior performance in demandin...
View the full brochure
Dynapac CA405PS CEV-V Single Drum Vibratory Roller Comparison with Similar Single Drum Soil Compactor
Dynapac CA405PS CEV-V Single Drum Vibratory Roller
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
11km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Operating Weight
14.64Ton
Front Axle Load
9380kg
Rear Axle Load
5380kg
Static Linear Load
-
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.6mm
Amplitude (high)
1.2mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
44%
Overall Length
5.6 m
Overall Width
2.3m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.13m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Sany SSR220C-8H Single Drum Soil Compactor
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
LiuGong 611 Soil Compactor
Engine Brand
Kirloskar
Engine Model
4R1190TA1
Engine Power
110 HP
Max Torque
450 Nm
Rated Speed
2200 rpm
Displacement
4.76 L
Front Departure Angle
-
Hydraulic Oil Capacity
90 L
Engine Oil Capacity
8.5 L
Coolant Capacity
18 L
Tyre Size
23.1-26-12PR
Battery Voltage
12 V
Battery Capacity
150 Ah
Fuel Tank Capacity
280 L
Transmission Type
Hydrostatic
Max Travel Speed
13 km/h
Service Brake Type
Hydrostatic Propulsion System
Parking Brake Type
Spring Applied, Hydraulic Release
Steering Type
Articulation
Steering Angle
70 (±35°) °
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
<6.75 m
Operating Weight
11.0 Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
32Hz
Frequency (high)
34 Hz
Amplitude (low)
0.8 mm
Amplitude (high)
1.8 mm
Centrifugal Force
125 kN
Max Applied Force
385.32 kN
Without Drum Drive
-
With Drum Drive
35 %
Overall Length
5.9 m
Overall Width
2.3 m
Overall Height
3.232 m
Ground Clearance
460 mm
Drum Width
2.13 m
Drum Diameter
1.5 m
Drum Shell Thickness
-
Rear Departure Angle
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Volvo SD110CD Soil Compactor
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
11.2Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-
Dynapac CA405D CEV-V Single drum vibratory rollers
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Operating Weight
13.960Ton
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
