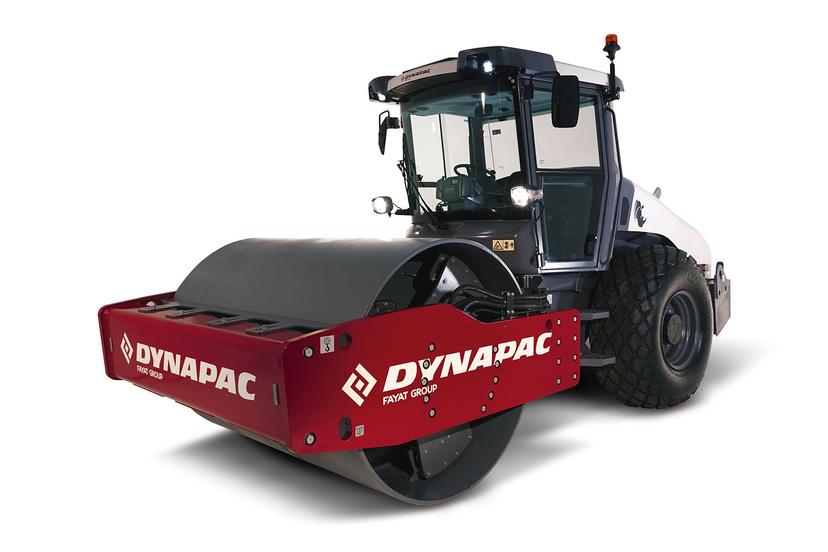

Dynapac CA305 CEV-V Single drum vibratory rollers
Dynapac Road Construction Equipment India Pvt Ltd
Maharashtra
The **Dynapac CA305 CEV-V Single Drum Vibratory Roller** is a robust and reliable compaction machine designed for demanding applications in road construction, earthwork, and infrastructure development. Powered by a 110 HP KOEL engine, it delivers strong performance with a maximum operating weight of 10,800 kg. Its compaction capabilities are enhanced by a high centrifugal force of 250 kN, dual amplitude settings (1.8/0.9 mm), and a static linear load of 29.0 kg/cm—ensuring deep and uniform soil compaction. The roller’s hydrostatic drive, ±9° oscillation, and 34% gradeability allow it to perform efficiently even on uneven or sloped terrains. With a wide 2130 mm drum, 280-liter fuel tank, and reliable braking systems, the CA305 is built for productivity, operator comfort, and extended work hours in all types of terrain.
Dynapac CA305 CEV-V Single drum vibratory rollers
Dynapac Road Construction Equipment India Pvt Ltd
Maharashtra
The **Dynapac CA305 CEV-V Single Drum Vibratory Roller** is a robust and reliable compaction machine designed for demanding applications in road construction, earthwork, and infrastructure development. Powered by a 110 HP KOEL engine, it delivers strong performance with a maximum operating weight of 10,800 kg. Its compaction capabilities are enhanced by a high centrifugal force of 250 kN, dual amplitude settings (1.8/0.9 mm), and a static linear load of 29.0 kg/cm—ensuring deep and uniform soil compaction. The roller’s hydrostatic drive, ±9° oscillation, and 34% gradeability allow it to perform efficiently even on uneven or sloped terrains. With a wide 2130 mm drum, 280-liter fuel tank, and reliable braking systems, the CA305 is built for productivity, operator comfort, and extended work hours in all types of terrain.
Product Description
The **Dynapac CA305 CEV-V Single Drum Vibratory Roller** is a robust and reliable compaction machine...
View the full brochure
Dynapac CA305 CEV-V Single drum vibratory rollers Comparison with Similar Single Drum Soil Compactor

Dynapac CA305 CEV-V Single drum vibratory rollers
Engine Brand
KOEL
Engine Model
-
Engine Power
110HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
11km/h
Service Brake Type
Hydrostatic (lever-based)
Parking Brake Type
Failsafe multidisc (rear axle & drum motor)
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515 m
Operating Weight
10.8Ton
Front Axle Load
6100kg
Rear Axle Load
4700 kg
Static Linear Load
29.0 kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.9mm
Amplitude (high)
1.8mm
Centrifugal Force
250kN
Max Applied Force
-
Without Drum Drive
34%
With Drum Drive
-
Overall Length
5.6m
Overall Width
2.26m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.13m
Drum Diameter
1.5m
Drum Shell Thickness
0.025m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL (8 ply)
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-

Sany SSR220C-8H Single Drum Soil Compactor
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-

LiuGong 611 Soil Compactor
Engine Brand
Kirloskar
Engine Model
4R1190TA1
Engine Power
110 HP
Max Torque
450 Nm
Rated Speed
2200 rpm
Displacement
4.76 L
Fuel Tank Capacity
280 L
Transmission Type
Hydrostatic
Max Travel Speed
13 km/h
Service Brake Type
Hydrostatic Propulsion System
Parking Brake Type
Spring Applied, Hydraulic Release
Steering Type
Articulation
Steering Angle
70 (±35°) °
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
<6.75 m
Operating Weight
11.0 Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
32Hz
Frequency (high)
34 Hz
Amplitude (low)
0.8 mm
Amplitude (high)
1.8 mm
Centrifugal Force
125 kN
Max Applied Force
385.32 kN
Without Drum Drive
-
With Drum Drive
35 %
Overall Length
5.9 m
Overall Width
2.3 m
Overall Height
3.232 m
Ground Clearance
460 mm
Drum Width
2.13 m
Drum Diameter
1.5 m
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
90 L
Engine Oil Capacity
8.5 L
Coolant Capacity
18 L
Tyre Size
23.1-26-12PR
Battery Voltage
12 V
Battery Capacity
150 Ah
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-

Volvo SD110CD Soil Compactor
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
11.2Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-

Dynapac CA405D CEV-V Single drum vibratory rollers
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Operating Weight
13.960Ton
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
