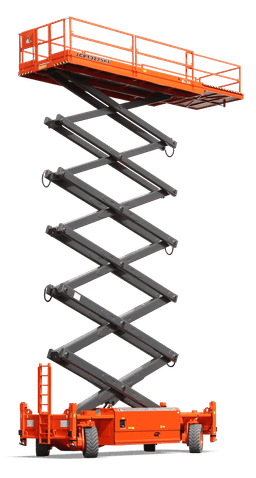

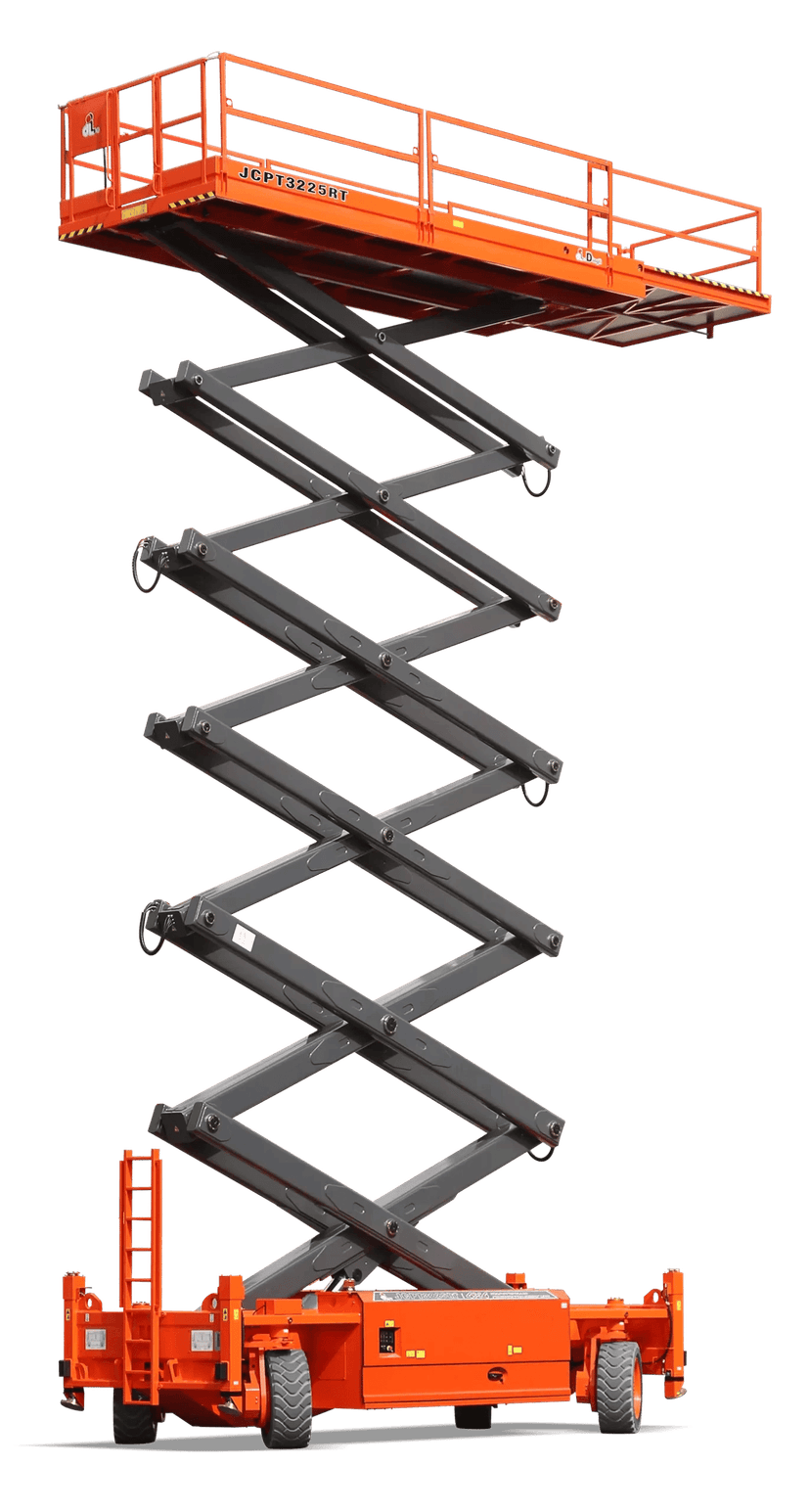

Dingli JCPT3225RT Scissor Lift
Maruti Construction Equipment
Gujarat
Dingli JCPT3225RT Scissor Lift is a powerful and versatile aerial work platform designed for demanding construction, maintenance, and heavy-duty applications. Capable of carrying a large load of up to 1000 kg, it offers the unique advantage of being drivable at full height, enhancing operational efficiency on site. Equipped with a robust 55 kW high-power engine and four-wheel drive with steering, the JCPT3225RT provides excellent maneuverability and flexibility over rough terrains. Its automatic self-levelling system ensures stability and safety during use, while the one-key extension large deck allows workers to adjust the platform size easily and position it precisely as needed. Built for reliability and performance, this scissor lift is an ideal solution for large-scale projects requiring heavy lifting, versatile access, and dependable power.
Dingli JCPT3225RT Scissor Lift
Maruti Construction Equipment
Gujarat
Dingli JCPT3225RT Scissor Lift is a powerful and versatile aerial work platform designed for demanding construction, maintenance, and heavy-duty applications. Capable of carrying a large load of up to 1000 kg, it offers the unique advantage of being drivable at full height, enhancing operational efficiency on site. Equipped with a robust 55 kW high-power engine and four-wheel drive with steering, the JCPT3225RT provides excellent maneuverability and flexibility over rough terrains. Its automatic self-levelling system ensures stability and safety during use, while the one-key extension large deck allows workers to adjust the platform size easily and position it precisely as needed. Built for reliability and performance, this scissor lift is an ideal solution for large-scale projects requiring heavy lifting, versatile access, and dependable power.
Product Description
Dingli JCPT3225RT Scissor Lift is a powerful and versatile aerial work platform designed for demandi...
View the full brochure
Dingli JCPT3225RT Scissor Lift Comparison with Similar Scissor Lift

Dingli JCPT3225RT Scissor Lift
Battery Type
-
Battery Voltage / Capacity
-
Charger Input Voltage
-
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Four-Wheel Drive
Max Travel Speed (stowed)
4.0km/h
Travel Speed (raised)
0.3km/h
Gradeability
40%
Lift Time (loaded)
150sec
Lower Time (loaded)
120sec
Service Brake Type
Automatic Braking System
Steering Type
Four-Wheel Steering
Turning Radius (inside)
3.80m
Turning Radius (outside)
6.30m
Max Platform Capacity
1000kg
Extension Deck Capacity
1000kg
Max Platform Occupants (in/out)
4/4persons
Operating Weight
23.95Ton
Hydraulic Oil Capacity
260L
Hydraulic Pressure
-
Overall Length (stowed)
6.73m
Overall Width
2.55m
Overall Height (rails Raised)
4.13m
Overall Height (rails Lowered)
3.19m
Wheelbase
4.86m
Ground Clearance (stowed)
0.20m
Max Platform Height
30.00m
Max Working Height
32.00m
Platform Size (l×w)
6.20×2.45m
Platform Extension Length
2.10m
Platform Railing Height
-
Max Side Slope (lateral)
2°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
15-625
Tyre Type
-
Platform Control System
Proportional Joystick Controls

Sany SPS0608DC Scissor Lift
Battery Type
Lead-acid
Battery Voltage / Capacity
24V / 230Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric
Max Travel Speed (stowed)
4.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Max Platform Capacity
230kg
Extension Deck Capacity
113kg
Max Platform Occupants (in/out)
2/0persons
Operating Weight
1.25Ton
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.54m
Overall Width
0.81m
Overall Height (rails Raised)
2.12m
Overall Height (rails Lowered)
1.80m
Wheelbase
1.13m
Ground Clearance (stowed)
0.06m
Max Platform Height
5.60m
Max Working Height
7.60m
Platform Size (l×w)
1.3×0.72m
Platform Extension Length
-
Platform Railing Height
1.21m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø250mm×80mm
Tyre Type
Solid non-marking
Platform Control System
-

Sany SPS0608HD Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
2 × 12V / 155Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Max Platform Capacity
250kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/0persons
Operating Weight
1.36Ton
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.55m
Wheelbase
1.38m
Ground Clearance (stowed)
0.085m
Max Platform Height
5.8m
Max Working Height
7.8m
Platform Size (l×w)
1.71 × 0.74m
Platform Extension Length
0.6m
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-

Sany SPS0608MHA Scissor Lift
Battery Type
-
Battery Voltage / Capacity
4×6V/220Ah
Charger Input Voltage
AC100–240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Max Platform Capacity
230kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/1persons
Operating Weight
1.55Ton
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.83m
Wheelbase
1.38m
Ground Clearance (stowed)
0.07m
Max Platform Height
6.0m
Max Working Height
8.0m
Platform Size (l×w)
1.7×0.74m
Platform Extension Length
-
Platform Railing Height
1.12m
Max Side Slope (lateral)
1.5°
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-

Sany SPS0808HA Scissor Lift
Battery Type
Lead Acid
Battery Voltage / Capacity
4×6V / 220Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
Front Wheel
Turning Radius (inside)
0.6m
Turning Radius (outside)
2.5m
Max Platform Capacity
250kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/0persons
Operating Weight
2.15Ton
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Overall Length (stowed)
2.49m
Overall Width
0.83m
Overall Height (rails Raised)
2.38m
Overall Height (rails Lowered)
1.89m
Wheelbase
1.87m
Ground Clearance (stowed)
0.1m
Max Platform Height
8.0m
Max Working Height
10.0m
Platform Size (l×w)
2.27 × 0.75m
Platform Extension Length
0.9m
Platform Railing Height
1.25m
Max Side Slope (lateral)
1.5
Max Slope (fore/aft)
-
Max Wind Speed (outdoor Use)
-
Tilt Sensor
-
Tires
-
Tyre Type
-
Platform Control System
-
