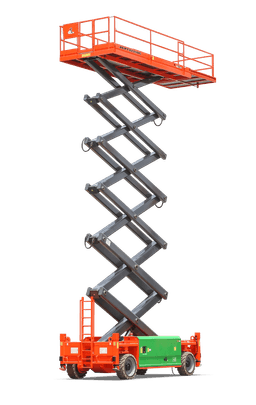

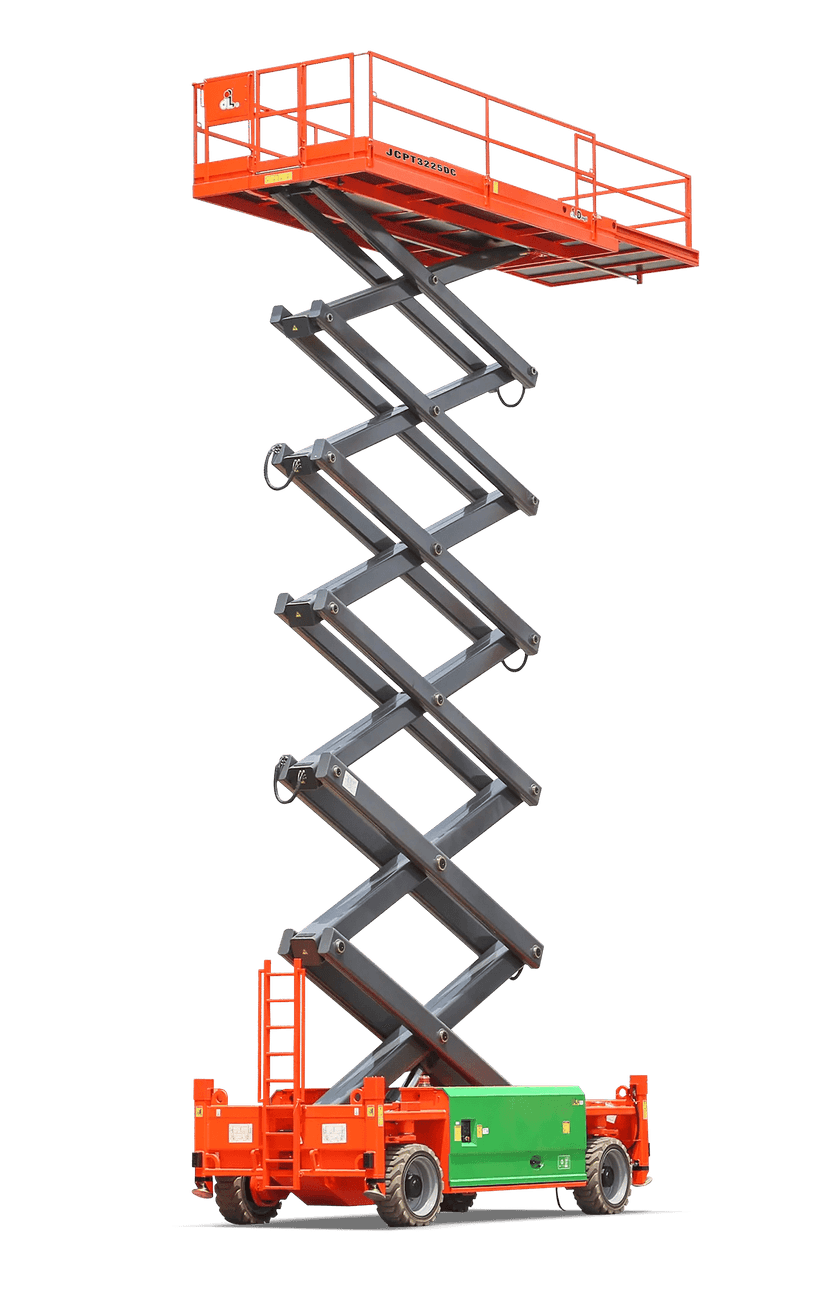

Dingli JCPT3225DC Scissor Lift

Maruti Construction Equipment

Gujarat

The Dingli JCPT3225DC Scissor Lift is a heavy-duty, zero-emission aerial platform built for tough outdoor environments and rough terrain applications. With a massive 1000kg load capacity and the ability to drive at full height, it is perfect for large-scale construction, maintenance, and industrial tasks. This lift features 4-wheel drive and steering for excellent maneuverability on uneven ground, while its automatic self-levelling system ensures superior stability and safety during operation. The one-key extension deck allows flexible working at any point along the platform, increasing productivity and reach. Powered by a powerful 80V/520Ah high-capacity battery pack, the JCPT3225DC offers clean, quiet, and efficient performance with zero emissions and no noise. It’s the ideal solution for projects that demand high lift capacity, off-road reliability, and environmentally responsible operation.

Product Description

The Dingli JCPT3225DC Scissor Lift is a heavy-duty, zero-emission aerial platform built for tough ou...

View the full brochure

Dingli JCPT3225DC Scissor Lift Comparison with Similar Scissor Lift

Dingli JCPT3225DC Scissor Lift

Dingli JCPT3225DC Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

Lithium Battery

Battery Voltage / Capacity

80V / 520Ah

Charger Input Voltage

80V

Charger Output / Type

80A

Charge Time (standard)

-

Drive Type

4-Wheel Drive

Max Travel Speed (stowed)

3.5km/h

Travel Speed (raised)

0.3km/h

Gradeability

30%

Lift Time (loaded)

160sec

Lower Time (loaded)

120sec

Service Brake Type

Automatic Braking System

Steering Type

Four-Wheel Steering

Turning Radius (inside)

3.80m

Turning Radius (outside)

6.30m

Max Platform Capacity

1000kg

Extension Deck Capacity

1000kg

Max Platform Occupants (in/out)

4/4persons

Operating Weight

23.95Ton

Hydraulic Oil Capacity

260L

Hydraulic Pressure

-

Overall Length (stowed)

6.73m

Overall Width

2.55m

Overall Height (rails Raised)

4.13m

Overall Height (rails Lowered)

3.19m

Wheelbase

4.86m

Ground Clearance (stowed)

0.20m

Max Platform Height

30.00m

Max Working Height

32.00m

Platform Size (l×w)

6.20×2.45m

Platform Extension Length

2.10m

Platform Railing Height

-

Max Side Slope (lateral)

Max Slope (fore/aft)

Max Wind Speed (outdoor Use)

-

Tilt Sensor

Yes

Tires

15-625

Tyre Type

-

Platform Control System

Proportional Joystick Controls

Currently Viewing
Sany SPS0608DC Scissor Lift

Sany SPS0608DC Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

Lead-acid

Battery Voltage / Capacity

24V / 230Ah

Charger Input Voltage

AC100~240V

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Electric

Max Travel Speed (stowed)

4.0km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

-

Turning Radius (inside)

0.4m

Turning Radius (outside)

1.7m

Max Platform Capacity

230kg

Extension Deck Capacity

113kg

Max Platform Occupants (in/out)

2/0persons

Operating Weight

1.25Ton

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

1.54m

Overall Width

0.81m

Overall Height (rails Raised)

2.12m

Overall Height (rails Lowered)

1.80m

Wheelbase

1.13m

Ground Clearance (stowed)

0.06m

Max Platform Height

5.60m

Max Working Height

7.60m

Platform Size (l×w)

1.3×0.72m

Platform Extension Length

-

Platform Railing Height

1.21m

Max Side Slope (lateral)

1.5°

Max Slope (fore/aft)

Max Wind Speed (outdoor Use)

-

Tilt Sensor

Yes

Tires

Ø250mm×80mm

Tyre Type

Solid non-marking

Platform Control System

-

Sany SPS0608HD Scissor Lift

Sany SPS0608HD Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

Lead Acid

Battery Voltage / Capacity

2 × 12V / 155Ah

Charger Input Voltage

AC100~240V

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Hydraulic

Max Travel Speed (stowed)

3.0km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

-

Turning Radius (inside)

0.4m

Turning Radius (outside)

1.7m

Max Platform Capacity

250kg

Extension Deck Capacity

120kg

Max Platform Occupants (in/out)

2/0persons

Operating Weight

1.36Ton

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

1.88m

Overall Width

0.81m

Overall Height (rails Raised)

2.15m

Overall Height (rails Lowered)

1.55m

Wheelbase

1.38m

Ground Clearance (stowed)

0.085m

Max Platform Height

5.8m

Max Working Height

7.8m

Platform Size (l×w)

1.71 × 0.74m

Platform Extension Length

0.6m

Platform Railing Height

1.12m

Max Side Slope (lateral)

1.5°

Max Slope (fore/aft)

Max Wind Speed (outdoor Use)

-

Tilt Sensor

Yes

Tires

Ø323mm × 100mm

Tyre Type

Solid non-marking

Platform Control System

-

Sany SPS0608MHA Scissor Lift

Sany SPS0608MHA Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

-

Battery Voltage / Capacity

4×6V/220Ah

Charger Input Voltage

AC100–240V

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Hydraulic

Max Travel Speed (stowed)

3.5km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

-

Turning Radius (inside)

0.4m

Turning Radius (outside)

1.7m

Max Platform Capacity

230kg

Extension Deck Capacity

120kg

Max Platform Occupants (in/out)

2/1persons

Operating Weight

1.55Ton

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

1.88m

Overall Width

0.81m

Overall Height (rails Raised)

2.15m

Overall Height (rails Lowered)

1.83m

Wheelbase

1.38m

Ground Clearance (stowed)

0.07m

Max Platform Height

6.0m

Max Working Height

8.0m

Platform Size (l×w)

1.7×0.74m

Platform Extension Length

-

Platform Railing Height

1.12m

Max Side Slope (lateral)

1.5°

Max Slope (fore/aft)

Max Wind Speed (outdoor Use)

-

Tilt Sensor

Yes

Tires

Ø323mm × 100mm

Tyre Type

Solid non-marking

Platform Control System

-

Sany SPS0808HA Scissor Lift

Sany SPS0808HA Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

Lead Acid

Battery Voltage / Capacity

4×6V / 220Ah

Charger Input Voltage

AC100~240V

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Hydraulic

Max Travel Speed (stowed)

3.5km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

Front Wheel

Turning Radius (inside)

0.6m

Turning Radius (outside)

2.5m

Max Platform Capacity

250kg

Extension Deck Capacity

120kg

Max Platform Occupants (in/out)

2/0persons

Operating Weight

2.15Ton

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

2.49m

Overall Width

0.83m

Overall Height (rails Raised)

2.38m

Overall Height (rails Lowered)

1.89m

Wheelbase

1.87m

Ground Clearance (stowed)

0.1m

Max Platform Height

8.0m

Max Working Height

10.0m

Platform Size (l×w)

2.27 × 0.75m

Platform Extension Length

0.9m

Platform Railing Height

1.25m

Max Side Slope (lateral)

1.5

Max Slope (fore/aft)

-

Max Wind Speed (outdoor Use)

-

Tilt Sensor

-

Tires

-

Tyre Type

-

Platform Control System

-
