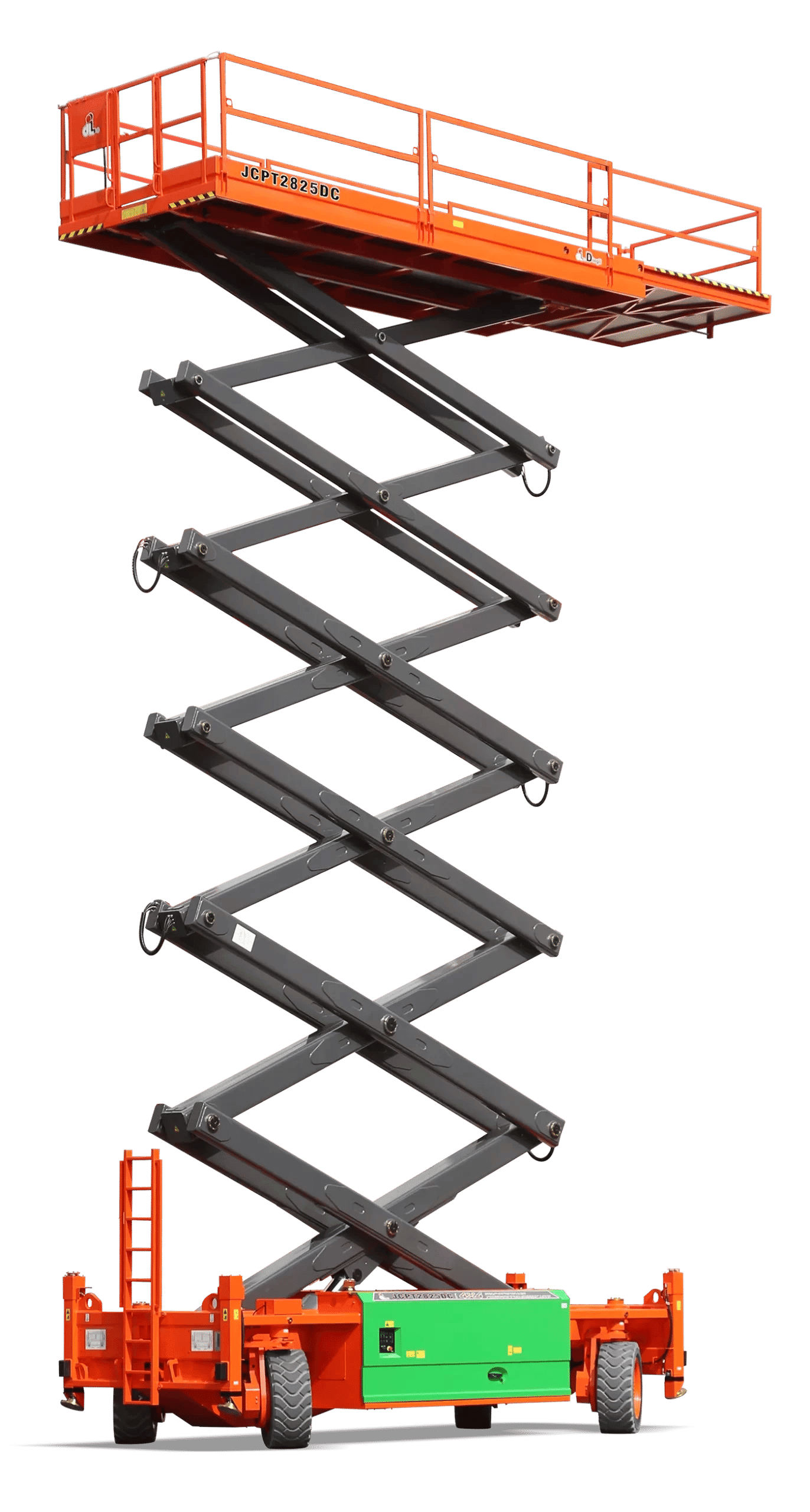

Dingli JCPT2825DC Scissor Lift Specifications

dingli

The Dingli JCPT2825DC Scissor Lift is a powerful, eco-friendly aerial platform built for demanding outdoor and rough terrain environments. With a massive 1000kg load capacity and the ability to drive at full height, it is ideal for heavy-duty construction, infrastructure, and industrial maintenance projects. This zero-emission lift operates silently, making it perfect for environmentally sensitive job sites. Equipped with an 80V/520Ah high-capacity battery pack, it delivers long-lasting, energy-efficient performance. The automatic self-levelling system ensures stability on uneven surfaces, while 4-wheel drive and steering offer superior maneuverability. A one-key extension deck allows operators to work at any desired platform length, increasing reach and productivity. The JCPT2825DC combines rugged strength, intelligent control, and clean operation, making it the perfect solution for large-scale, high-reach, and eco-conscious tasks.

Dingli JCPT2825DC Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Type
Lithium
Battery Voltage / Capacity
80 V / 520 Ah
Charger Input Voltage
80 V
Charger Output / Type
80 A

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
30 %
Lift Time (Loaded)
130sec
Lower Time (Loaded)
100sec
Max Travel Speed (Stowed)
5.6km/h
Travel Speed (Raised)
0.48 km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
1000 kg
Max Platform Capacity
1000kg
Max Platform Occupants (In/Out)
4 / 4 persons
Operating Weight
19.75 Ton

DIMENSIONS

Ground Clearance (Stowed)
0.23m
Overall Height (Rails Lowered)
3.19m
Overall Height (Rails Raised)
4.13 m
Overall Length (Stowed)
5.96 m
Overall Width
2.50m
Wheelbase
4.10 m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
260L

PLATFORM & REACH PERFORMANCE

Max Platform Height
26.00m
Max Working Height
28.00 m
Platform Extension Length
2.10m
Platform Size (L×W)
5.48 × 2.45 m

SAFETY & FEATURES

Max Side Slope (Lateral)
2
Max Slope (Fore/Aft)
3
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes (Tilt Alarm)
Tires
355/55 D625
Tyre Type
British

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Four-Wheel Steering
Turning Radius (Inside)
3.50 m
Turning Radius (Outside)
6.00 m
