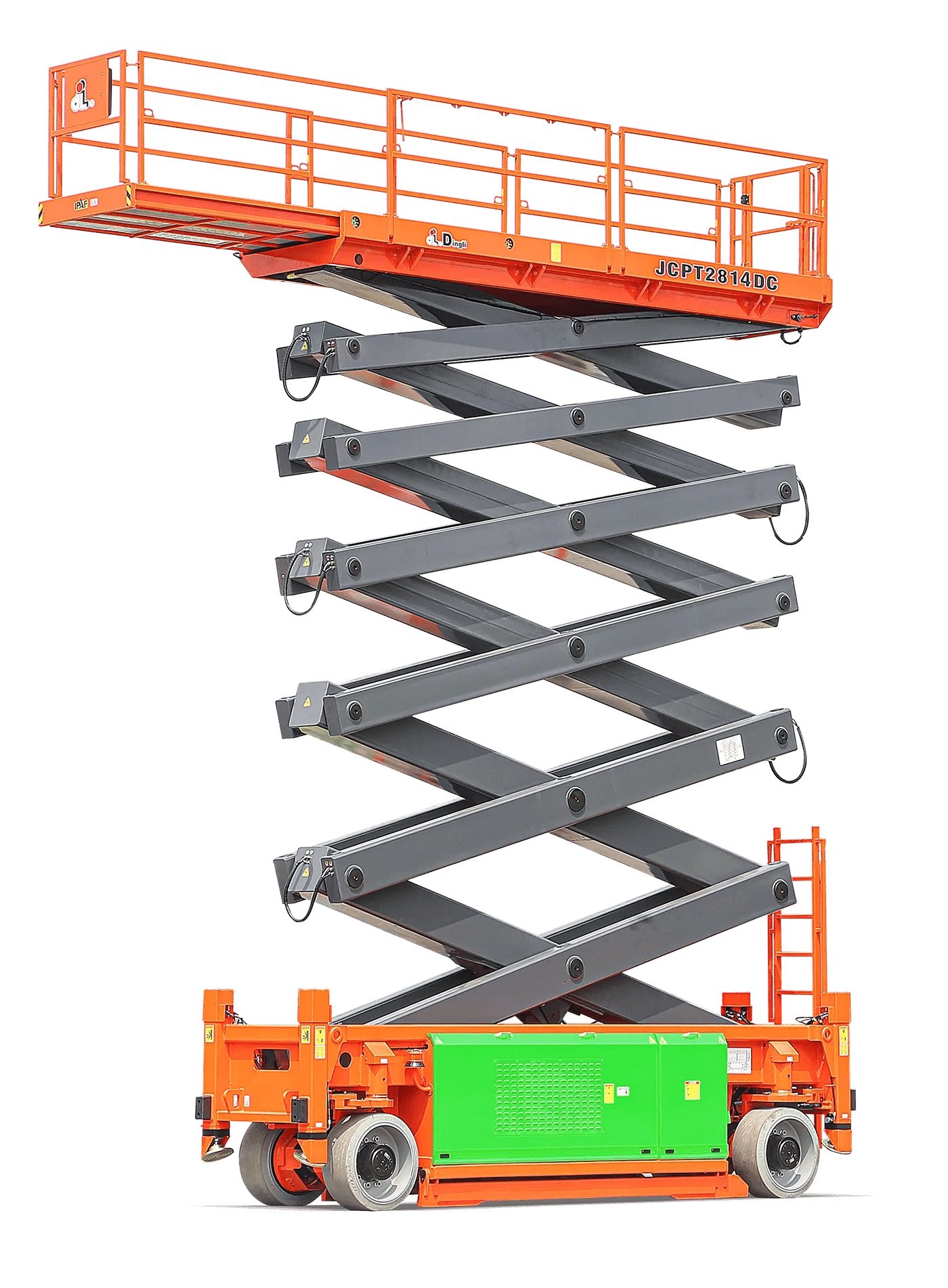

Dingli JCPT2814DC Scissor Lift Specifications

dingli

The Dingli JCPT2814DC Scissor Lift is a high-performance, zero-emission aerial platform designed for challenging outdoor and industrial environments. With a 750kg load capacity and the ability to drive at full height, it’s ideal for construction, maintenance, and installation tasks that demand strength, safety, and efficiency. Its 1.40m width offers excellent passability in confined workspaces, while 4-wheel drive and steering provide superior maneuverability on rough or uneven terrain. The lift features an automatic self-levelling system for enhanced stability and operator safety. Powered by an 80V/520Ah high-capacity battery pack, the JCPT2814DC delivers quiet, eco-friendly performance without compromising on power or runtime. Whether you're working on high-reach infrastructure or energy-efficient building projects, this scissor lift offers a perfect blend of durability, precision, and environmental responsibility.

Dingli JCPT2814DC Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Type
Lithium Battery
Battery Voltage / Capacity
80 V / 520 Ah
Charger Input Voltage
80 V
Charger Output / Type
80 A

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
30%
Lift Time (Loaded)
115 sec
Lower Time (Loaded)
95sec
Max Travel Speed (Stowed)
2.4km/h
Travel Speed (Raised)
0.16km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
750kg
Max Platform Capacity
750kg
Max Platform Occupants (In/Out)
2/2 persons
Operating Weight
18.26 Ton

DIMENSIONS

Ground Clearance (Stowed)
0.19m
Overall Height (Rails Lowered)
3.17m
Overall Height (Rails Raised)
4.16 m
Overall Length (Stowed)
5.69m
Overall Width
1.40 m
Wheelbase
4.14m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
180L

PLATFORM & REACH PERFORMANCE

Max Platform Height
26.00 m
Max Working Height
28.00m
Platform Extension Length
1.90m
Platform Size (L×W)
5.08 × 1.20 m

SAFETY & FEATURES

Max Slope (Fore/Aft)
Max Wind Speed (Outdoor Use)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
28×12-22

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Four-Wheel Steering
Turning Radius (Inside)
2.50m
Turning Radius (Outside)
3.30 m
