Dingli JCPT2223RTB Scissor Lift Specifications

dingli

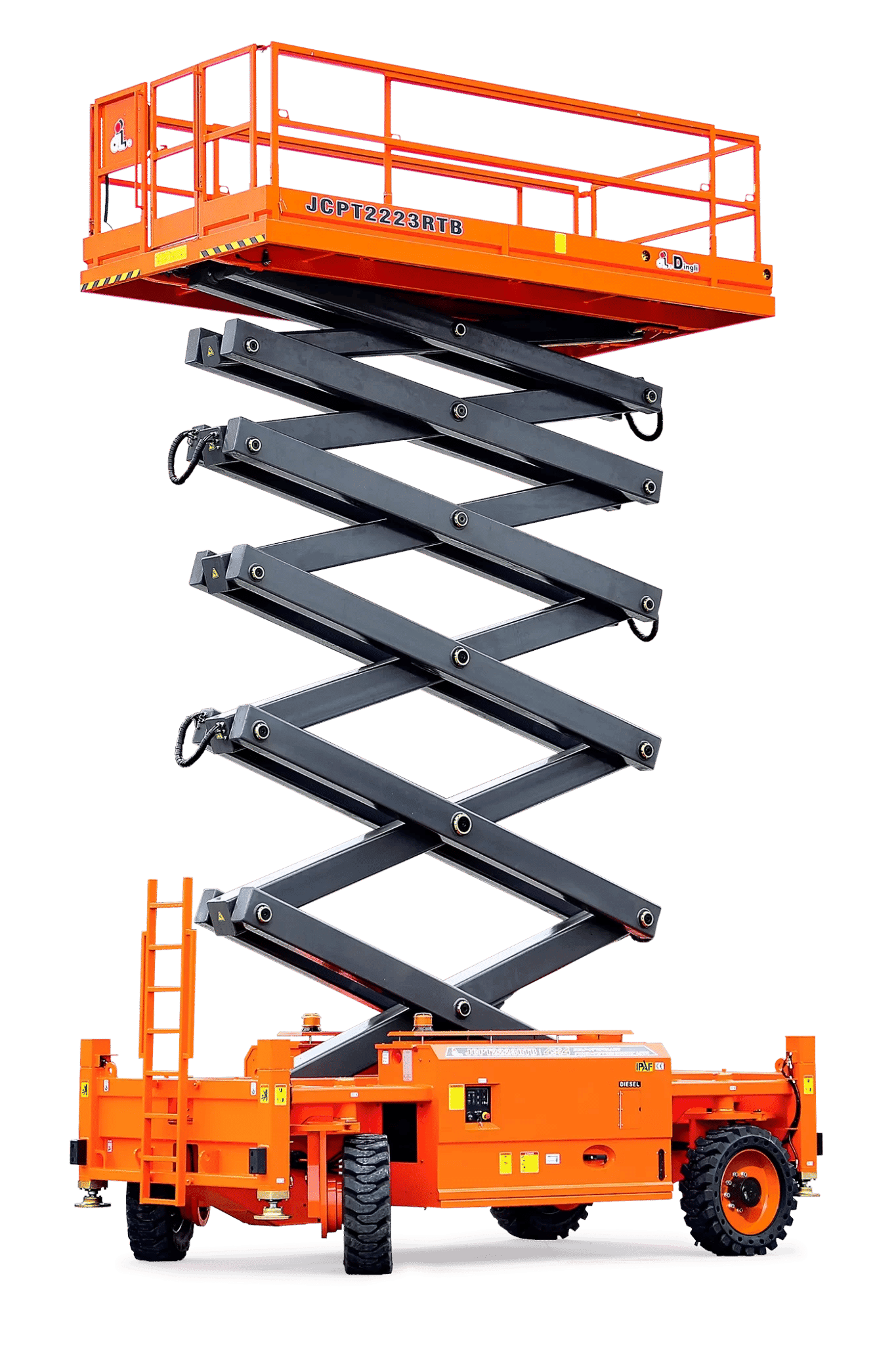

The Dingli JCPT2223RTB Scissor Lift is a robust and versatile aerial work platform designed for demanding heavy-duty tasks across various industries. Featuring a large load capacity of 750 kg and the ability to be driven at full height, it offers enhanced operational efficiency and safety on rough terrain. Powered by a 36.4 kW high-performance engine, the JCPT2223RTB delivers reliable power and excellent maneuverability with its four-wheel drive and steering system. Its automatic self-levelling feature ensures stability on uneven surfaces, providing a safe working environment. The one-key extension large deck allows easy adjustment of the platform size, enabling workers to position themselves precisely for diverse applications. Ideal for construction, maintenance, and industrial projects, this scissor lift combines power, flexibility, and safety for efficient elevated access in challenging conditions.

Dingli JCPT2223RTB Scissor Lift Specifications

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
40%
Lift Time (Loaded)
75sec
Lower Time (Loaded)
75sec
Max Travel Speed (Stowed)
4.7km/h
Travel Speed (Raised)
0.4km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
750kg
Max Platform Capacity
750kg
Max Platform Occupants (In/Out)
4/4persons
Operating Weight
13.0Ton

DIMENSIONS

Ground Clearance (Stowed)
0.4m
Overall Height (Rails Lowered)
3.0m
Overall Height (Rails Raised)
3.86m
Overall Length (Stowed)
4.95m
Overall Width
2.46m
Wheelbase
3.3m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
150L

PLATFORM & REACH PERFORMANCE

Max Platform Height
20.0m
Max Working Height
22.0m
Platform Extension Length
2.7m
Platform Size (L×W)
4.59m×2.25mm

SAFETY & FEATURES

Max Side Slope (Lateral)
X-2°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
36×14-20

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Four-Wheel Steering
Turning Radius (Inside)
1.25m
Turning Radius (Outside)
3.4m
