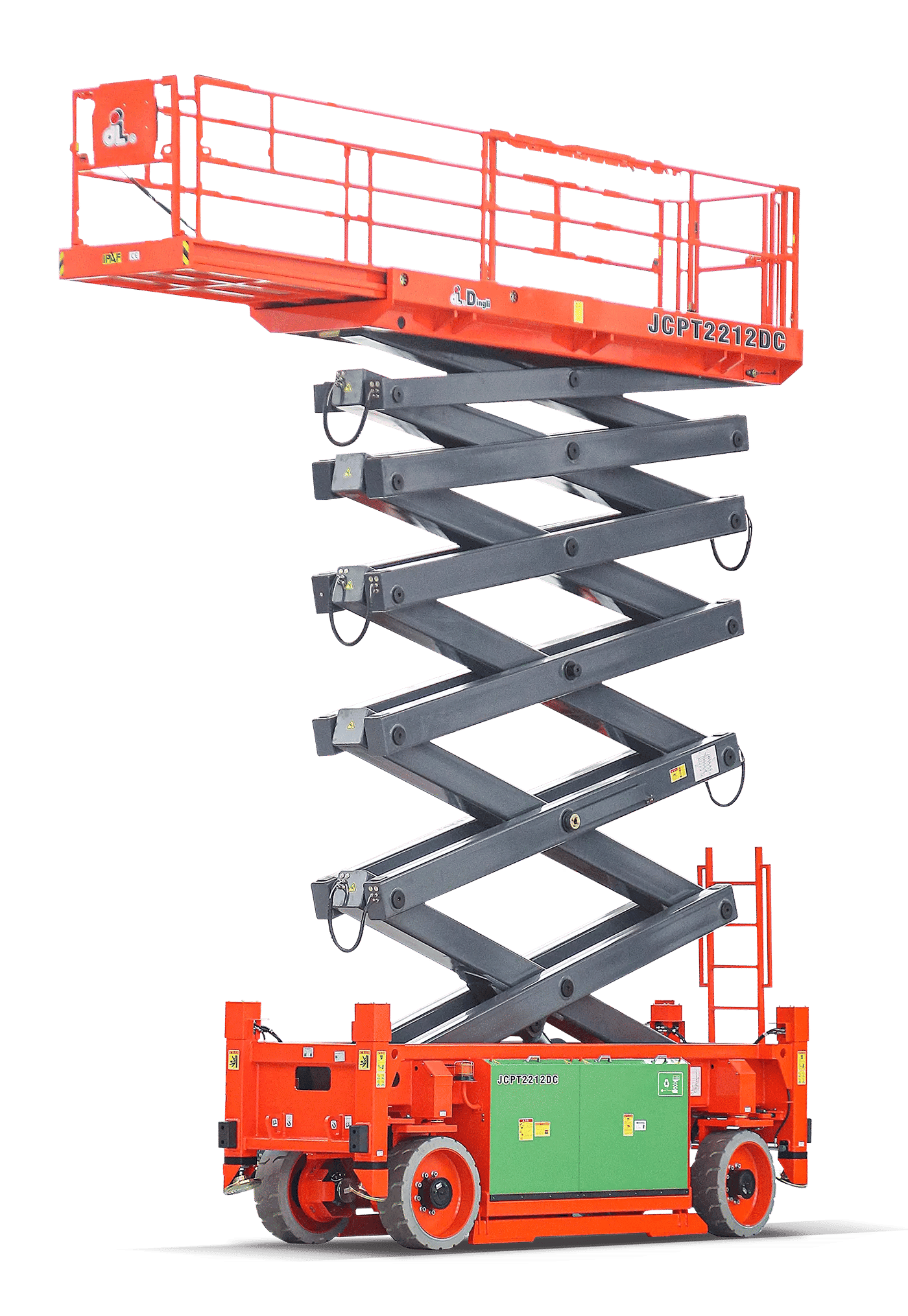

Dingli JCPT2212DC Scissor Lift Specifications

dingli

The Dingli JCPT2212DC Scissor Lift is a robust, zero-emission aerial platform designed for construction, maintenance, and high-reach tasks in both indoor and outdoor environments. With a 750kg load capacity and the ability to drive at full height, it offers high productivity and safety for demanding job sites. Its compact 1.25m width allows it to easily navigate tight spaces, making it ideal for use in narrow aisles or congested work zones. The automatic self-levelling system ensures platform stability on uneven surfaces, while 4-wheel drive and steering provide excellent maneuverability. Powered by a 48V/630Ah high-capacity battery pack, it delivers long operational endurance with zero noise and emissions. Whether for industrial maintenance or eco-friendly construction, the JCPT2212DC delivers efficient, clean, and reliable lifting performance.

Dingli JCPT2212DC Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
48V/630Ah
Charger Output / Type
48V/60A

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
85sec
Lower Time (Loaded)
75sec
Max Travel Speed (Stowed)
3.5km/h
Travel Speed (Raised)
0.5km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
750kg
Max Platform Capacity
750kg
Max Platform Occupants (In/Out)
2/2persons
Operating Weight
12.35Ton

DIMENSIONS

Ground Clearance (Stowed)
0.2m
Overall Height (Rails Lowered)
2.99m
Overall Height (Rails Raised)
3.82m
Overall Length (Stowed)
4.72m
Overall Width
1.25m
Wheelbase
3.18m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
130L

PLATFORM & REACH PERFORMANCE

Max Platform Height
20.0m
Max Working Height
22.0m
Platform Extension Length
1.8m
Platform Size (L×W)
4.3×1.19m

SAFETY & FEATURES

Max Side Slope (Lateral)
1°(0°)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
28×10-22

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Four-Wheel Steering
Turning Radius (Inside)
1.6m
Turning Radius (Outside)
2.3m
