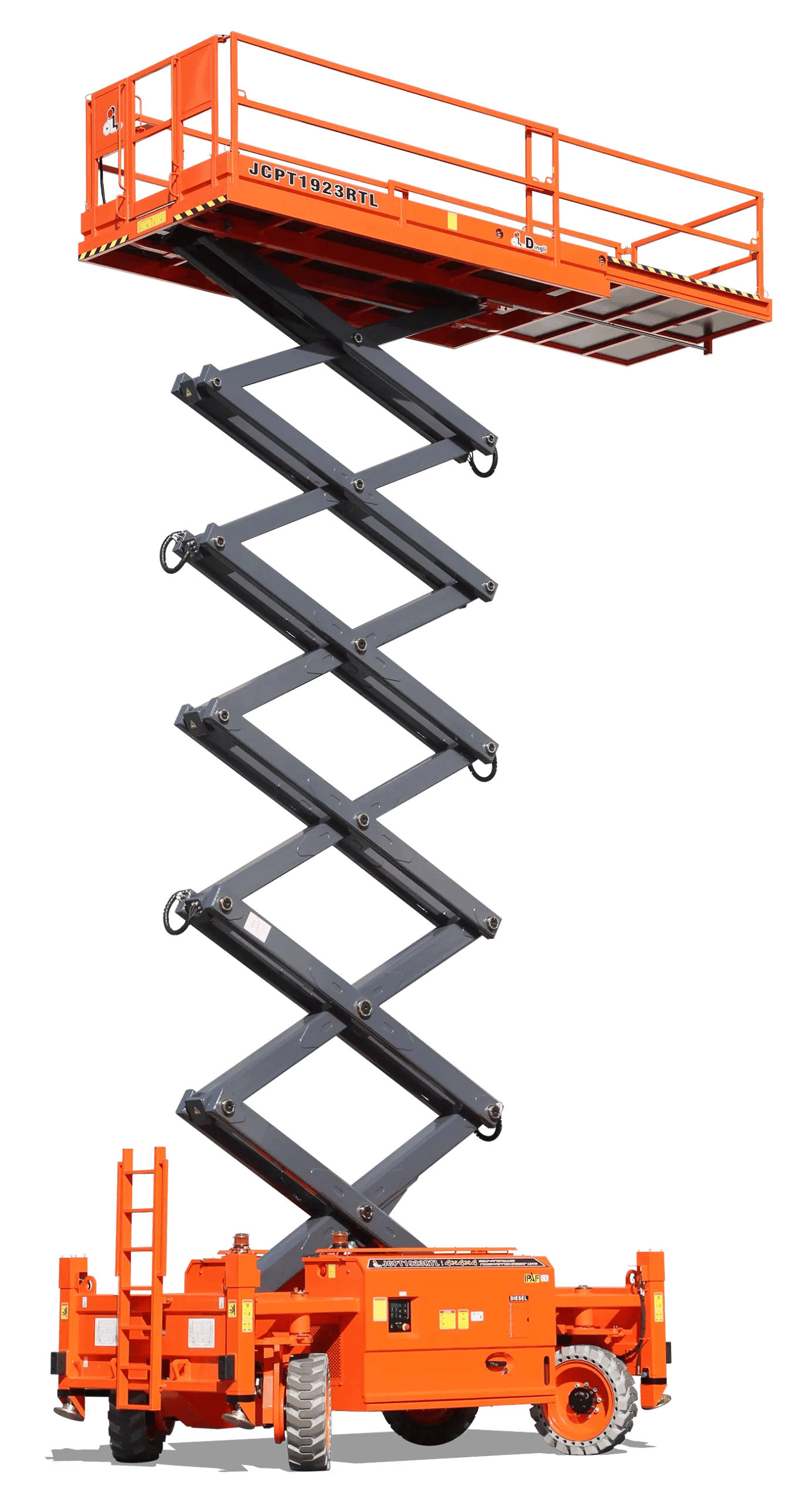

Dingli JCPT1923RTL Scissor Lift Specifications

dingli

The Dingli JCPT1923RTL Scissor Lift is a powerful and versatile aerial work platform engineered for demanding heavy-duty applications. With a large load capacity of 680 kg and the ability to be driven at full height, it maximizes operational efficiency and safety on challenging rough terrain. Powered by a 36.4 kW high-performance engine, this scissor lift offers excellent maneuverability and flexibility through its four-wheel drive and steering system. Its automatic self-levelling feature ensures stability on uneven surfaces, providing a secure working environment. The one-key extension large deck allows easy adjustment of the platform size, enabling precise positioning for a variety of tasks. Ideal for construction, maintenance, and industrial projects, the JCPT1923RTL combines strength, adaptability, and safety to meet the needs of complex elevated work environments.

Dingli JCPT1923RTL Scissor Lift Specifications

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
680kg
Max Platform Capacity
680kg
Max Platform Occupants (In/Out)
4/4persons
Operating Weight
10.53Ton

TRANSMISSION & PERFORMANCE

Gradeability
40%
Lift Time (Loaded)
70sec
Lower Time (Loaded)
70sec
Max Travel Speed (Stowed)
4.5km/h
Travel Speed (Raised)
0.6km/h

DIMENSIONS

Ground Clearance (Stowed)
0.4m
Overall Height (Rails Lowered)
2.75m
Overall Height (Rails Raised)
3.6m
Overall Length (Stowed)
4.46m
Overall Width
2.29m
Wheelbase
2.85m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
135L

PLATFORM & REACH PERFORMANCE

Max Platform Height
17.0m
Max Working Height
19.0m
Platform Extension Length
2.0m
Platform Size (L×W)
4.06×2.00m

SAFETY & FEATURES

Max Side Slope (Lateral)
Y-3°
Max Slope (Fore/Aft)
X-2°
Tires
33×12-20

STEERING & TURNING

Turning Radius (Inside)
1.00m
Turning Radius (Outside)
3.20m
