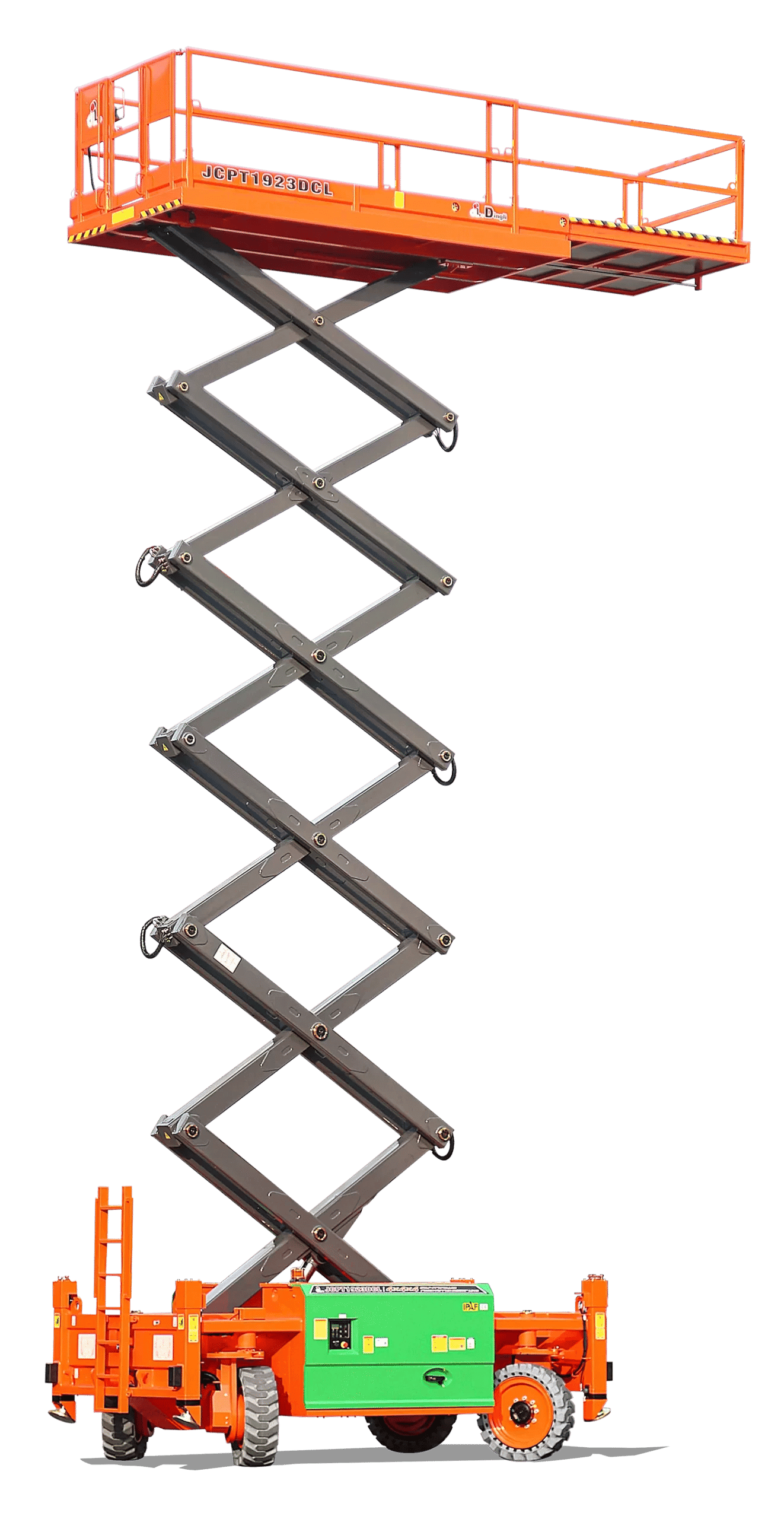

Dingli JCPT1923DCL Scissor Lift Specifications

dingli

The Dingli JCPT1923DCL Scissor Lift is a rugged, zero-emission aerial platform built to perform in environmentally demanding and rough terrain conditions. With a load capacity of 680kg and the ability to drive at full height, it is ideal for construction, installation, and heavy-duty maintenance tasks. Its automatic self-levelling system ensures safety and stability on uneven surfaces, while 4-wheel drive and steering offer exceptional maneuverability. The 48V/450Ah high-capacity battery pack delivers long runtimes and powerful performance with no noise and zero emissions, making it suitable for eco-sensitive job sites. The one-key extension deck adds flexibility, allowing operators to work efficiently at different platform lengths. Durable, efficient, and clean, the JCPT1923DCL is a smart solution for projects demanding reliable elevation with environmental responsibility.

Dingli JCPT1923DCL Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
48V / 450Ah
Charger Input Voltage
48V
Charger Output / Type
60A

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
40%
Lift Time (Loaded)
70sec
Lower Time (Loaded)
70sec
Max Travel Speed (Stowed)
4.5km/h
Travel Speed (Raised)
0.6km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
680kg
Max Platform Capacity
680kg
Max Platform Occupants (In/Out)
4 / 4persons
Operating Weight
10.87Ton

DIMENSIONS

Ground Clearance (Stowed)
0.40m
Overall Height (Rails Lowered)
2.75m
Overall Height (Rails Raised)
3.60m
Overall Length (Stowed)
4.46m
Overall Width
2.29m
Wheelbase
2.85m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
135L

PLATFORM & REACH PERFORMANCE

Max Platform Height
17.00m
Max Working Height
19.00m
Platform Extension Length
2.00m
Platform Size (L×W)
4.06 × 2.00m

SAFETY & FEATURES

Max Side Slope (Lateral)
Max Slope (Fore/Aft)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes
Tires
33×12-20

BRAKE SYSTEM

Service Brake Type
Four-Wheel Braking

STEERING & TURNING

Steering Type
Four-Wheel Steering
Turning Radius (Inside)
1.00m
Turning Radius (Outside)
3.20m
