Dingli JCPT1912DCL Scissor Lift Specifications

dingli

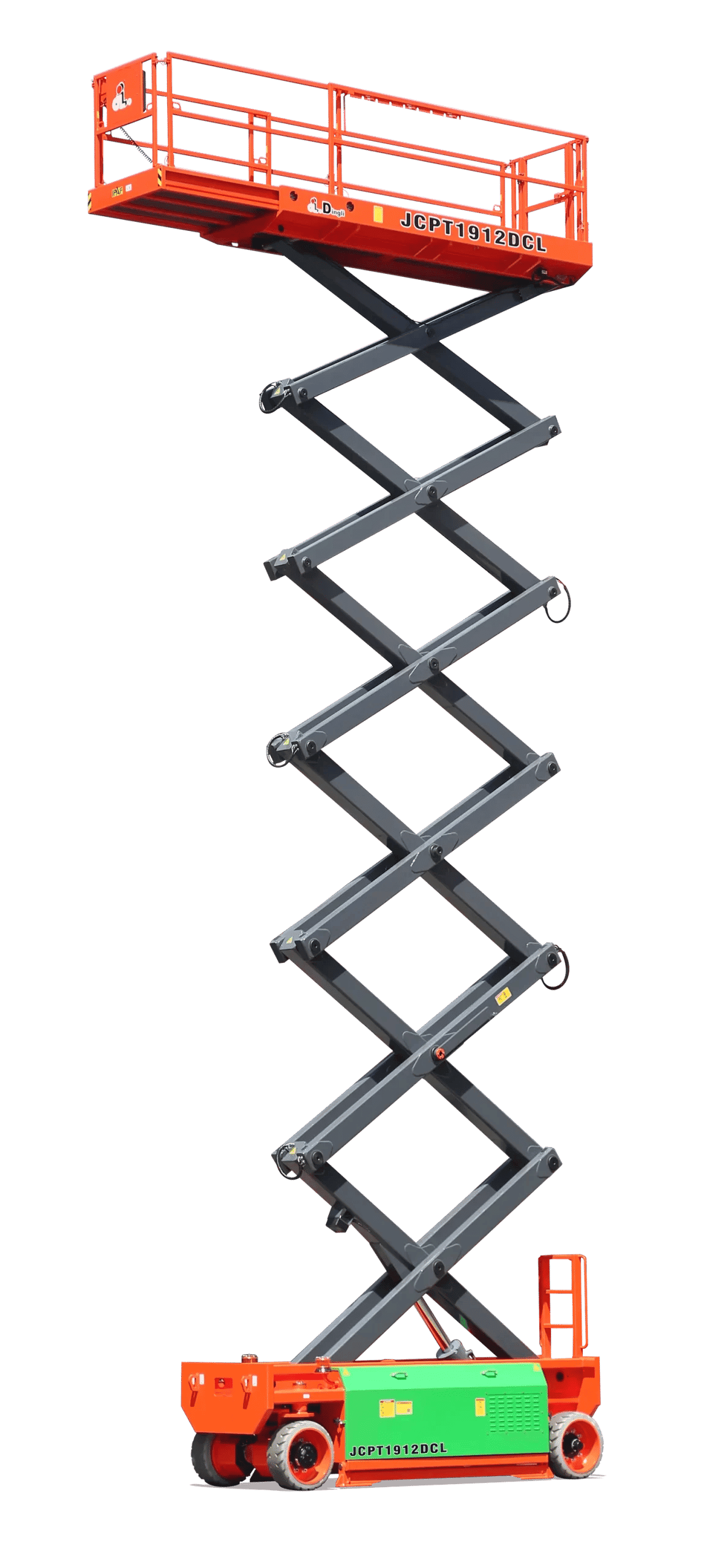

The Dingli JCPT1912DCL Scissor Lift is a compact, zero-emission access platform engineered for eco-sensitive and demanding work environments. With a load capacity of 500kg and the ability to drive at full height, it is ideal for a wide range of construction, maintenance, and installation tasks. Its 1.25m overall width allows easy navigation through tight indoor or outdoor spaces, while the automatic self-levelling system ensures stability and safety on uneven surfaces. The 4-wheel drive and steering provide excellent maneuverability across varied terrains. Powered by a 48V/360Ah high-capacity battery pack, this lift delivers strong, quiet, and clean performance with extended operational endurance. Whether you're working in warehouses, industrial facilities, or green construction sites, the JCPT1912DCL offers a perfect balance of efficiency, durability, and environmental responsibility.

Dingli JCPT1912DCL Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
48V / 360Ah
Charger Output / Type
48V / 60A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
30%
Lift Time (Loaded)
70sec
Lower Time (Loaded)
76sec
Max Travel Speed (Stowed)
4.5km/h
Travel Speed (Raised)
0.4km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
500kg
Max Platform Capacity
500kg
Max Platform Occupants (In/Out)
2/0persons
Operating Weight
7.14Ton

DIMENSIONS

Ground Clearance (Stowed)
0.15m
Overall Height (Rails Lowered)
2.47m
Overall Height (Rails Raised)
3.24m
Overall Length (Stowed)
3.76m
Overall Width
1.25m
Wheelbase
2.89m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
50L

PLATFORM & REACH PERFORMANCE

Max Platform Height
17.0m
Max Working Height
19.0m
Platform Extension Length
1.2m
Platform Size (L×W)
3.44m × 1.17mm

SAFETY & FEATURES

Max Side Slope (Lateral)
1.5°
Max Slope (Fore/Aft)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes
Tires
22×9×16
Tyre Type
Solid Rubber Tyres

BRAKE SYSTEM

Service Brake Type
Four-Wheel Braking

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
1.0m
Turning Radius (Outside)
3.5m
