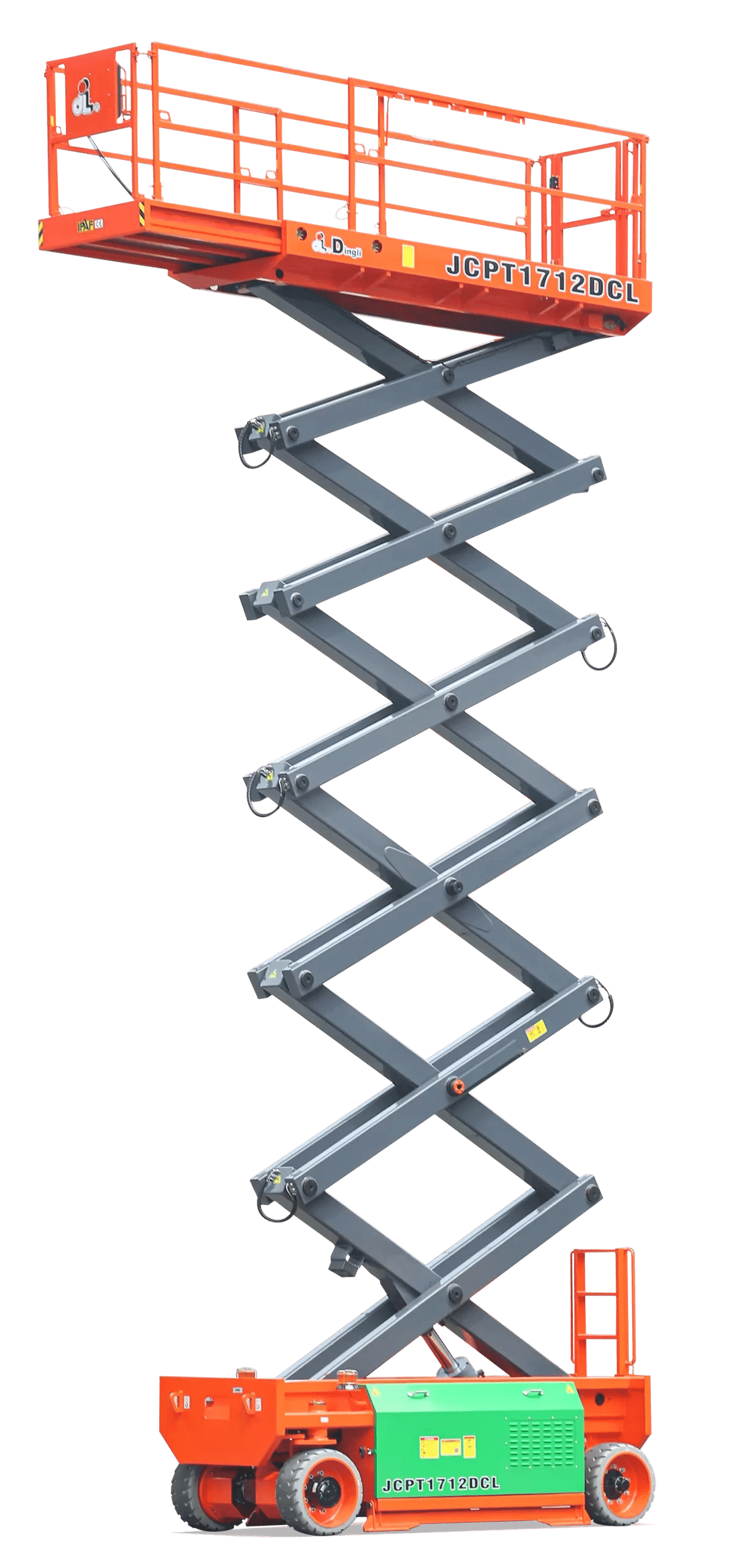

Dingli JCPT1712DCL Scissor Lift Specifications

dingli

The Dingli JCPT1712DCL Scissor Lift is a lightweight yet rugged aerial platform designed for efficient and environmentally friendly elevation tasks. With a 500kg load capacity and full-height drivability, it is ideal for a wide range of construction, maintenance, and industrial applications. Its compact 1.25m width allows for seamless navigation through tight indoor or outdoor spaces, while 4-wheel drive and steering ensure excellent mobility across uneven terrain. The automatic self-levelling system enhances operator safety and platform stability, even on sloped surfaces. Powered by a 48V/320Ah high-capacity battery pack, this lift delivers zero-emission, low-noise performance, making it suitable for sensitive environments like factories, warehouses, and clean zones. The JCPT1712DCL is a perfect blend of power, precision, and eco-conscious engineering, built to handle demanding tasks with ease and reliability.

Dingli JCPT1712DCL Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
48V/320Ah
Charger Output / Type
48V/60A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
30%
Lift Time (Loaded)
65sec
Lower Time (Loaded)
68sec
Max Travel Speed (Stowed)
4.5km/h
Travel Speed (Raised)
0.4km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
500kg
Max Platform Capacity
500kg
Max Platform Occupants (In/Out)
2/0persons
Operating Weight
6.28Ton

DIMENSIONS

Ground Clearance (Stowed)
0.15m
Overall Height (Rails Lowered)
2.47m
Overall Height (Rails Raised)
3.24m
Overall Length (Stowed)
3.36m
Overall Width
1.25m
Wheelbase
2.49m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
45L

PLATFORM & REACH PERFORMANCE

Max Platform Height
15.2m
Max Working Height
17.2m
Platform Extension Length
1.2m
Platform Size (L×W)
3.04×1.17m

SAFETY & FEATURES

Max Side Slope (Lateral)
X-1.5°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
22×9×16
Tyre Type
Solid Rubber Tyres

BRAKE SYSTEM

Service Brake Type
Four-Wheel Braking

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.6m
Turning Radius (Outside)
3.0m
