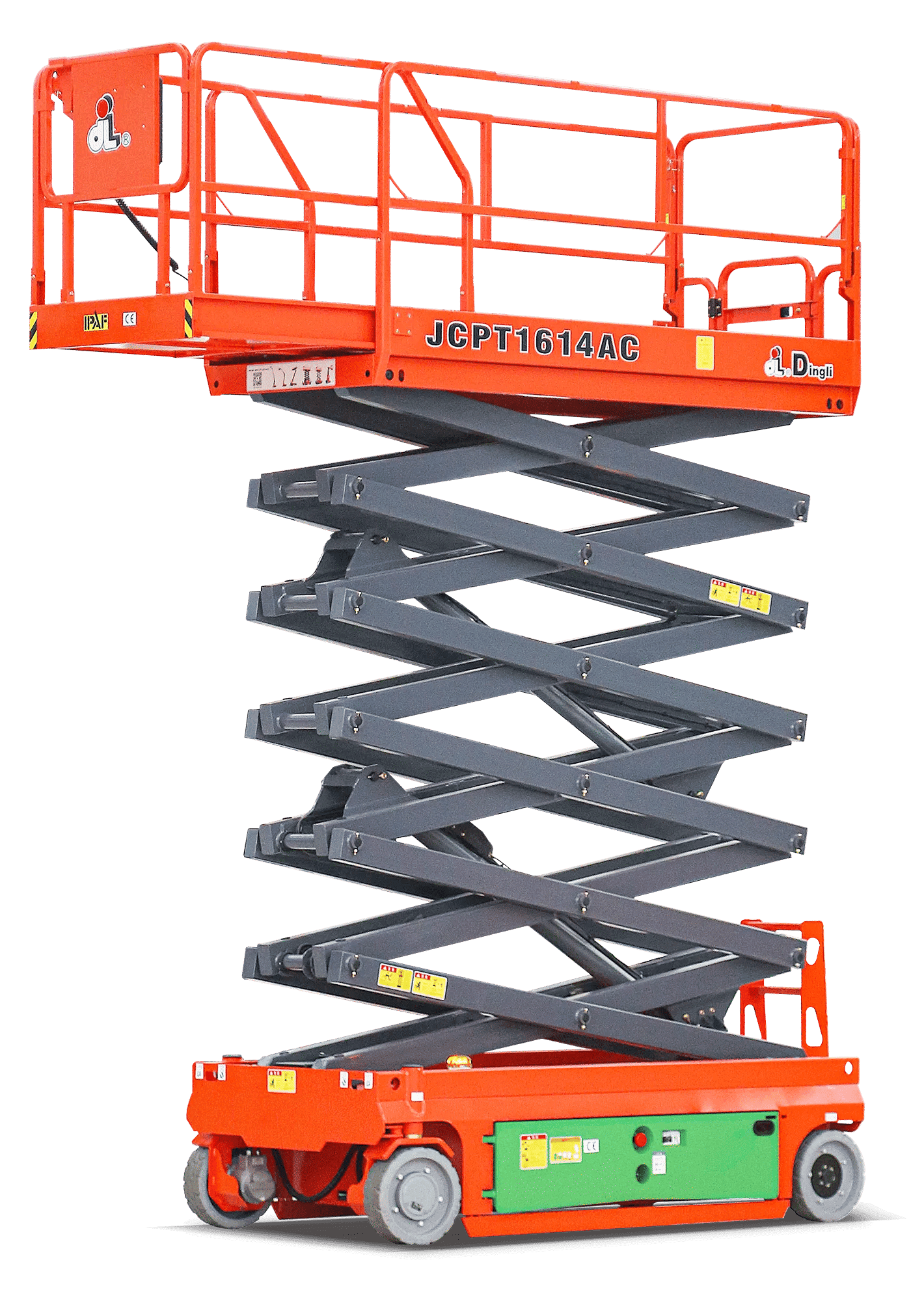

Dingli JCPT1614AC Compact Scissor Lift Specifications

dingli

The Dingli JCPT1614AC Compact Scissor Lift is a powerful, maintenance-free access solution designed for indoor maintenance, facility upgrades, and industrial tasks. Featuring a fully sealed, waterproof AC drive and lift system, it ensures reliable performance in wet, dusty, or demanding environments. With an overall width of 1.39 meters, this compact lift navigates narrow aisles with ease, while the unidirectional extension platform allows operators to reach precise working positions. Built for safety, it includes an automatic pothole protection system and a fault code display, reducing downtime and ensuring smooth, secure operation. Powered by a 24V/240Ah high-capacity battery pack, the JCPT1614AC offers long-lasting, energy-efficient, and zero-emission performance. It’s the perfect choice for professionals seeking durability, precision, and operational efficiency in space-constrained or environmentally sensitive job sites.

Dingli JCPT1614AC Compact Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V/240Ah
Charger Output / Type
24V/30A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
72sec
Lower Time (Loaded)
67sec
Max Travel Speed (Stowed)
5.0km/h
Travel Speed (Raised)
0.8km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
250kg
Max Platform Occupants (In/Out)
2/0persons
Operating Weight
3.47Ton

DIMENSIONS

Ground Clearance (Stowed)
0.1m
Overall Height (Rails Lowered)
2.09m
Overall Height (Rails Raised)
2.62m
Overall Length (Stowed)
2.84m
Overall Width
1.39m
Wheelbase
2.22m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
20L

PLATFORM & REACH PERFORMANCE

Max Platform Height
13.7m
Max Working Height
15.7m
Platform Extension Length
0.9m
Platform Size (L×W)
2.64×1.12m

SAFETY & FEATURES

Max Side Slope (Lateral)
X-1.5°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
φ381×127mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.0m
Turning Radius (Outside)
2.7m
