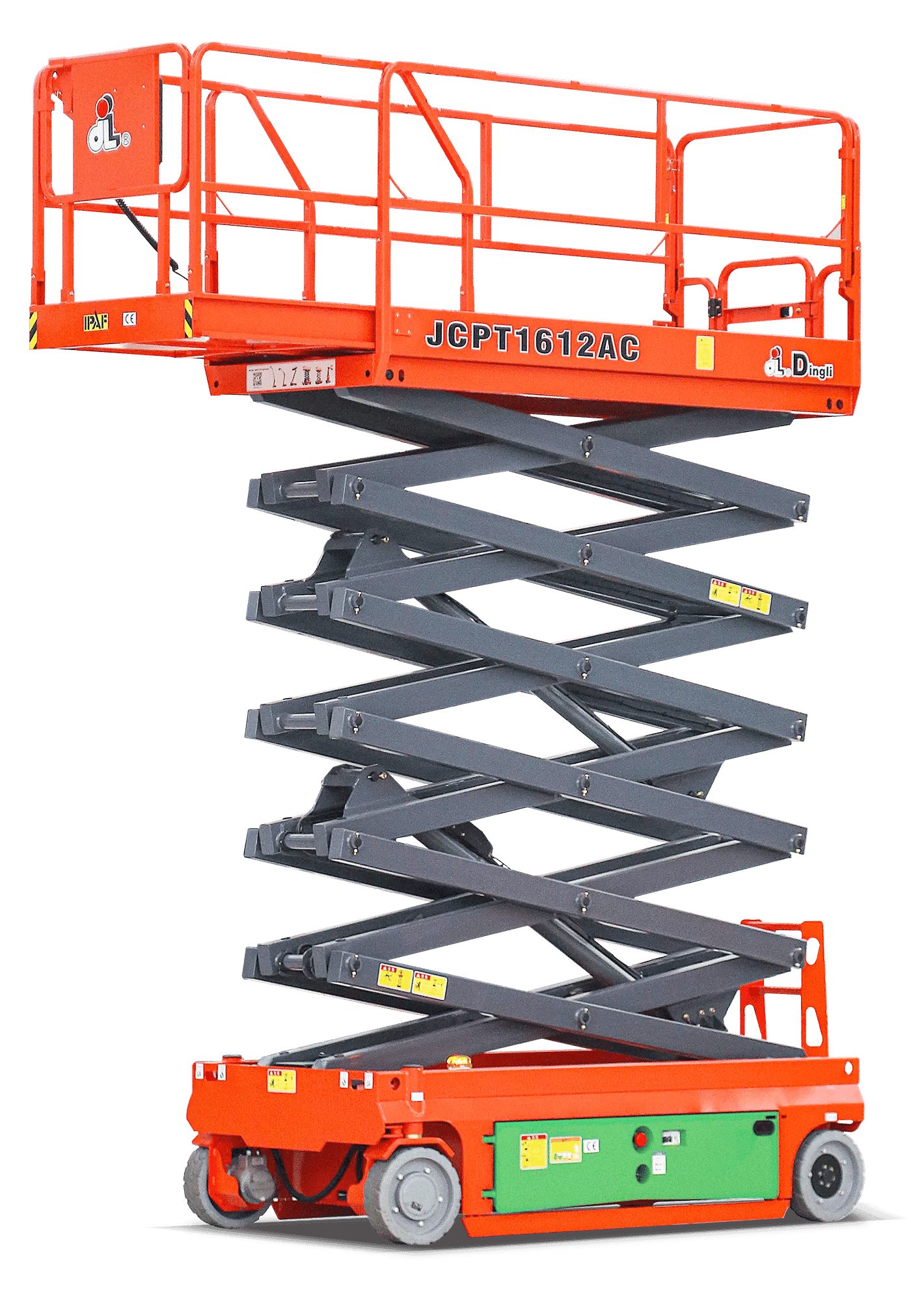

Dingli JCPT1612AC Compact scissor lift Specifications

dingli

The Dingli JCPT1612AC Compact Scissor Lift is a durable, high-performance access platform engineered for indoor and facility maintenance tasks. Powered by a fully sealed AC drive and lift system, it ensures efficient, maintenance-free operation with enhanced waterproof protection, making it ideal for demanding industrial environments. With an overall width of 1.25 meters, it easily navigates tight spaces, while the unidirectional extension platform offers easy reach to the operational point. The lift features an automatic pothole protection system for improved safety and an automatic fault code display to minimize downtime and maximize productivity. Equipped with a 24V/240Ah high-capacity battery pack, the JCPT1612AC delivers long-lasting, zero-emission performance. Compact, reliable, and built for continuous use, it is the perfect solution for professionals requiring precision, power, and dependability in confined workspaces.

Dingli JCPT1612AC Compact scissor lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V / 240Ah
Charger Input Voltage
24V
Charger Output / Type
30A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25 %
Lift Time (Loaded)
70sec
Lower Time (Loaded)
67sec
Max Travel Speed (Stowed)
5.0 km/h
Travel Speed (Raised)
0.8km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
250kg
Max Platform Occupants (In/Out)
2 / 0 persons
Operating Weight
3.36 Ton

DIMENSIONS

Ground Clearance (Stowed)
0.10m
Overall Height (Rails Lowered)
2.09m
Overall Height (Rails Raised)
2.62 m
Overall Length (Stowed)
2.84m
Overall Width
1.25m
Wheelbase
2.22m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
20L

PLATFORM & REACH PERFORMANCE

Max Platform Height
13.70m
Max Working Height
15.70 m
Platform Extension Length
0.90m
Platform Size (L×W)
2.64 × 1.12 m

SAFETY & FEATURES

Max Side Slope (Lateral)
1.5°
Max Slope (Fore/Aft)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
φ381×127mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.00 m
Turning Radius (Outside)
2.65m
