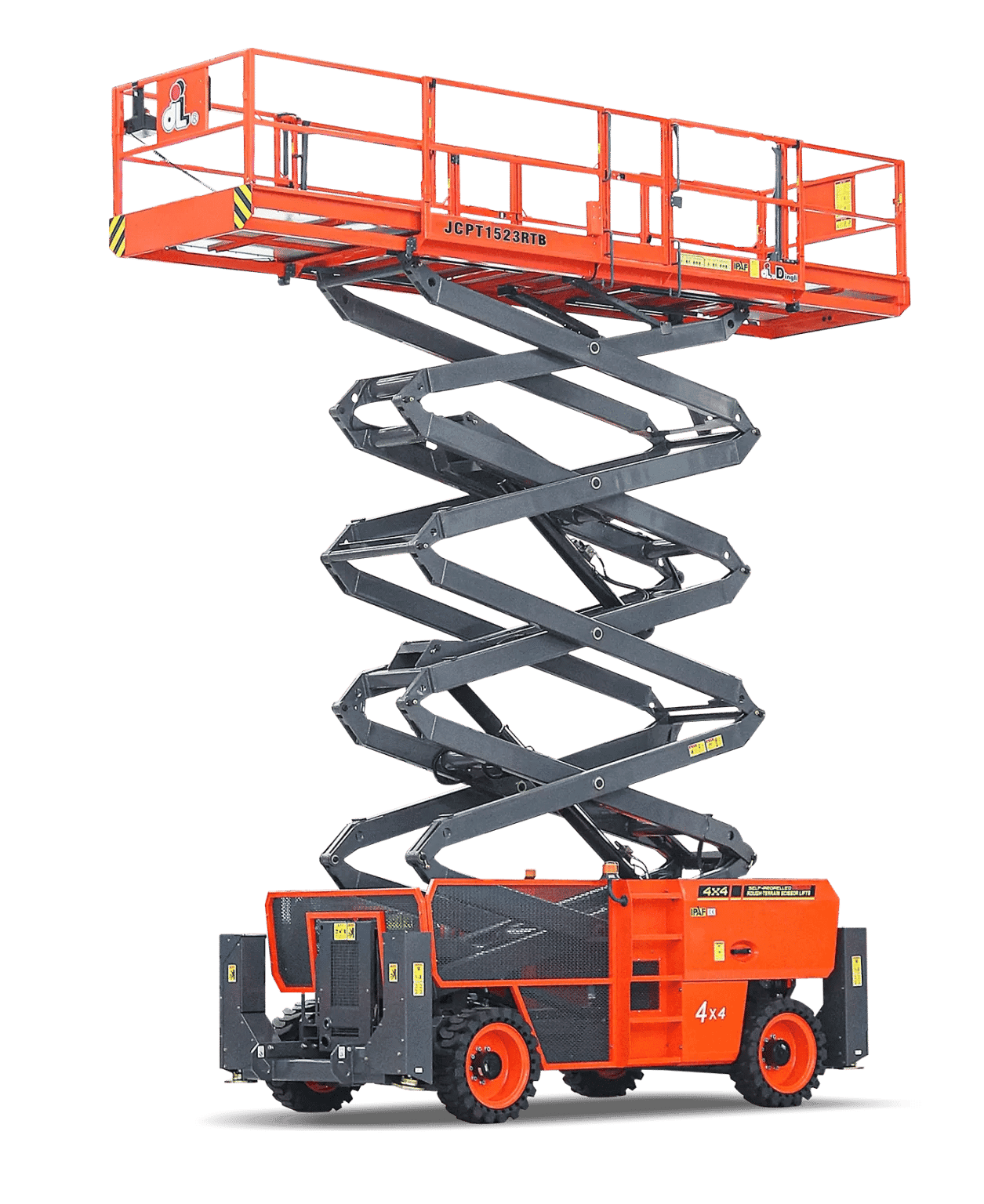

Dingli JCPT1523RTB Scissor Lift Specifications

dingli

The Dingli JCPT1523RTB Scissor Lift is a powerful and versatile aerial work platform designed for demanding rough terrain applications. With a large load capacity of 680 kg and the ability to be driven at full height, it offers enhanced safety and efficiency on challenging job sites. Powered by a 36.8 kW high-performance engine, the JCPT1523RTB provides excellent maneuverability and flexibility through its four-wheel drive and steering system. Its automatic self-levelling feature ensures stability on uneven surfaces, creating a secure working environment. The dual-way extension large deck allows multiple workers to operate simultaneously, increasing productivity and versatility. Ideal for construction, maintenance, and industrial projects, this scissor lift combines strength, adaptability, and safety to meet the needs of various elevated work scenarios in rough terrain conditions.

Dingli JCPT1523RTB Scissor Lift Specifications

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
50%
Lift Time (Loaded)
70sec
Lower Time (Loaded)
52sec
Max Travel Speed (Stowed)
6.0km/h
Travel Speed (Raised)
1.1km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
227kg
Max Platform Capacity
680kg
Max Platform Occupants (In/Out)
7persons
Operating Weight
7.9Ton

DIMENSIONS

Ground Clearance (Stowed)
0.3m
Overall Height (Rails Lowered)
2.28m
Overall Height (Rails Raised)
2.98m
Overall Length (Stowed)
4.88m
Overall Width
2.27m
Wheelbase
2.86m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
130L

PLATFORM & REACH PERFORMANCE

Max Platform Height
13.0m
Max Working Height
15.0m
Platform Size (L×W)
3.98m×1.83mm

SAFETY & FEATURES

Max Side Slope (Lateral)
Max Slope (Fore/Aft)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
33×12-20

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
2.35m
Turning Radius (Outside)
5.2m
