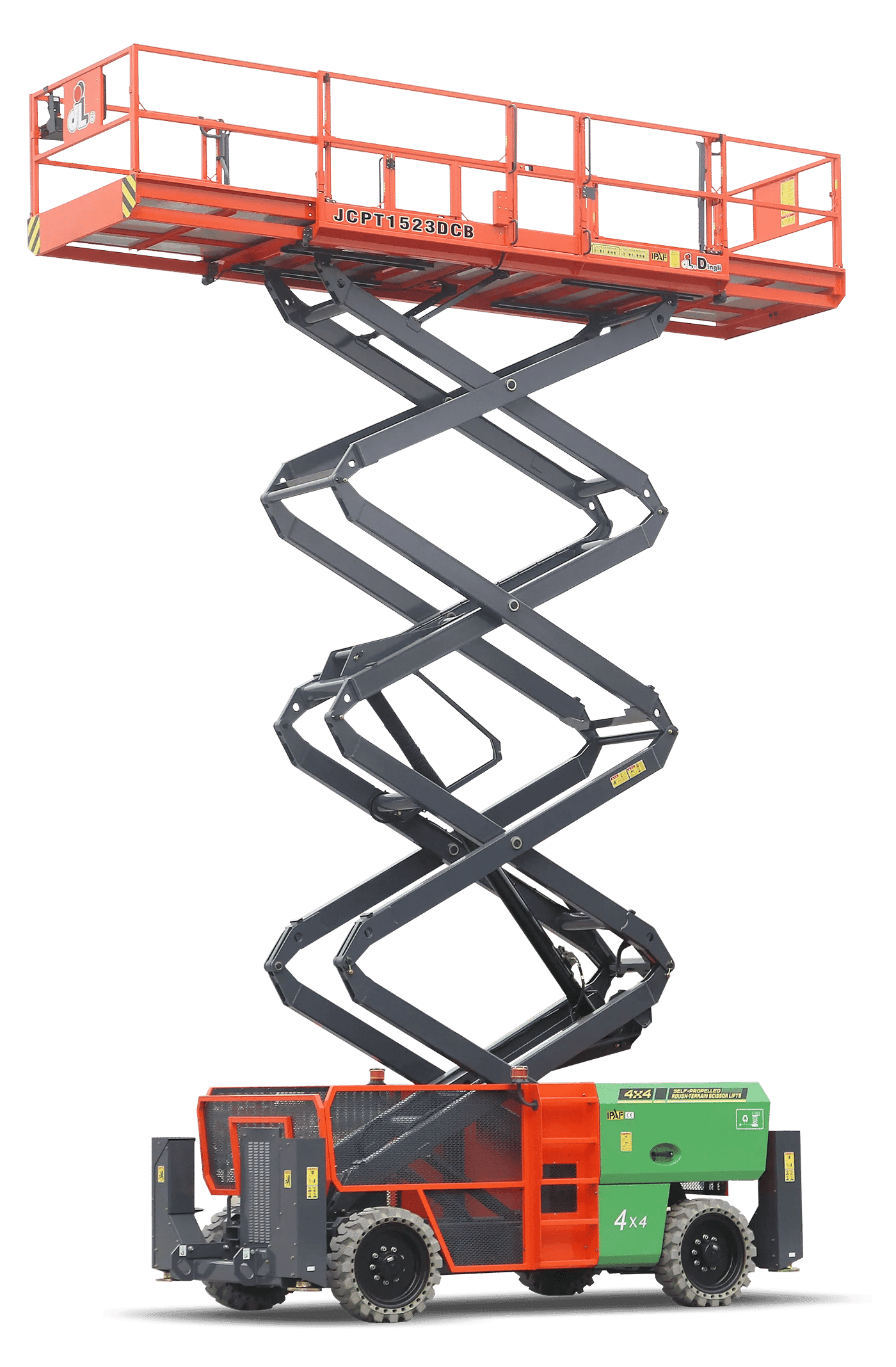

Dingli JCPT1523DCB Scissor Lift Specifications

dingli

The Dingli JCPT1523DCB Scissor Lift is a rugged and versatile aerial platform designed for heavy-duty lifting and off-road performance. With a wide working range and large extension platform, it offers the flexibility needed for construction, industrial installation, and maintenance tasks in challenging environments. Its compact yet stable design ensures safety and ease of use, while folding guardrails provide added convenience during transport. The lift features automatic hydraulic levelling outriggers for enhanced stability on uneven ground and boasts 40% gradeability for excellent off-road capability. Equipped with 4-wheel drive and steering, it delivers superior maneuverability across rough terrain. Powered by a 48V/450Ah high-capacity battery pack, the JCPT1523DCB offers zero-emission, energy-efficient operation, making it the ideal solution for demanding projects that require reliability, reach, and rugged terrain adaptability.

Dingli JCPT1523DCB Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
48V/450Ah
Charger Output / Type
48V/60A

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
40%
Lift Time (Loaded)
70sec
Lower Time (Loaded)
55sec
Max Travel Speed (Stowed)
6.0km/h
Travel Speed (Raised)
1.0km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
227kg
Max Platform Capacity
680kg
Max Platform Occupants (In/Out)
7persons
Operating Weight
8.2Ton

DIMENSIONS

Ground Clearance (Stowed)
0.30m
Overall Height (Rails Lowered)
2.28m
Overall Height (Rails Raised)
2.98m
Overall Length (Stowed)
3.98m
Overall Width
2.29m
Wheelbase
2.86m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
130L

PLATFORM & REACH PERFORMANCE

Max Platform Height
13.00m
Max Working Height
15.00m
Platform Extension Length
1.43m
Platform Size (L×W)
3.98×1.83m

SAFETY & FEATURES

Max Side Slope (Lateral)
2
Max Slope (Fore/Aft)
3
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes
Tires
33×12-20

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
2.35m
Turning Radius (Outside)
5.20m
