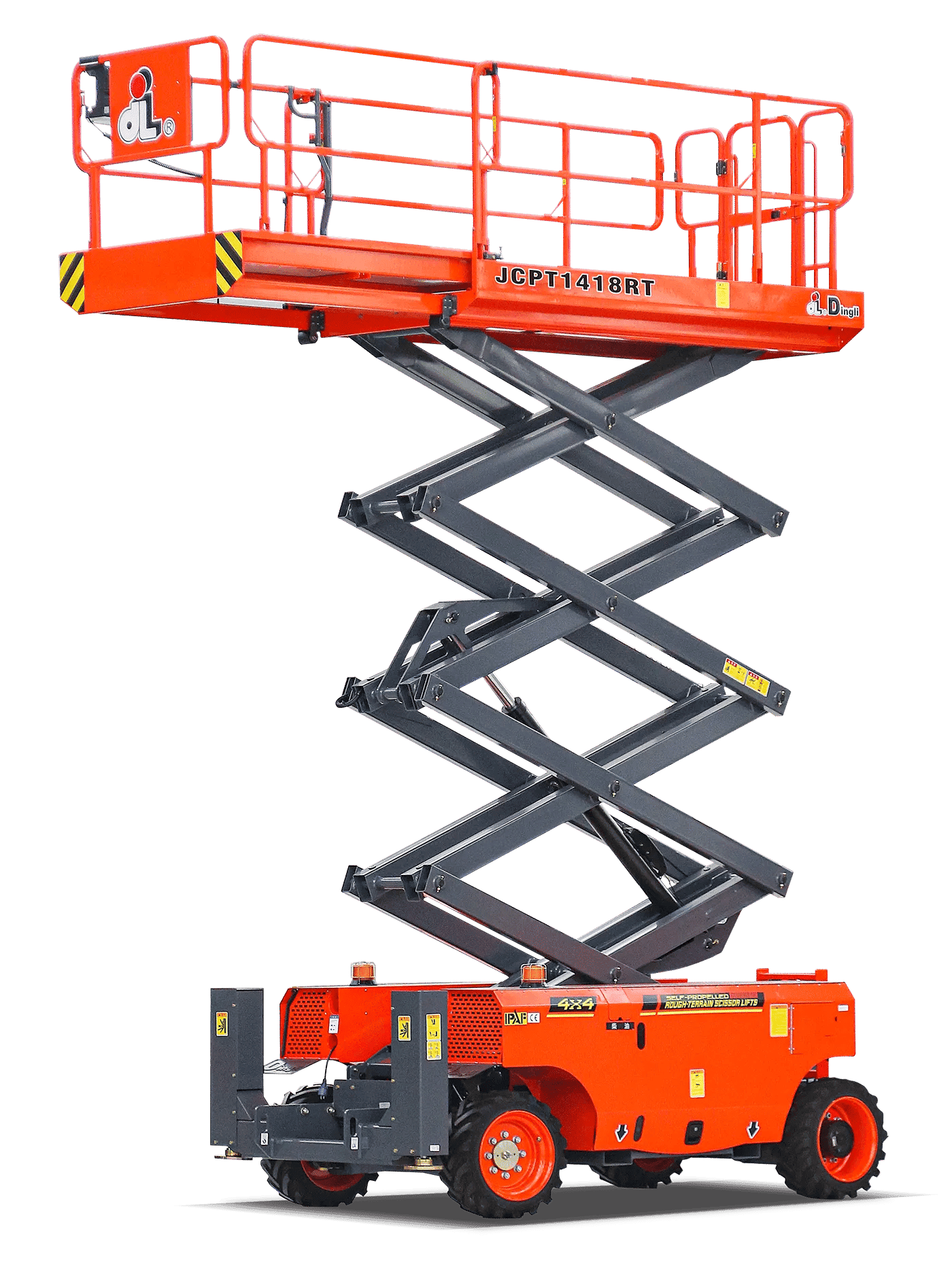

Dingli JCPT1418RT Scissor Lift Specifications

dingli

The Dingli JCPT1418RT Scissor Lift is a compact yet powerful aerial work platform designed for versatile rough terrain applications. Equipped with a large extension working platform and folding guard, it offers enhanced operational efficiency and safety across a wide working range. Its automatic hydraulic leveling outriggers and 40% gradeability provide superior stability, making it ideal for challenging outdoor environments. Powered by an energy-saving 18.2 kW low-power engine, the JCPT1418RT ensures fuel efficiency without compromising performance. The four-wheel drive and steering system deliver excellent maneuverability and flexibility, enabling smooth navigation over uneven surfaces. Perfect for construction, maintenance, and industrial tasks, this scissor lift combines compact design, stability, and versatility to meet the demands of various elevated work scenarios in rough terrain conditions.

Dingli JCPT1418RT Scissor Lift Specifications

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
40%
Lift Time (Loaded)
45sec
Lower Time (Loaded)
46sec
Max Travel Speed (Stowed)
5.0km/h
Travel Speed (Raised)
0.45km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
136kg
Max Platform Capacity
363kg
Max Platform Occupants (In/Out)
3/2persons
Operating Weight
5.05Ton

DIMENSIONS

Ground Clearance (Stowed)
0.24m
Overall Height (Rails Lowered)
1.97m
Overall Height (Rails Raised)
2.74m
Overall Length (Stowed)
3.84m
Overall Width
1.76m
Wheelbase
2.29m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
71L

PLATFORM & REACH PERFORMANCE

Max Platform Height
12.3m
Max Working Height
14.3m
Platform Extension Length
1.43m
Platform Size (L×W)
2.88m×1.52mm

SAFETY & FEATURES

Max Side Slope (Lateral)
1.5
Max Slope (Fore/Aft)
3
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
26×12-16.5

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
2.15m
Turning Radius (Outside)
4.85m
