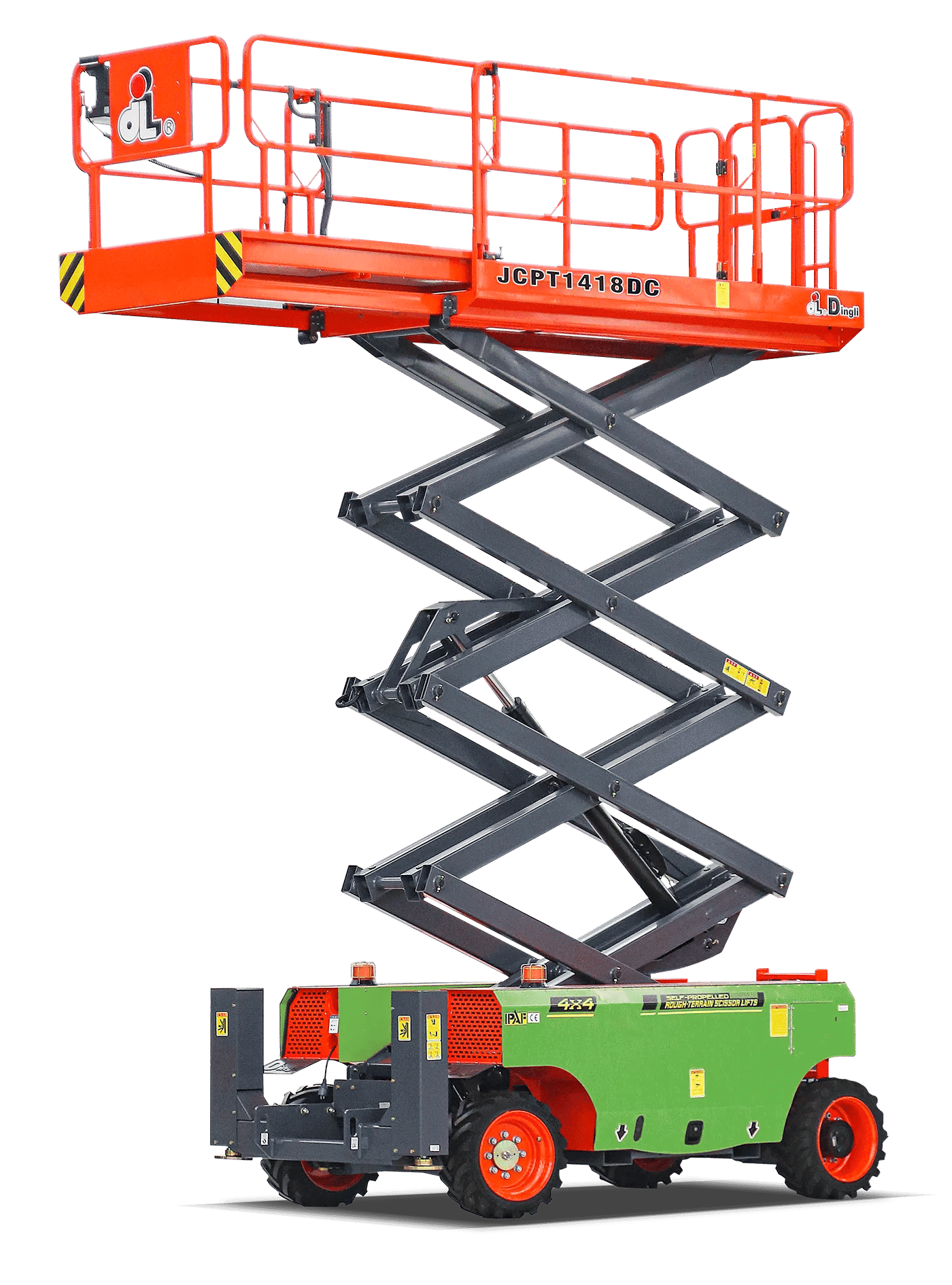

Dingli JCPT1418DC Scissor Lift Specifications

dingli

The Dingli JCPT1418DC Scissor Lift is a high-performance, zero-emission aerial platform engineered for construction, maintenance, and installation tasks in environmentally sensitive and demanding conditions. With a load capacity of 363kg and the ability to drive at full height, it delivers outstanding efficiency and stability for elevated work. The lift features a large one-key extension deck that can be adjusted and locked at any position, offering increased reach and flexibility. Its automatic self-levelling system ensures safety on uneven surfaces, while 4-wheel drive and steering provide superior maneuverability. Powered by a 48V/320Ah high-capacity battery pack, the JCPT1418DC operates silently with zero emissions, making it ideal for both indoor and outdoor use. Compact, powerful, and eco-friendly, this lift is the perfect solution for precise, high-access industrial applications.

Dingli JCPT1418DC Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
48V/450Ah
Charger Output / Type
48V/60A

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
40%
Lift Time (Loaded)
70sec
Lower Time (Loaded)
55sec
Max Travel Speed (Stowed)
6.0km/h
Travel Speed (Raised)
1.0km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
227kg
Max Platform Capacity
680kg
Max Platform Occupants (In/Out)
7persons
Operating Weight
8.2Ton

DIMENSIONS

Ground Clearance (Stowed)
0.30m
Overall Height (Rails Lowered)
2.28m
Overall Height (Rails Raised)
2.98m
Overall Length (Stowed)
3.98m
Overall Width
2.29m
Wheelbase
2.86m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
130L

PLATFORM & REACH PERFORMANCE

Max Platform Height
13.00m
Max Working Height
15.00m
Platform Extension Length
1.43m
Platform Size (L×W)
3.98×1.83m

SAFETY & FEATURES

Max Side Slope (Lateral)
2
Max Slope (Fore/Aft)
3
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes
Tires
33×12-20

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
2.35m
Turning Radius (Outside)
5.20m
