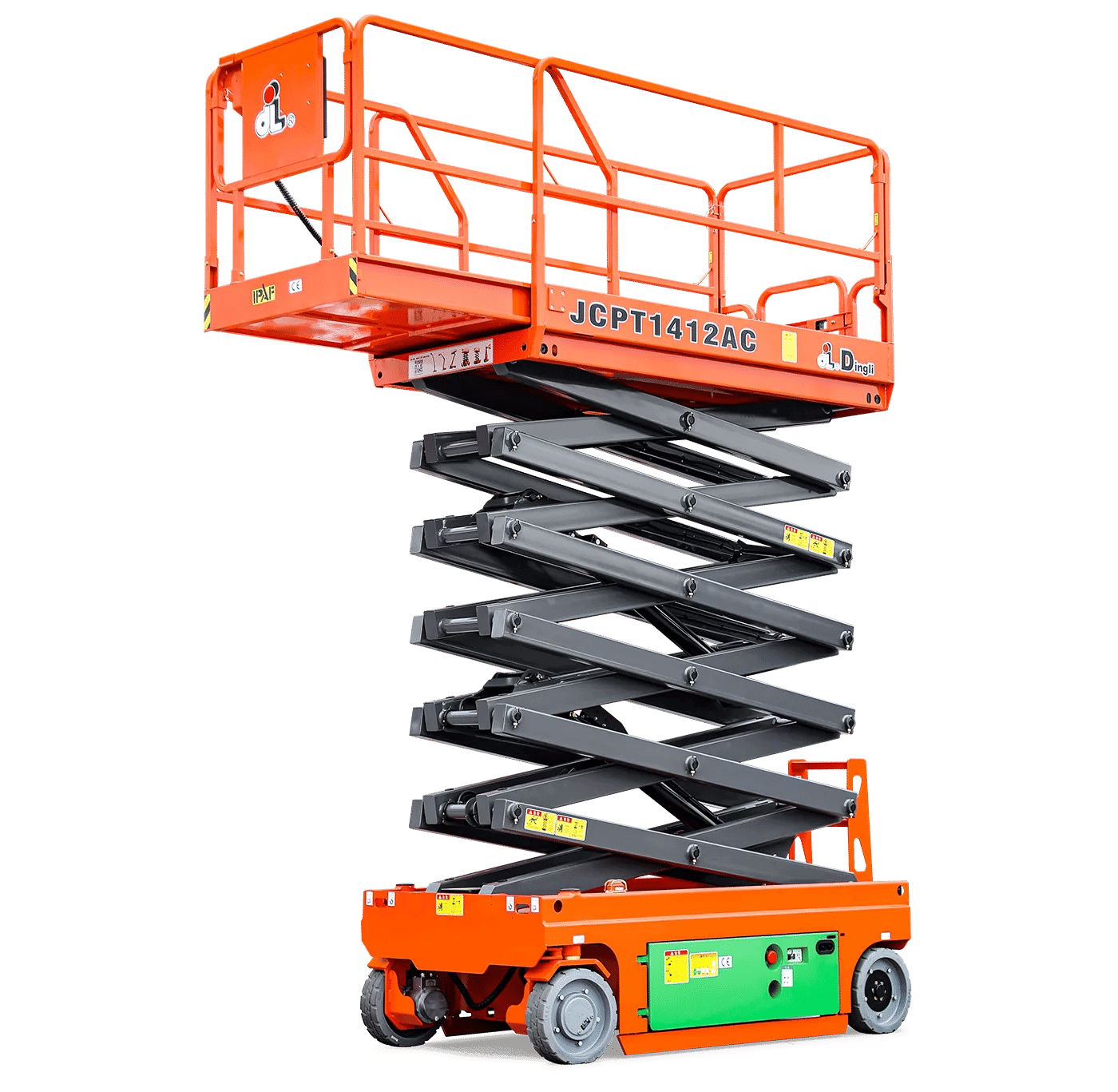

Dingli JCPT1412AC Compact Scissor Lift Specifications

dingli

The Dingli JCPT1412AC Compact Scissor Lift is a high-efficiency, battery-powered access solution built for indoor maintenance and industrial tasks in space-restricted environments. Featuring a fully sealed AC drive and lift system, it ensures maintenance-free operation, improved safety, and reliable performance even in demanding conditions. Its unidirectional extension platform allows for easy maneuvering and precise access to work points, while the automatic pothole protection system adds an extra layer of safety on uneven surfaces. The automatic fault code display helps reduce downtime by enabling quick diagnostics. Powered by a 24V/240Ah high-capacity battery pack, the JCPT1412AC offers long operational endurance with zero emissions and low noise output, making it ideal for eco-conscious work environments. Compact, robust, and easy to use, it’s perfect for professionals needing clean, safe, and efficient elevation access.

Dingli JCPT1412AC Compact Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V/240Ah
Charger Output / Type
24V/30A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
55sec
Lower Time (Loaded)
40sec
Max Travel Speed (Stowed)
5.0km/h
Travel Speed (Raised)
0.8km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
320kg
Max Platform Occupants (In/Out)
3/0persons
Operating Weight
2.99Ton

DIMENSIONS

Ground Clearance (Stowed)
0.1m
Overall Height (Rails Lowered)
2.09m
Overall Height (Rails Raised)
2.62m
Overall Length (Stowed)
2.48m
Overall Width
1.19m
Wheelbase
1.87m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
20L

PLATFORM & REACH PERFORMANCE

Max Platform Height
11.8m
Max Working Height
13.8m
Platform Extension Length
0.9m
Platform Size (L×W)
2.27×1.12m

SAFETY & FEATURES

Max Side Slope (Lateral)
X-1.5°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
φ381×127mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.0m
Turning Radius (Outside)
2.2m
