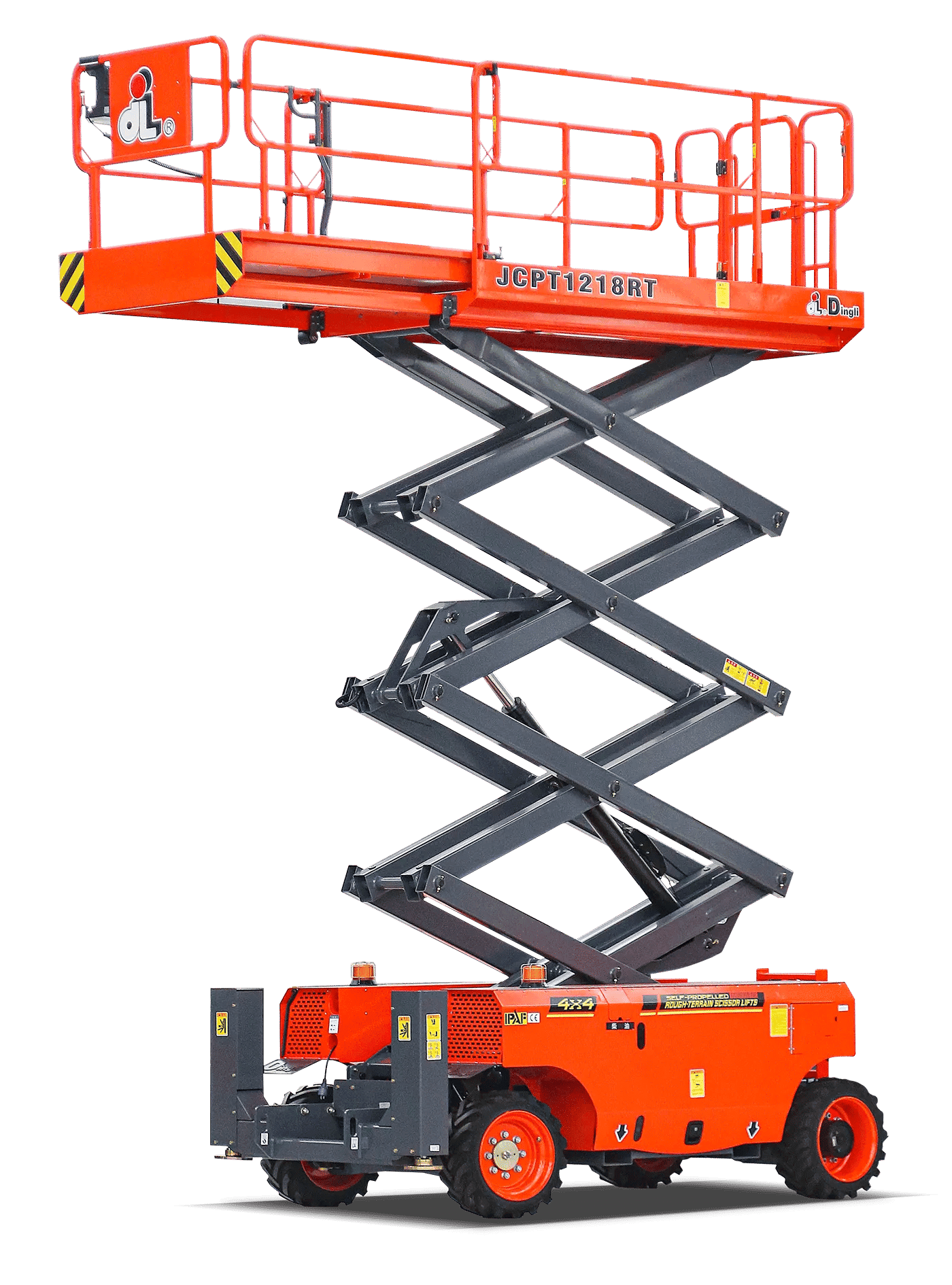

Dingli JCPT1218RT Scissor Lift Specifications

dingli

The Dingli JCPT1218RT Scissor Lift is a powerful and versatile access platform designed for demanding outdoor and industrial applications. With its strong off-road capability and 40% gradeability, it ensures reliable performance on uneven terrains. The machine features a large extension working platform and folding guardrails, making it ideal for a wide working range with added safety. Its automatic hydraulic leveling outriggers provide stability even on sloped surfaces, while 4-wheel drive and steering offer superior maneuverability in tight job sites. Powered by an energy-efficient 18.2 kW low power engine, the JCPT1218RT minimizes fuel consumption without compromising productivity. Compact yet rugged, this scissor lift is an excellent solution for construction, facility maintenance, and heavy-duty repair tasks where mobility and stability are critical.

Dingli JCPT1218RT Scissor Lift Specifications

TRANSMISSION & PERFORMANCE

Drive Type
Four-Wheel Drive
Gradeability
40%
Lift Time (Loaded)
38sec
Lower Time (Loaded)
46sec
Max Travel Speed (Stowed)
5.0km/h
Travel Speed (Raised)
0.45km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
136kg
Max Platform Capacity
454kg
Max Platform Occupants (In/Out)
4/2persons
Operating Weight
4.3Ton

DIMENSIONS

Ground Clearance (Stowed)
0.24m
Overall Height (Rails Lowered)
1.82m
Overall Height (Rails Raised)
2.59m
Overall Length (Stowed)
3.19m
Overall Width
1.76m
Wheelbase
2.29m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
71L

PLATFORM & REACH PERFORMANCE

Max Platform Height
10.0m
Max Working Height
12.0m
Platform Extension Length
1.43m
Platform Size (L×W)
2.88×1.52m

SAFETY & FEATURES

Max Side Slope (Lateral)
X-1.5°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes
Tires
26×12-16.5

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
2.15m
Turning Radius (Outside)
4.85m
